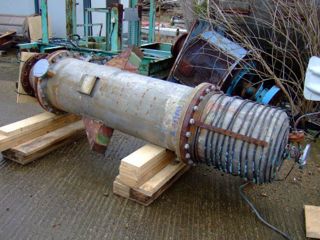

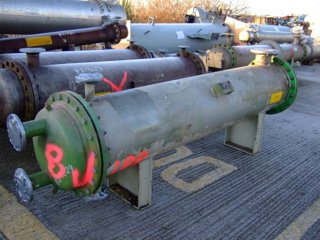

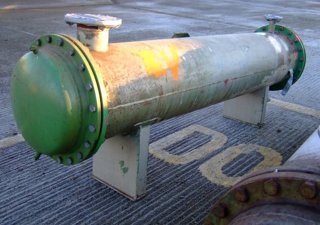

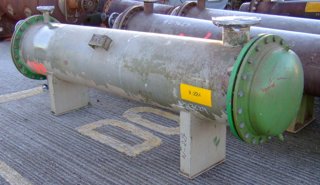

9.7 m² (104 ft²) Stainless Steel Austentic Shell and Tube Heat Exchanger For Sale IPP# 217811

IPP# 217811, 9.7 m² (104 ft²) Stainless Steel Austentic Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Stainless Steel Austentic

Manufacturer:

Dynamite Nobel

Heat Transfer Surface Area:

9.7 m² (104 ft²)

Orientation:

Horizontal

Shell Pressure:

30 bar (435.1 psi)

Shell Temperature:

200 °C (392 °F)

Shell Material:

Titanium

Tube Pressure:

6 bar (87 psi)

Tube Temperature:

100 °C (212 °F)

Tube Material:

Stainless Steel Austentic

Shell Diameter:

260 mm (10.2 in)

Head Material:

Stainless Steel Austentic

Length:

3,050 mm (120.1 in)

Tube Number:

Tube Diameter:

25 mm (0.98 in)

Tube Length:

2,496 mm (98.3 in)

Tube Thickness:

2 mm (0.08 in)

Nozzle Schedule:

- Openings tube side: each head with 1-50mm - Openings shell side: 2-100mm, 2-50mm

Additional Info:

inclined heat exchanger pressure tube side 6 bar @ 100 degrees C (55 liter), shell 30 bar @ 200 degrees C (66 liter) (2) bonnet heads (3) internal baffle plates TUV certified
