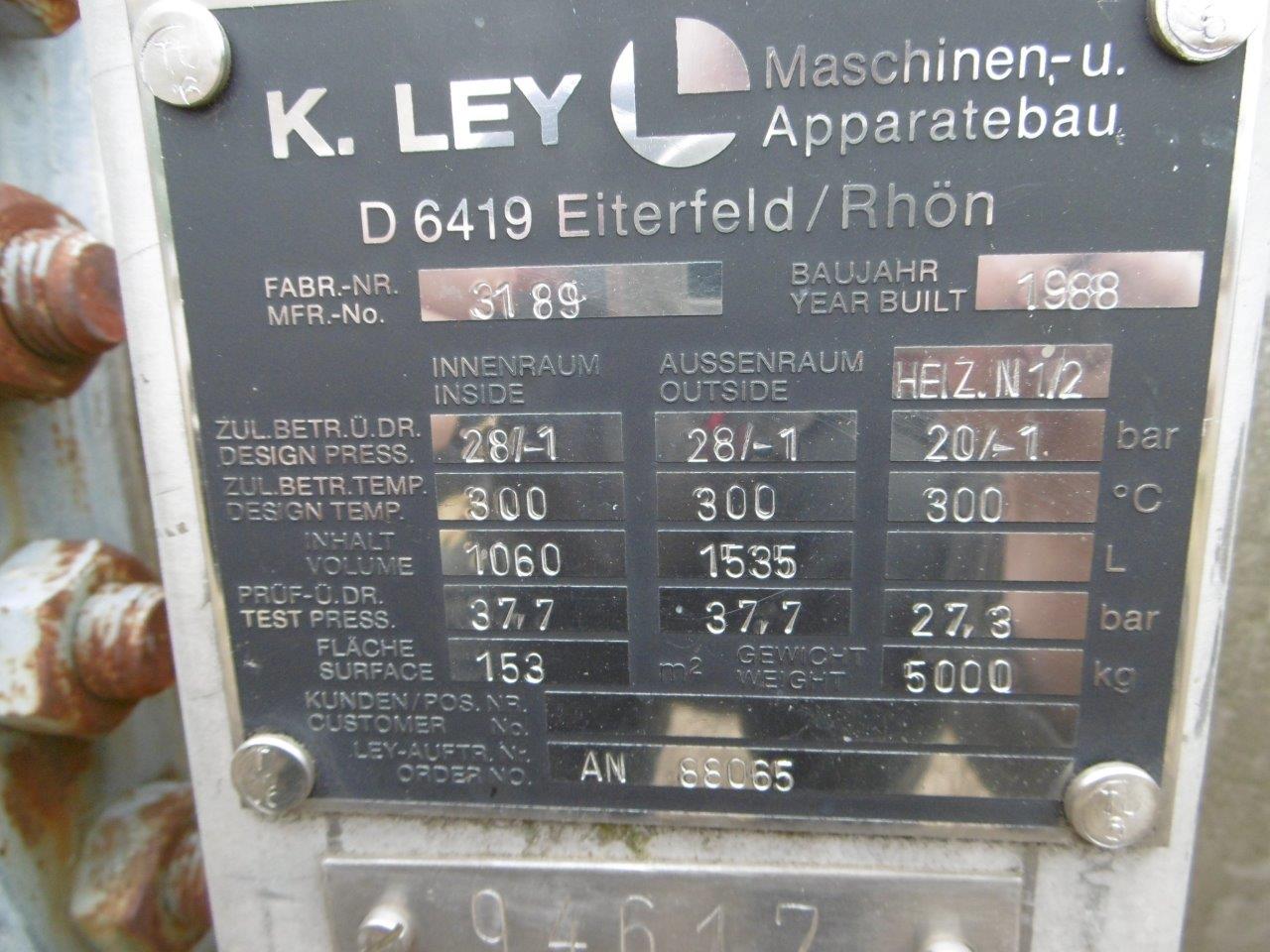

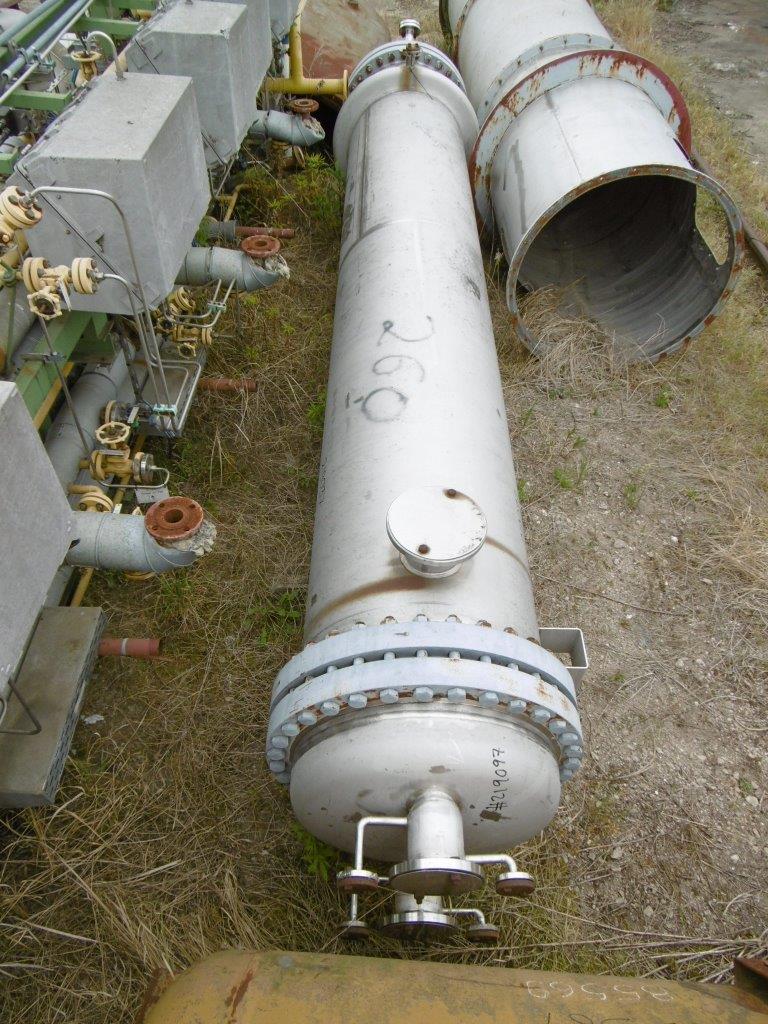

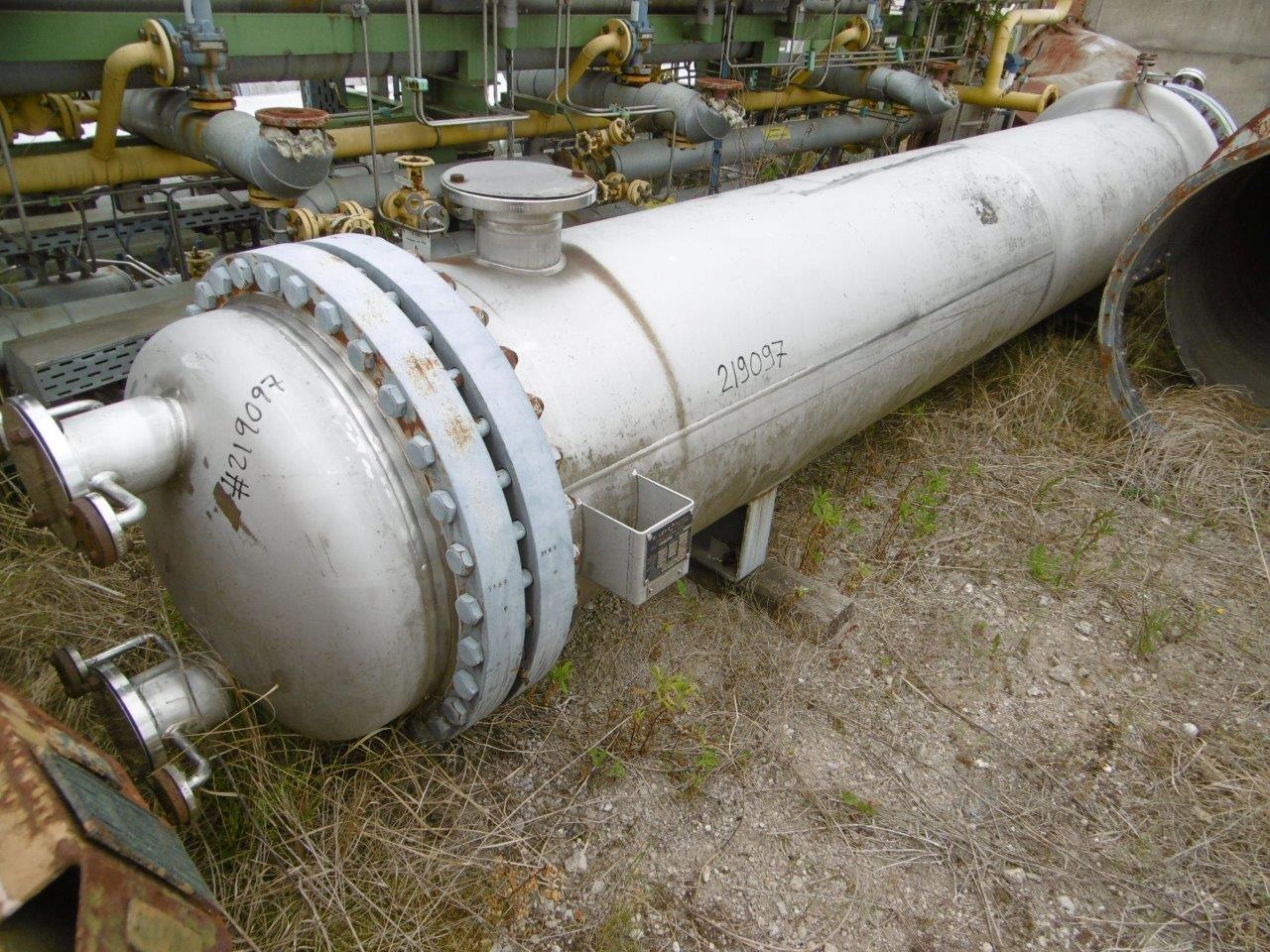

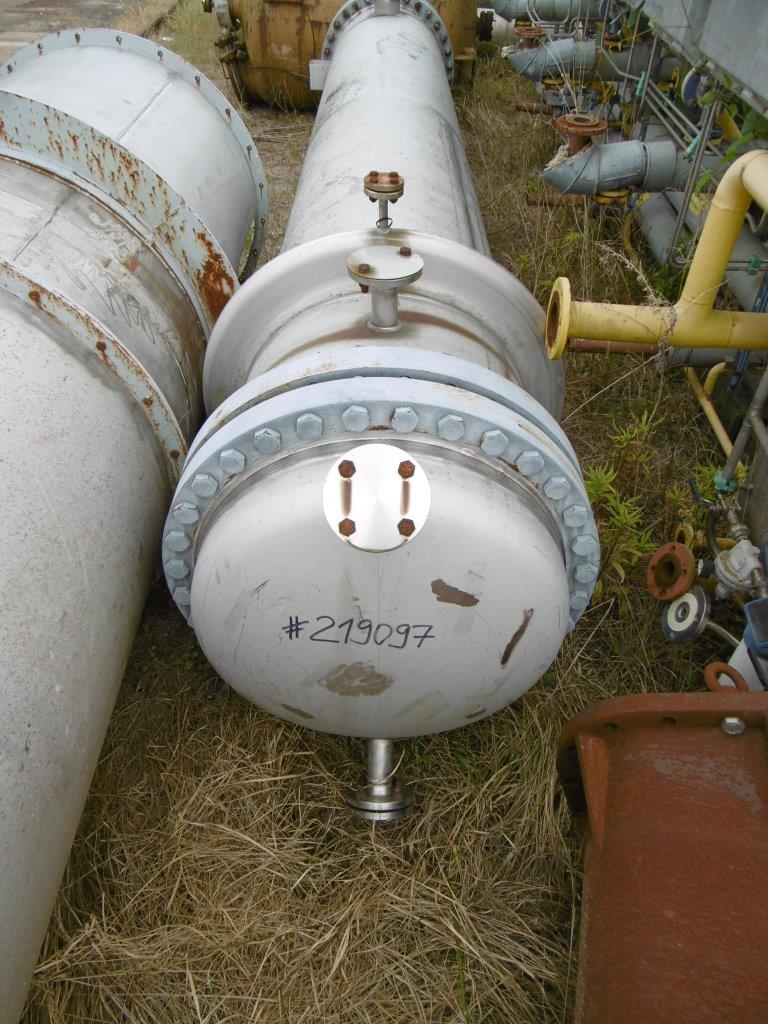

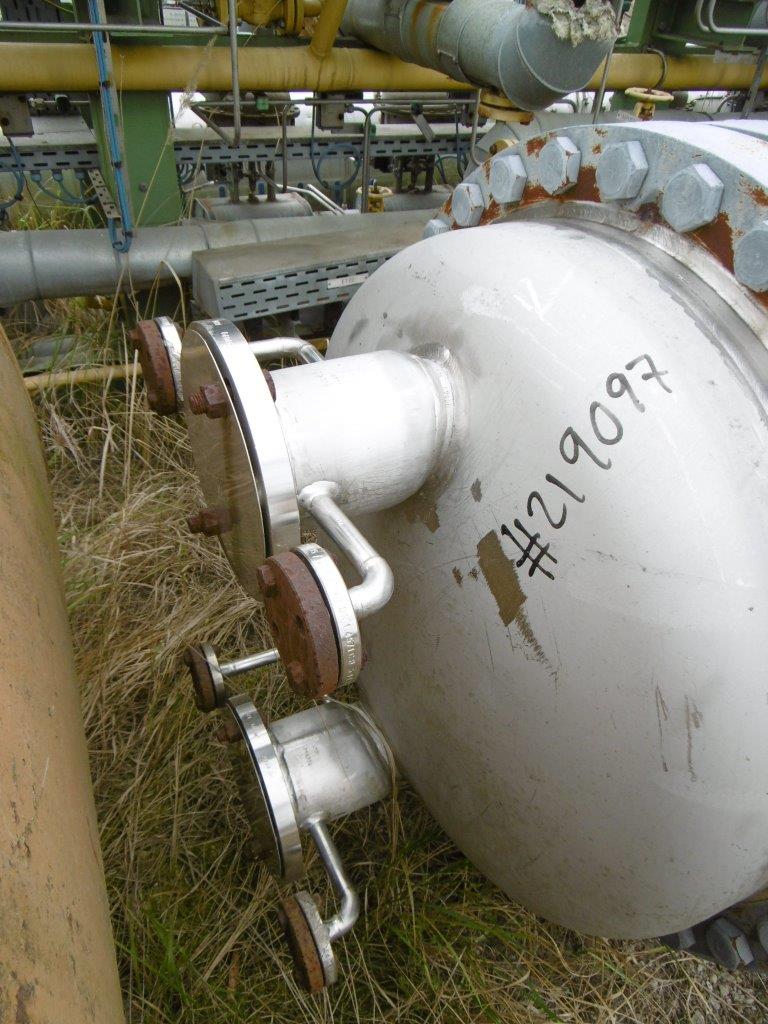

Shell and Tube Heat Exchanger 153 m² (1,650 ft²) Stainless Steel Austenitic For Sale - IPP# 219097

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Horizontal

• Heads: Without heads
• Pressure tubeside: -1/6 bar @ 300 deg C (203 liter)
• Pressure shell: -1/6 bar @ 300 deg C (310 liter)
• with expansion joint

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.3 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell openings: 1-250mm, 2-80mm, 1-15mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Horizontal

• Pressure:
  • Tubeside: -1/6 bar @ 300 deg C (203 liter)
  • Shell side: -1/6 bar @ 300 deg C (310 liter) Multi-pass shell with expansion joint.

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel Austenitic. Length: 3,000 mm (118.1 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2.5 mm (0.1 in). Nozzle Schedule: - Openings: 2-15mm - Openings: - Shell: 2-80 mm, 1-250, 1-300 - Head 1: 2-150mm - Head 2: No openings.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Vertical

• Heads: Without heads
• Pressure (tube side): -1/6 bar @ -10/300 deg C
• Volume (tube side): 145 liter
• Pressure (shell side): -1/6 bar @ -10/300 deg C
• Volume (shell side): 275 liter

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings shell: 3-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 183 m² (1,950 ft²)

Orientation: Vertical

no heads single pass

Shell Pressure: 6 bar (87 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 1,200 mm (47.2 in). Length: 2,500 mm (98.4 in). Tube Number: 944. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: - Shell openings: 1-550mm, 3-200mm.
