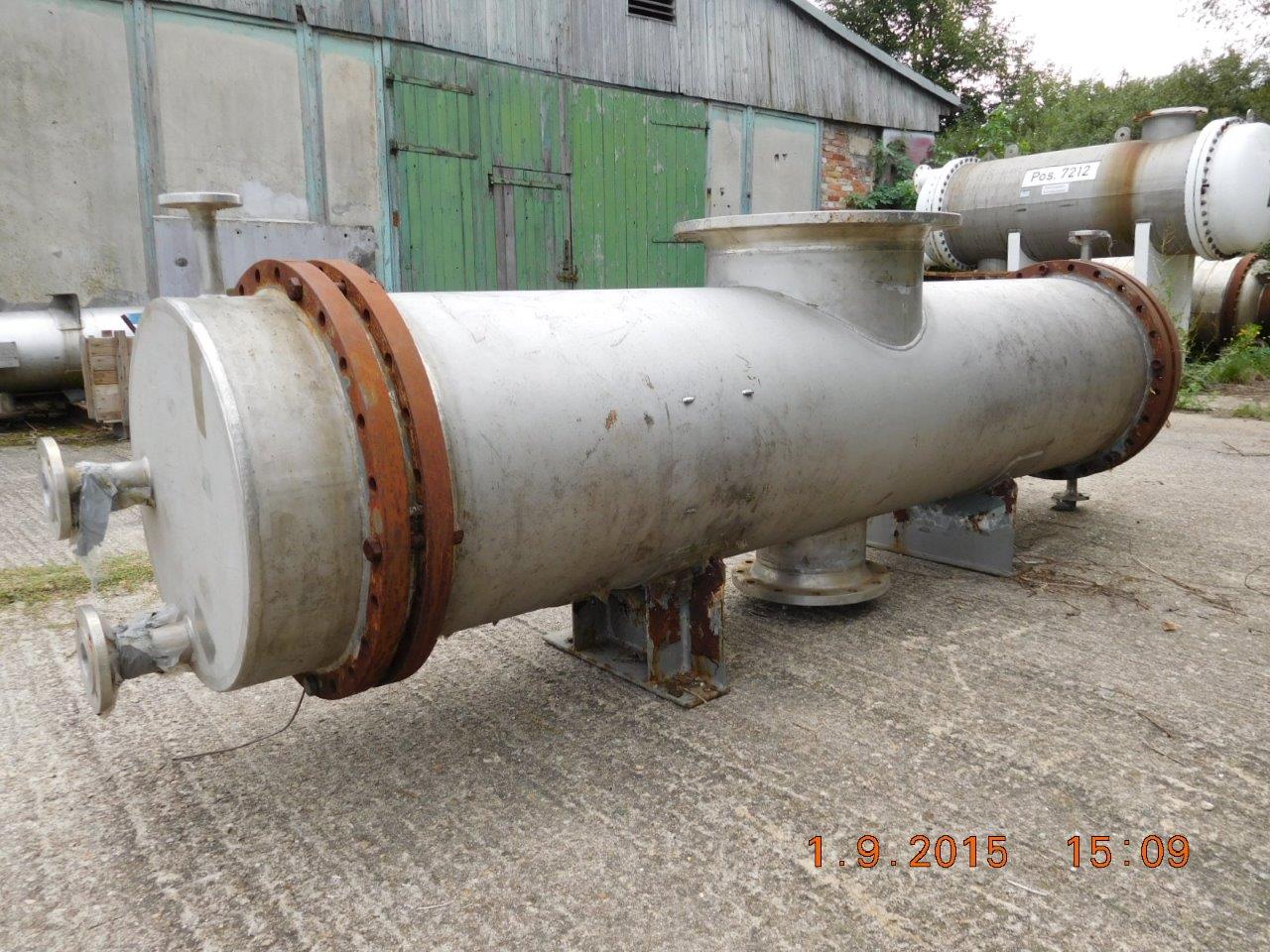

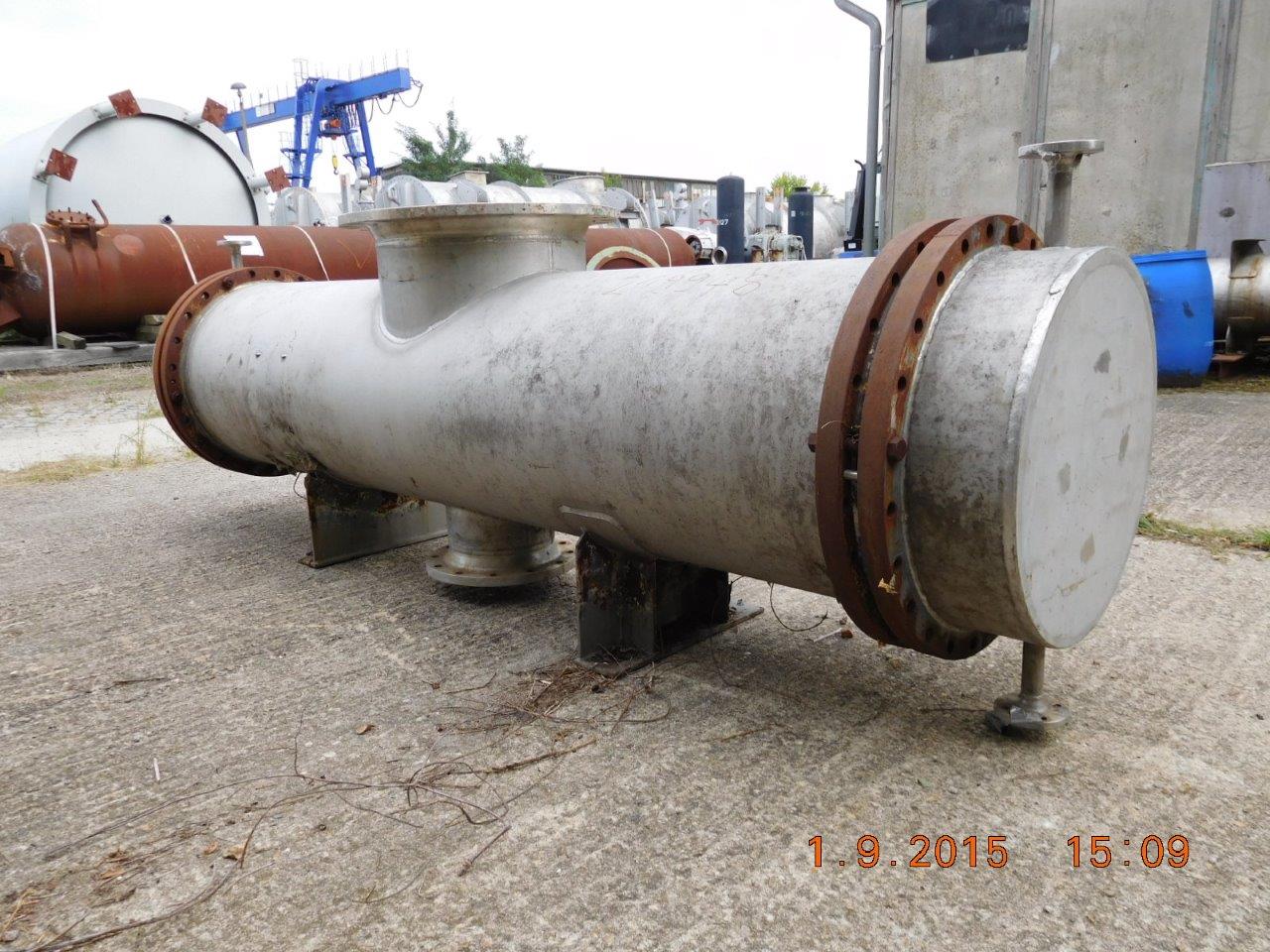

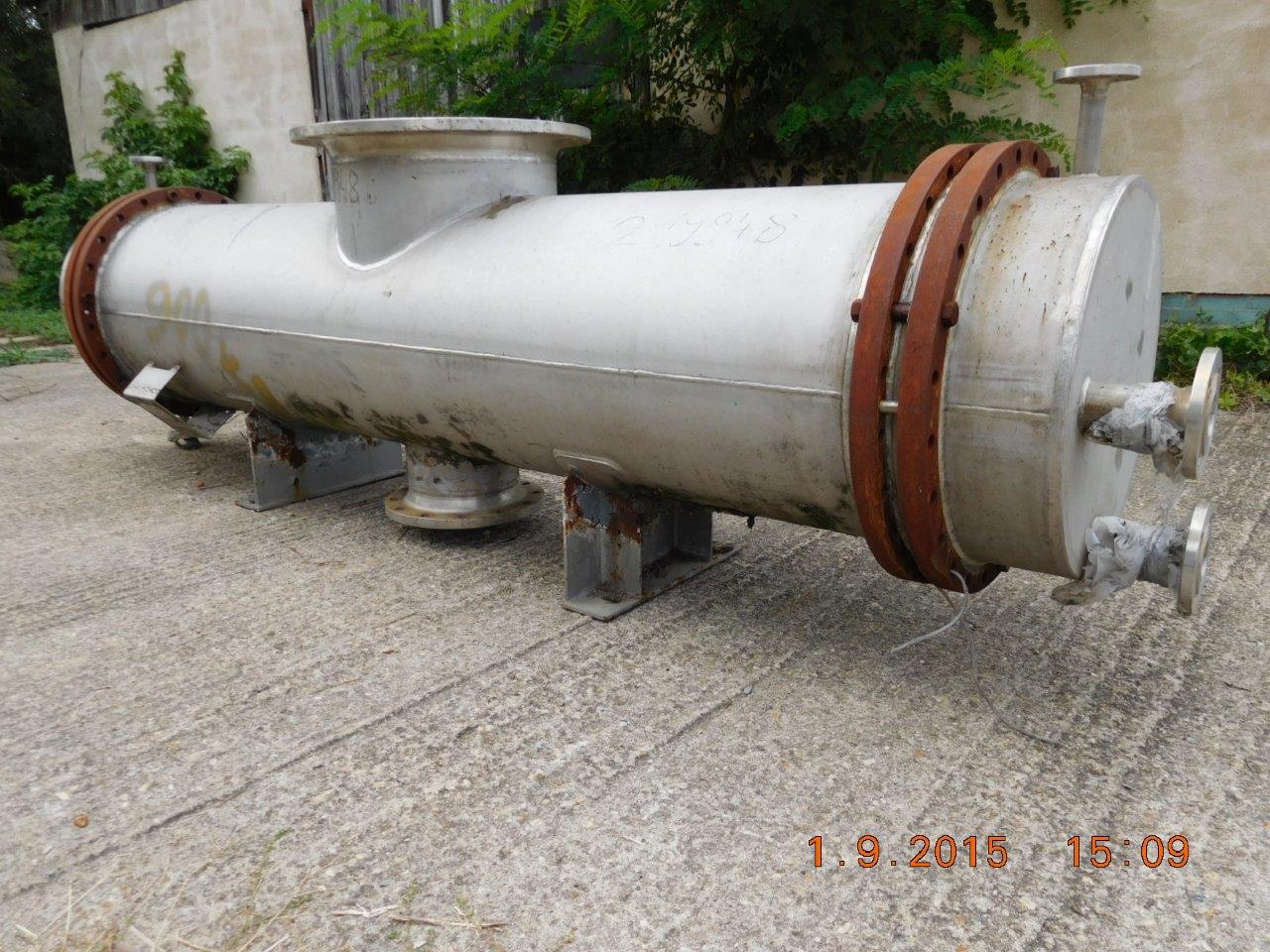

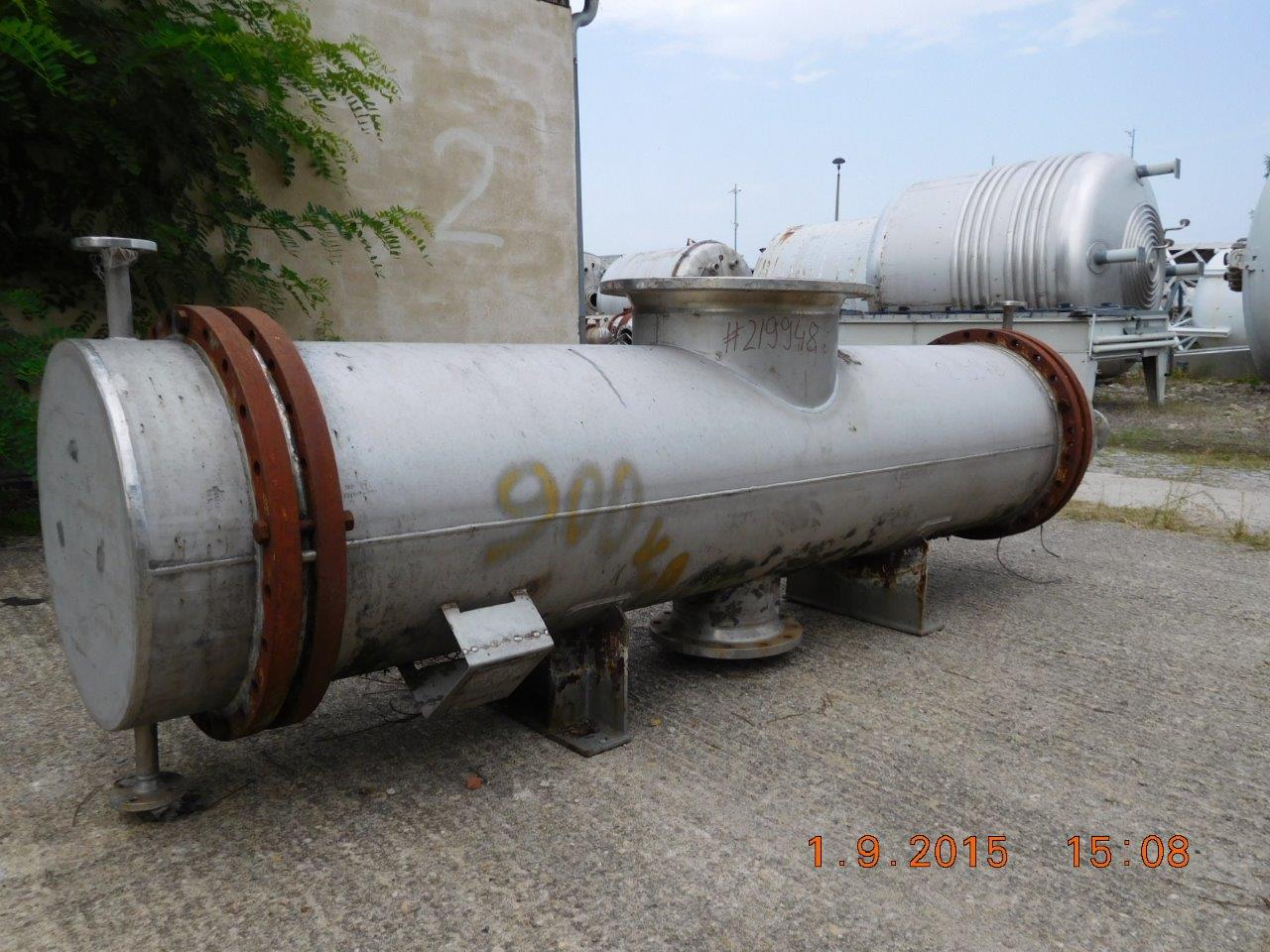

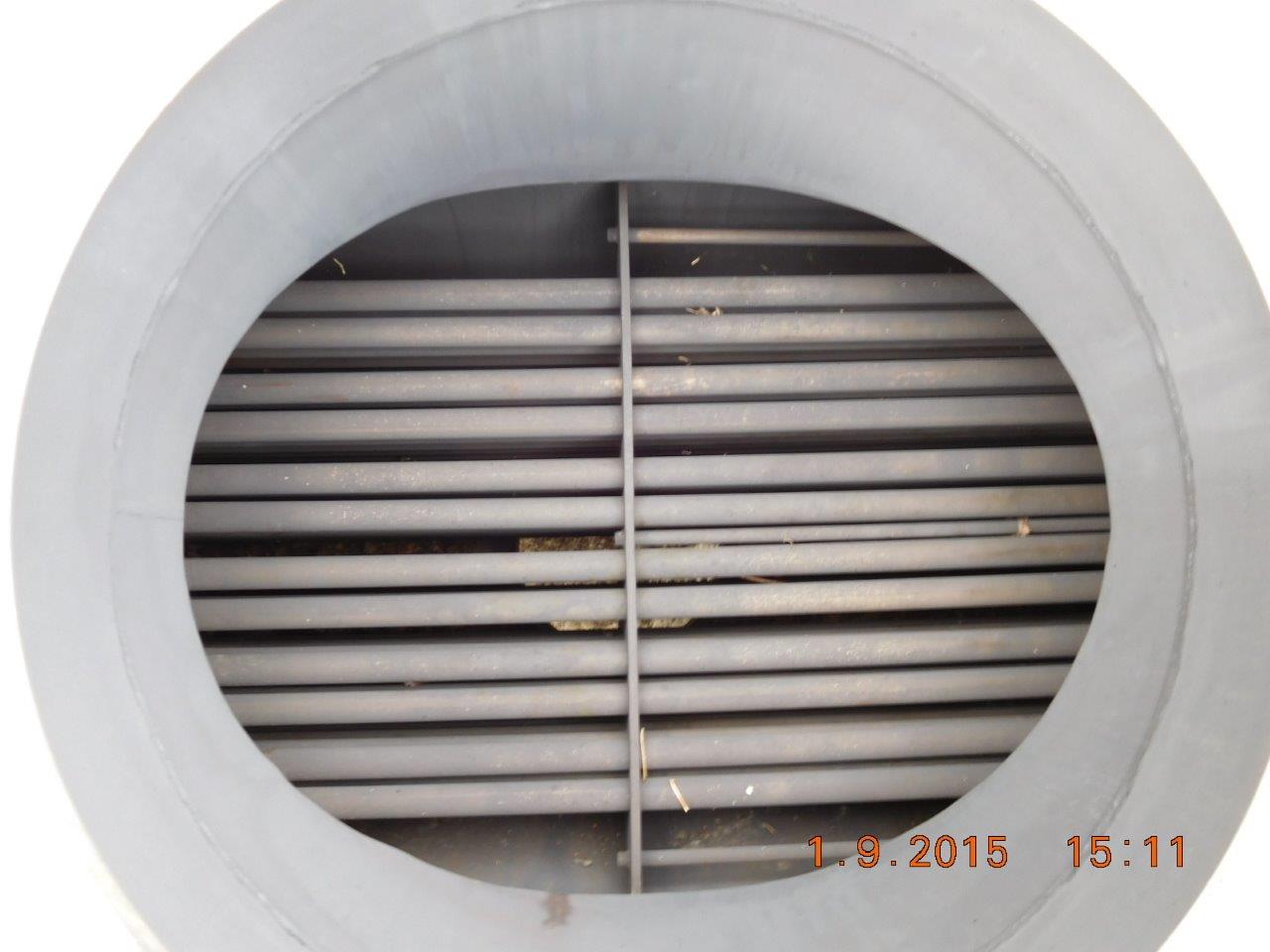

Shell and Tube Heat Exchanger 15 m² (161.5 ft²) Stainless Steel Austenitic For Sale - IPP# 219948

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Pitton Apparatebau GmbH

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 92.7 m² (998 ft²)

Orientation: Horizontal

shell pressure rated by -1/11.7bar @ -29/260 degrees C ( 1.180 liter ) (1) pass, tube pressure rated by -1/10bar @ -29/204 degrees C ( 530 liter ) (4)passes

Shell Pressure: 11.7 bar (169.7 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 622 mm (24.5 in). Head Material: Stainless Steel 304. Length: 6,050 mm (237.3 in). Shell-side Passes: 1. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 254. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,100 mm (240.2 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: Shell (2) DN150 / tube (2) DN100.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Greub

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 30 m² (322.9 ft²)

Orientation: Horizontal

1.4435 outer tube, double pipe 6 pass design tube side -1/8 bar @ -30 to 200 degrees C, volume 30; rated shell side -1/2 bar @ -30 to 200 degrees C, volume 185 liter. outer tube is 114.3 mm diameter. Heads are 144 mm diameter. Design to sit in saddles, no saddles with unit.

Shell Pressure: 2 bar (29 psi). Shell Temperature: 200 °C (392 °F). Tube Pressure: 8 bar (116 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel Other. Tube Type: U-Tube. Tube Number: 6. Tube Diameter: 40 mm (1.57 in). Tube Length: 2,500 mm (97.8 in). Nozzle Schedule: - Openings: - (2) 40 mm tube side - (2) 100 mm outer tube.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 35.5 m² (382.1 ft²)

Orientation: Horizontal

1-s/steel bonnet head (1-head missing) 2-c/steel feet

Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 20 bar (290.1 psi). Tube Temperature: 185 °C (365 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 300 mm (11.8 in). Head Material: Stainless Steel Austenitic. Tube Number: 91. Tube Diameter: 25 mm (0.98 in). Tube Length: 4,950 mm (195.7 in). Nozzle Schedule: openings: 1-head with 1-100mm, shell: 2-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Horizontal

• Heads: Without heads
• Pressure tubeside: -1/6 bar @ 300 deg C (203 liter)
• Pressure shell: -1/6 bar @ 300 deg C (310 liter)
• with expansion joint

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.3 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell openings: 1-250mm, 2-80mm, 1-15mm.
