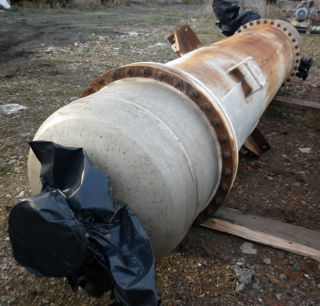

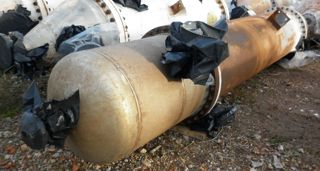

Shell and Tube Heat Exchanger 100 m² (1,100 ft²) Stainless Steel 316 For Sale - IPP# 220353

Type: Heat Exchanger

Subtype: Shell and Tube

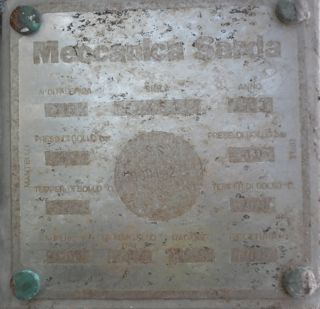

Manufacturer: Meccanica Sardia

Model: BEM 695 x 3000

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 100 m² (1,100 ft²)

Orientation: Vertical

pressure shell side 5 bar @ -10/+120 degrees C ( 670 liter), tube side 5 bar + full vacuum @ -10/+150 degrees C (730 liters) (7) baffles in the shell. (2) 316L stainless steel bolted dished heads.

Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 695 mm (27.4 in). Head Material: Stainless Steel 316. Length: 3,000 mm (118.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 533. Tube Diameter: 20 mm (0.79 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings include: One top head (1) 6", Bottom head (1) 3" center, (1) 6" in side of head; shell (2) 6". Capacity: 730 L (192.8 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Cust-O-Fab

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 556 m² (6,000 ft²)

Orientation: Horizontal

• 1248 straight "Lo FIN" finned tubes
• 0.75" diameter x 0.065" under fin x approx. 10' long
• Four 4" auxiliary connections
• Four 1" vents/drains
• Twelve 3/4" NPT connections.

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Carbon Steel. Length: 4,150 mm (163 in). Tube Number: 1,248. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,050 mm (120 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzle schedule as follows: Shell inlet One 36", shell outlet one 4", channel inlet/outlet are two 6".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: American Standard

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 3.2 m² (34 ft²)

Orientation: Horizontal

• Shell length: 3'

Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 65.6 °C (150 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Shell Diameter: 152.4 mm (6 in). Length: 914 mm (36 in). Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Ketema

Model: I-R-2/BEU/

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 7.9 m² (85 ft²)

Orientation: Horizontal

Size is 10-A-108 Shell side MAWP is 150 psi at 400 degrees F. MDMT; is -20 degrees at 150 psi

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: -28.9 °C (-20 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 3,050 mm (120 in). Tube Type: U-Tube. Tube Number: 57. Tube Diameter: 15.7 mm (0.62 in). Tube Thickness: 1.2 mm (0.05 in).
