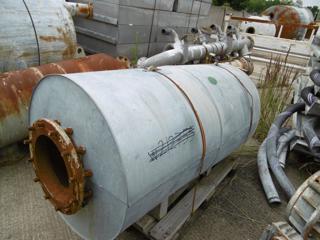

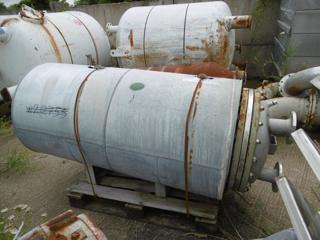

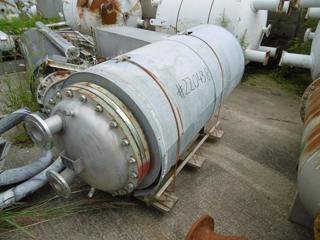

pressure tubeside 6 bar @ 80 deg C (150 liter), shell side 6 bar @ 80 deg C (260 lliter) (1) stainless steel dished head
Type: Heat Exchanger
Subtype: Shell and Tube

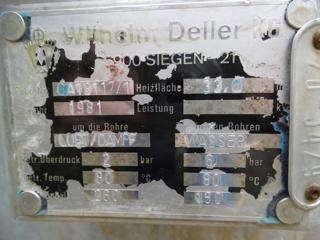

Manufacturer: Wilhelm Deller KG
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 33.8 m² (363.8 ft²)
Orientation: Horizontal
pressure tubeside 6 bar @ 80 deg C (150 liter), shell side 6 bar @ 80 deg C (260 lliter) (1) stainless steel dished head,

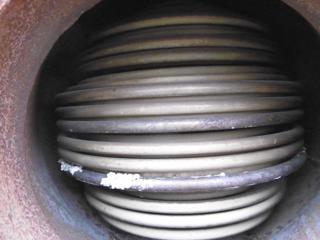

Shell Pressure: 6 bar (87 psi). Shell Temperature: 80 °C (176 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 80 °C (176 °F). Tube Material: Stainless Steel Other. Vacuum: Yes. Head Material: Stainless Steel Other. Tube Type: U-Tube. Capacity: 260 L (68.7 gallons).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Wilhelm Deller KG
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 21 m² (226 ft²)
Orientation: Horizontal
pressure tube side -1/+2 bar @ 80 degrees C (102 liter), shell side 6 bar @ 80 degrees C, (131 liter), (211) (2) 321 stainless steel reduction coned heads
Shell Pressure: 6 bar (87 psi). Shell Temperature: 80 °C (176 °F). Shell Material: Carbon Steel. Tube Pressure: 2 bar (29 psi). Tube Temperature: 80 °C (176 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 420 mm (16.5 in). Head Material: Stainless Steel 321. Length: 2,500 mm (98.4 in). Tube-side Passes: 1. Tube Number: 211. Tube Diameter: 16 mm (0.63 in). Tube Length: 1,900 mm (74.2 in). Nozzle Schedule: openings tube side: each head with 1-250mm, shell: 1-250mm, 2-80mm,.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Wilhelm Deller KG
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 21 m² (226 ft²)
Orientation: Horizontal
pressure tube side -1/+2 bar @ 80 degrees C (102 liter), shell side 6 bar @ 80 degrees C, (131 liter) (2) 321 stainless steel reduction coned heads
Shell Pressure: 6 bar (87 psi). Shell Temperature: 80 °C (176 °F). Shell Material: Carbon Steel. Tube Pressure: 2 bar (29 psi). Tube Temperature: 80 °C (176 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 420 mm (16.5 in). Head Material: Stainless Steel 321. Length: 2,500 mm (98.4 in). Tube-side Passes: 1. Tube Number: 211. Tube Diameter: 16 mm (0.63 in). Tube Length: 1,900 mm (74.2 in). Nozzle Schedule: openings tube side: each head with 1-250mm, shell: 1-250mm, 2-80mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Hughes & Anderson
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 195.6 m² (2,100 ft²)
Orientation: Horizontal
Shell Pressure: 1.03 bar (15 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel Other. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 3,950 mm (156 in). Shell-side Passes: 1. Tube-side Passes: 10. Tube Number: 1,100. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Tube nozzles: Two 6" - Shell nozzles: One 16" and one 20".
