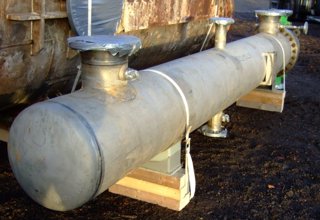

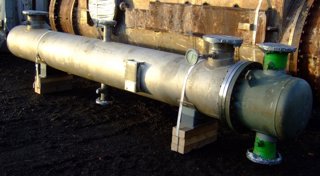

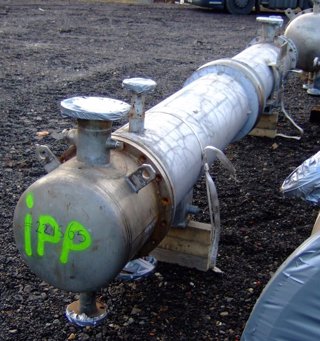

Stainless Steel Other SRI Shell and Tube Heat Exchanger - IPP# 221523

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SRI

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 38 m² (409 ft²)

Orientation: Horizontal

(1) c/steel bonnet head

Shell Pressure: 5.3 bar (76.9 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel Other. Tube Pressure: 8.7 bar (126.2 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 473 mm (18.6 in). Head Material: Carbon Steel. Length: 4,200 mm (165.4 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 110. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,850 mm (152 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: - Openings: - Tubeside: 2-6" - Shell side: 1-4", 1-3".

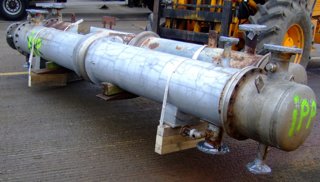

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SRI

Model: 25-BEM-36

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 38 m² (409 ft²)

Orientation: Horizontal

duplex tubesheet Expansion bellows material: 316 s/steel (1.4571) (1) Duplex (1.4462) bonnet head (1) Duplex (1.4462) coned head

Shell Pressure: 8.7 bar (126.2 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Carbon Steel. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel Other. Length: 4,500 mm (176.7 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 177. Tube Diameter: 19 mm (0.75 in). Tube Length: 3,650 mm (144 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: - Tubeside openings: Coned head with 1-10", 2-2", bonnet head with 1-4", 1-2" - Shell side openings: 2-4", 1-2".

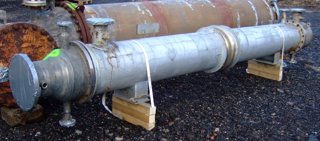

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SRI

Model: 25-BEM-36

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 38 m² (409 ft²)

Orientation: Horizontal

duplex tubesheet

• Expansion bellows: 316 s/steel (1.4571) (1) Duplex (1.4462) bonnet head, (1) Duplex (1.4462) coned head

Shell Pressure: 8.7 bar (126.2 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Carbon Steel. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel Other. Length: 4,500 mm (176.7 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 177. Tube Diameter: 19 mm (0.75 in). Tube Length: 3,650 mm (144 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: - Openings: Tubeside - coned head with 1-10", 2-2", bonnet head with 1-4", 1-2"; Shell side - 2-4", 1-2".

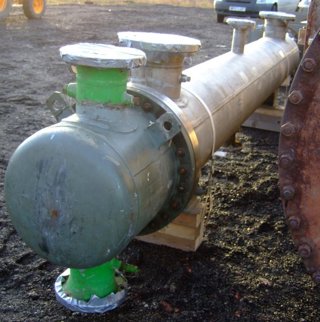

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SRI

Model: AEM

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25.2 m² (271.3 ft²)

Orientation: Horizontal

(1) c/steel channel head

Shell Pressure: 8.7 bar (126.2 psi). Shell Temperature: 210 °C (410 °F). Shell Material: Stainless Steel Other. Tube Pressure: 12.8 bar (185.6 psi). Tube Temperature: 210 °C (410 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 660 mm (26 in). Head Material: Carbon Steel. Length: 3,100 mm (123 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: U-Tube. Tube Number: 80. Tube Diameter: 19.3 mm (0.76 in). Tube Length: 2,600 mm (102.4 in). Nozzle Schedule: - Head openings: tubeside - 2-2", shell side - 1-6", 1-3", 2-2", 1-1 1/2".
