Stainless Steel Other Roestvrystaal Shell and Tube Heat Exchanger - IPP# 221536

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: BV Special

Condition: Used

Material: Duplex

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Orientation: Horizontal

Type: Duplex tube heat exchanger (2) duplex (SAF 2205, 1.4462) dished heads

Shell Pressure: 8.5 bar (123.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Carbon Steel. Tube Pressure: 10.5 bar (152.3 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 324 mm (12.8 in). Head Material: Stainless Steel Other. Length: 3,500 mm (137.8 in). Tube Number: 76. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,450 mm (95.7 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: - Head openings: - Tubeside: (1) head with 2-2", (1) head with none - Shell side: 1-2", 1 1/2".

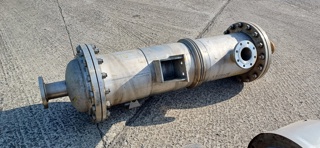

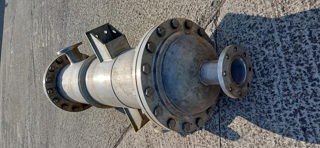

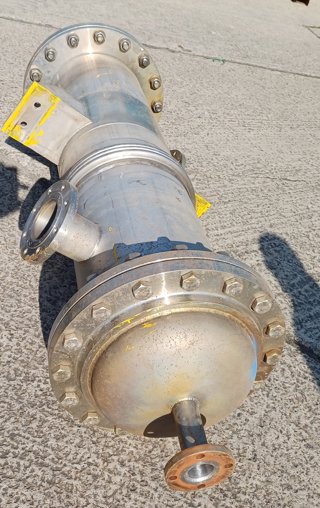

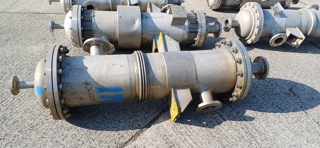

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: HRS Heat Exchangers S.L.U.

Model: HRS KH196. 406/19 1,5 316L/DuplexS

Condition: Used

Material: Duplex

Heat Transfer Surface Area: 17 m² (183 ft²)

Orientation: Vertical

shell with expansion bellows, 2150mm overall length

Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 100 °C (212 °F). Shell Material: Duplex. Tube Pressure: 10 bar (145 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Duplex. Tubesheet Material: Duplex. Vacuum: Yes. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel 316L. Length: 1,500 mm (59.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,500 mm (59.1 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: top head with 1-100mm, bottom head with 1-50mm, shell with 2-100mm,.
