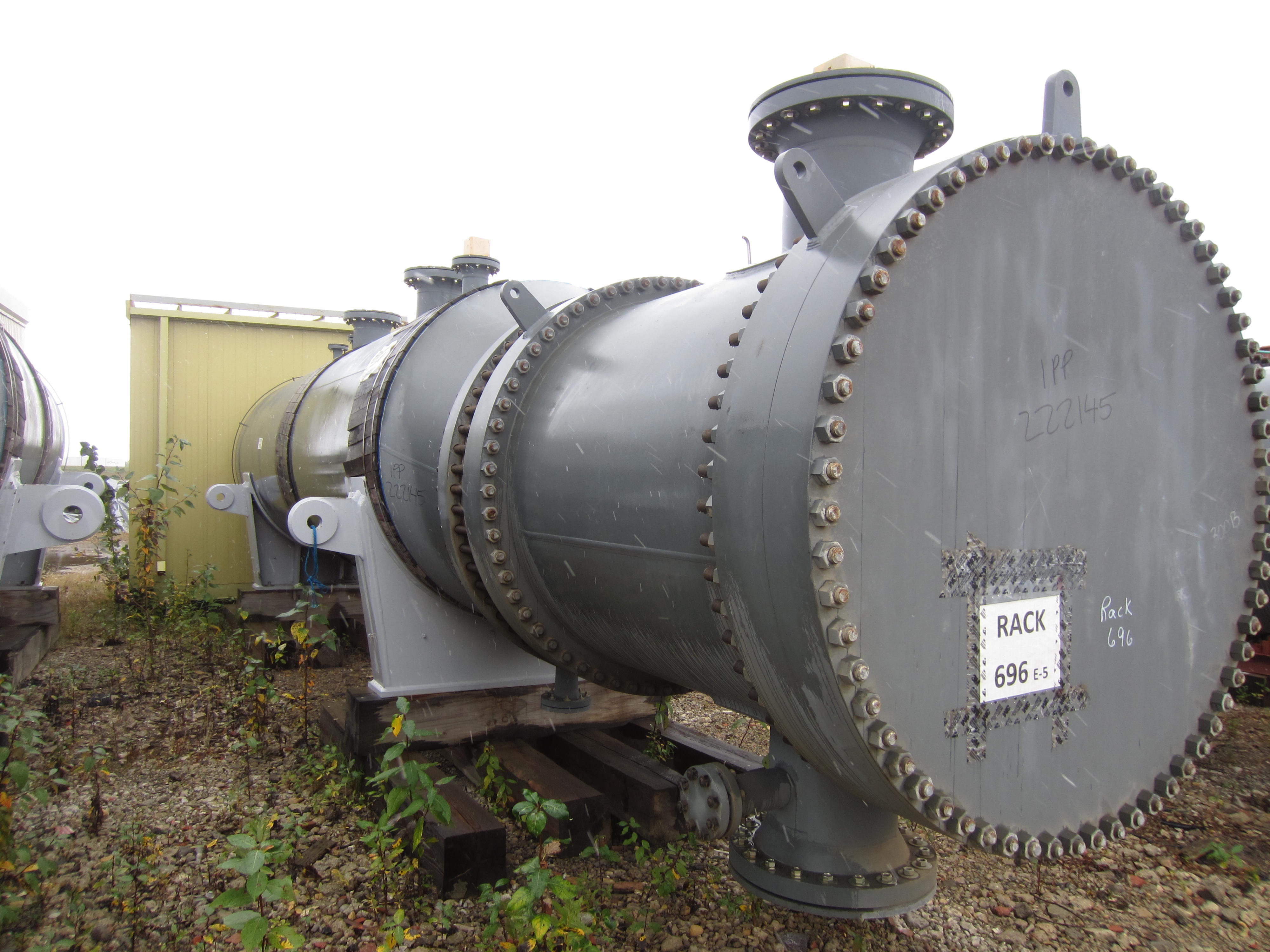

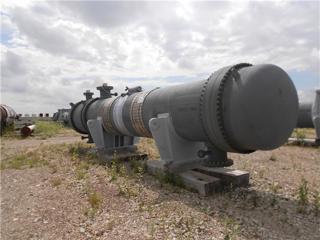

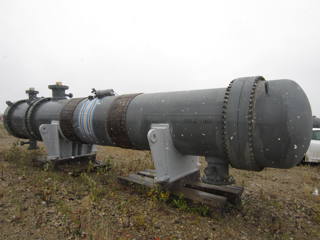

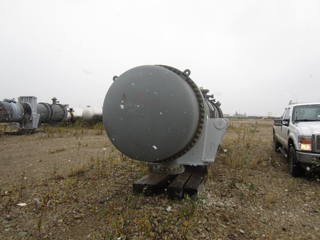

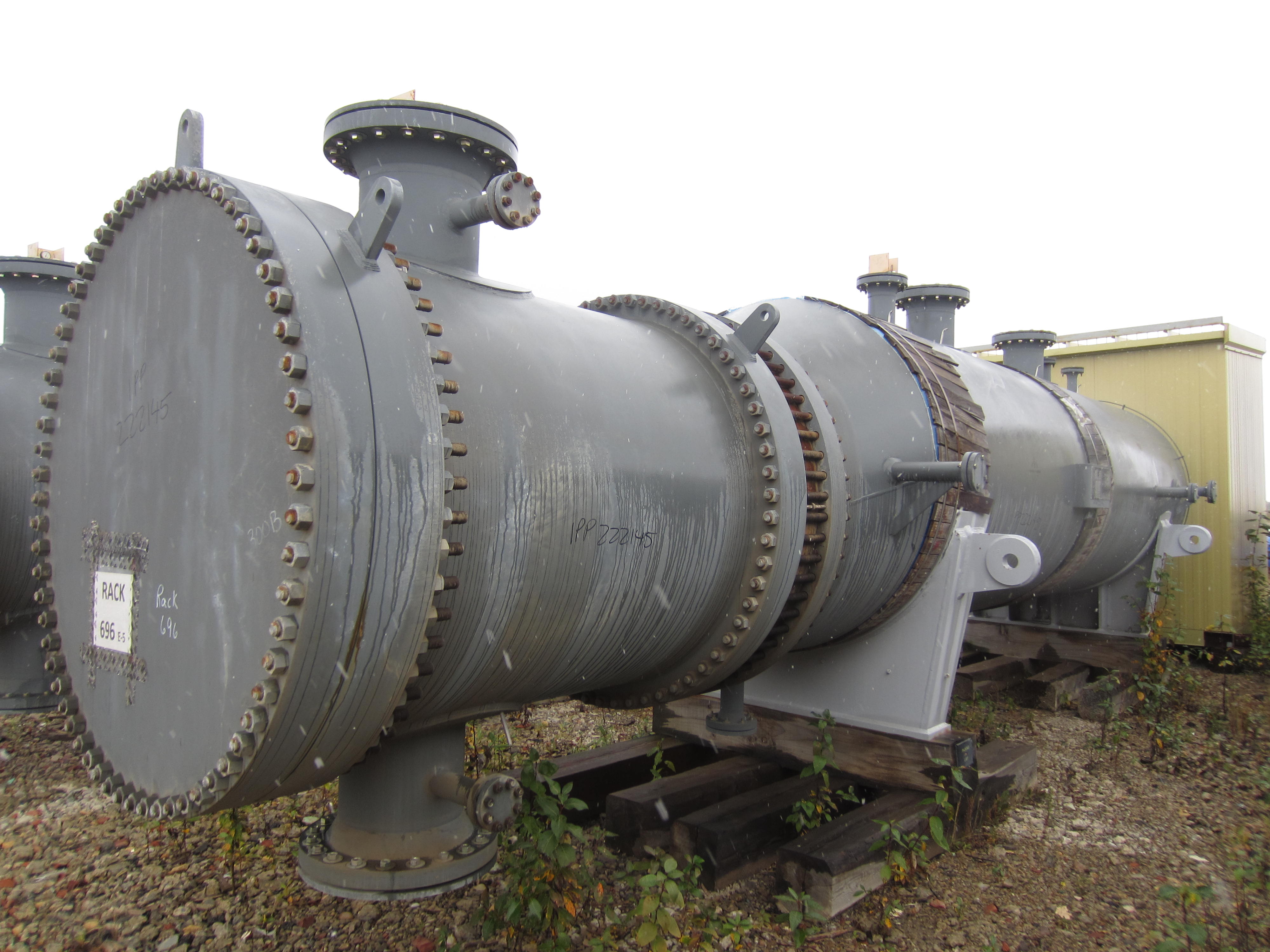

507.6 m² (5,464 ft²) Unused Stainless Steel Other Shell and Tube Heat Exchanger For Sale IPP# 222145

IPP# 222145, 507.6 m² (5,464 ft²) Unused Stainless Steel Other Shell and Tube Heat Exchanger For Sale

Condition:

Unused

Material:

Stainless Steel Other

Clad:

Yes

Manufacturer:

Daekyung Machinery & Engineering Co. Ltd. (Korea)

Heat Transfer Surface Area:

507.6 m² (5,464 ft²)

Orientation:

Horizontal

Shell Pressure:

25.2 bar (365 psi)

Shell Temperature:

343.3 °C (650 °F)

Shell Material:

Carbon Steel

Tube Pressure:

24.1 bar (350 psi)

Tube Temperature:

360 °C (680 °F)

Tube Material:

Stainless Steel Other

Tubesheet Material:

Stainless Steel Other

Vacuum:

Yes

Shell Diameter:

1,778 mm (70 in)

Head Material:

Stainless Steel Other

Length:

6,706 mm (264 in)

Tube Type:

Straight Tube

Tube Number:

1,008

Tube Diameter:

25.4 mm (1 in)

Tube Length:

6,706 mm (264 in)

Tube Thickness:

16.5 mm (0.65 in)

Nozzle Schedule:

- Openings: Channel Head (2) 16"; Shell (1) 4", (2) 12"

Additional Info:

Number of SS tubes: 405
SS tube material: SA268-TP405
Channel head material: SA516-70 + TP410
Floating head material: SA516-70 + TP410
Shell material: SA516 + TP410

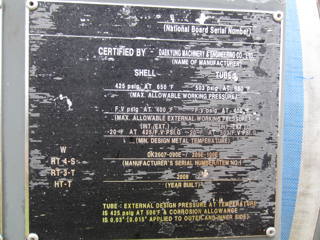

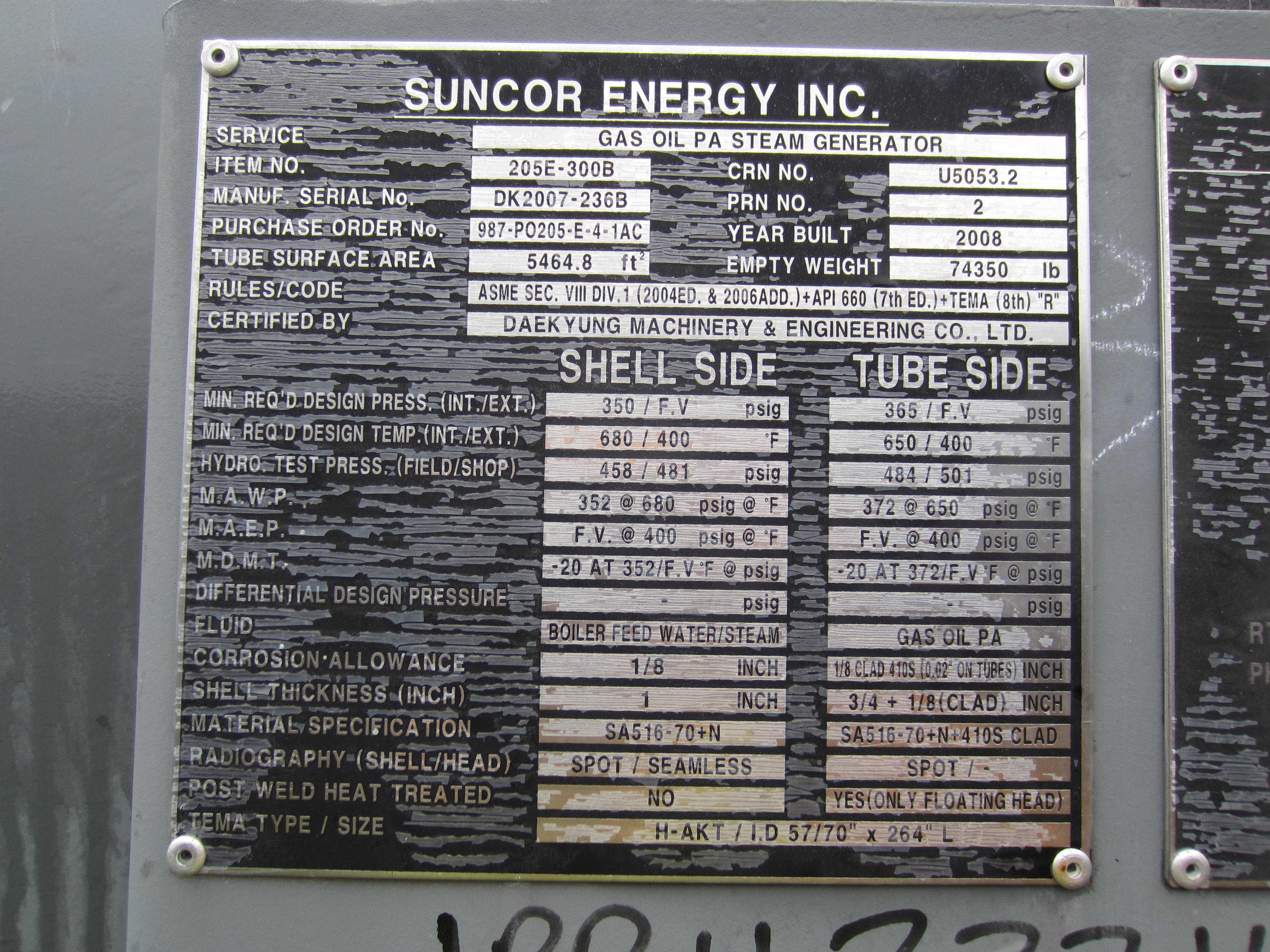

CRN #: U5053.2 Shell rated for FV/365 psi @ -20 to 650 degrees F;
tubes rated for FV/350 psi @ -20 to 680 degrees F.
TEMA Type: AKT
TEMA Size: 57/70 x 264
Reboiler type: kettle 1.25" pitch 410 Clad SS tube sheet (SA765-2 + 410SS Clad), 63.13" diameter x 7.28" + 0.47" thick. With internal floating head Shell is CS, 57" diameter expanding to 70" diameter x 264 " long
