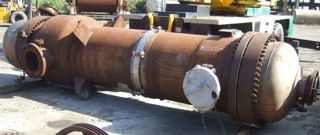

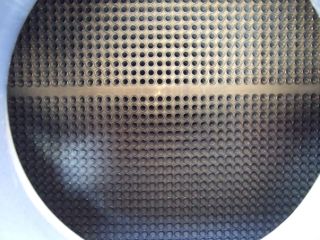

Titanium Bramah Process Ltd BEM Shell and Tube Heat Exchanger - IPP# 226220

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Bramah Process Ltd

Model: BEM

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 423.9 m² (4,550 ft²)

Orientation: Vertical

design pressure tube side 29.31 barg @ 251.7 degrees C (425 psi at 495 degrees F), shell side 12.07 barg @ 212.8 degrees C (175 psi at 415 degrees F) Shell : expansion joint (1) titanium bonnet head, (1) titanium dished head

Shell Pressure: 12.1 bar (175 psi). Shell Temperature: 212.8 °C (415 °F). Shell Material: Carbon Steel. Tube Pressure: 29.3 bar (425 psi). Tube Temperature: 257.2 °C (495 °F). Tube Material: Titanium. Tubesheet Material: Titanium. Shell Diameter: 1,250 mm (50 in). Head Material: Titanium. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 1,450. Tube Diameter: 19 mm (0.75 in). Tube Length: 4,850 mm (191.8 in). Nozzle Schedule: openings tubeside: 1 head with 1-280mm, 2-15mm, 1 head with 1-290mm with a 38mm off shoot, shell side: 1-425mm, 1-320mm, 1-25mm.

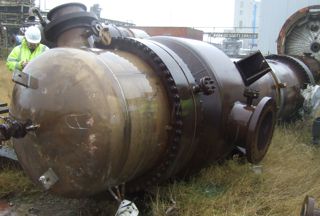

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Northern Special Metal (Fabricators) Ltd

Model: BEM

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 397 m² (4,250 ft²)

Orientation: Vertical

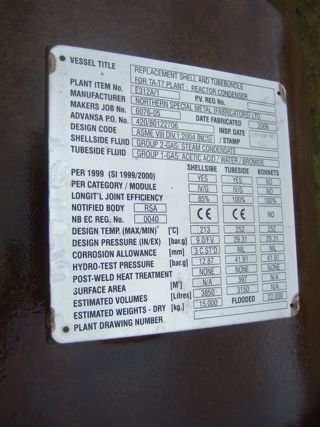

Maker's job #: 6076-05 design pressure tubeside 29.31 barg @ 252 degrees C (425 psi @ 495 degrees F) (3150 liter), shell side 9 bar + Full Vacuum @ 213 degrees C (130 psi + full vacuum @ 415 degrees F) (3850 liter), shell with expansion joint (2) titanium bonnet heads design code: ASME V111 DIV.1:2004 (NCS)

Shell Pressure: 9 bar (130 psi). Shell Temperature: 212.8 °C (415 °F). Shell Material: Carbon Steel. Tube Pressure: 29.3 bar (425 psi). Tube Temperature: 257.2 °C (495 °F). Tube Material: Titanium. Tubesheet Material: Titanium. Vacuum: Yes. Shell Diameter: 1,300 mm (50.3 in). Head Material: Titanium. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 1,450. Tube Diameter: 19 mm (0.75 in). Tube Length: 4,850 mm (191.7 in). Nozzle Schedule: openings tubeside: 1 head with 1-280mm, 2-15mm, 1 head with 1-290mm with a 38mm off shoot, shell side: 1-425mm, 1-320mm, 1-25mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: CO. A.S.T

Model: BEM

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 253.8 m² (2,750 ft²)

Orientation: Vertical

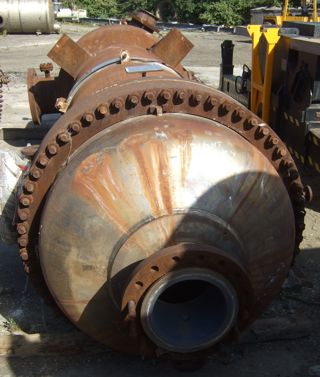

(re-boiler) carbon steel (Fe-510-2kw) shell, shell 12mm thick expansion bellow, (1) 316L stainless steel coned head, 9mm thick, (1) 316L stainless steel dished welded on head

Shell Pressure: 0.83 bar (12 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 0.55 bar (8 psi). Tube Temperature: 104.4 °C (220 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,250 mm (49 in). Head Material: Stainless Steel 316. Length: 7,000 mm (275.6 in). Tube Number: 343. Tube Diameter: 48.3 mm (1.9 in). Tube Length: 4,900 mm (192 in). Tube Thickness: 3.6 mm (0.14 in). Nozzle Schedule: openings tube side: (1) head with 1-740mm, (1) head with 1-500mm, 1-300mm, shell: 1-150mm, 1-100mm, 1-32mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Mechanica Sarda

Model: BEM

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Heat Transfer Surface Area: 98.5 m² (1,050 ft²)

Shell Pressure: 12 bar (174 psi)

pressure tube side 18 bar/full vacuum @ 130 degrees C (945 liter), shell 12 bar @ 130 degrees C (895 liter). 316L stainless steel clad tube sheets (7) 304 stainless steel internal baffles in the shell,Single pass on both sides, (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head, 4145mm overall length.

Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,450 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,450 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head 1-6", Bottom Head 1-6" (center), 1-6" on side of cone, Shell 2-10",.
