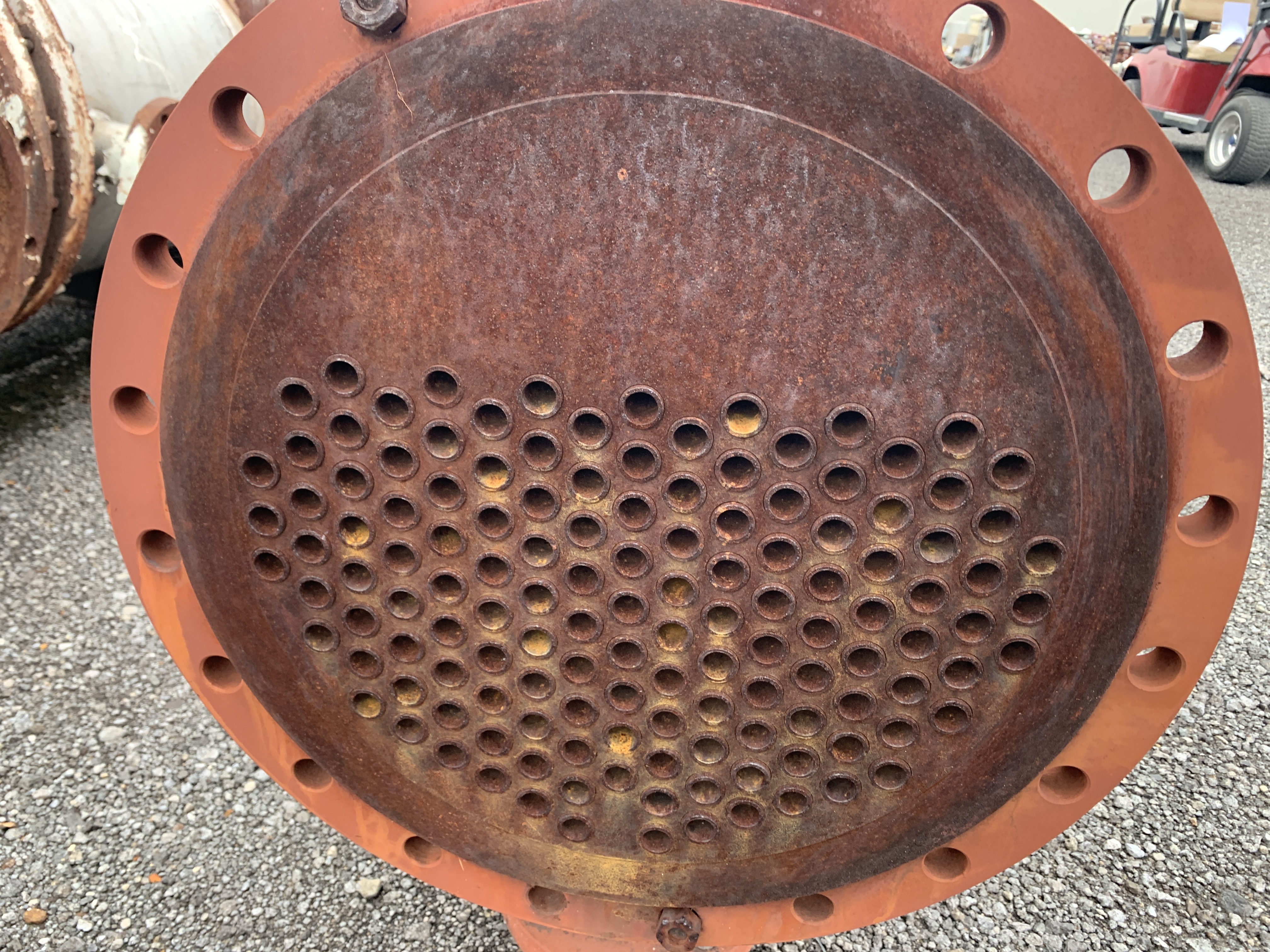

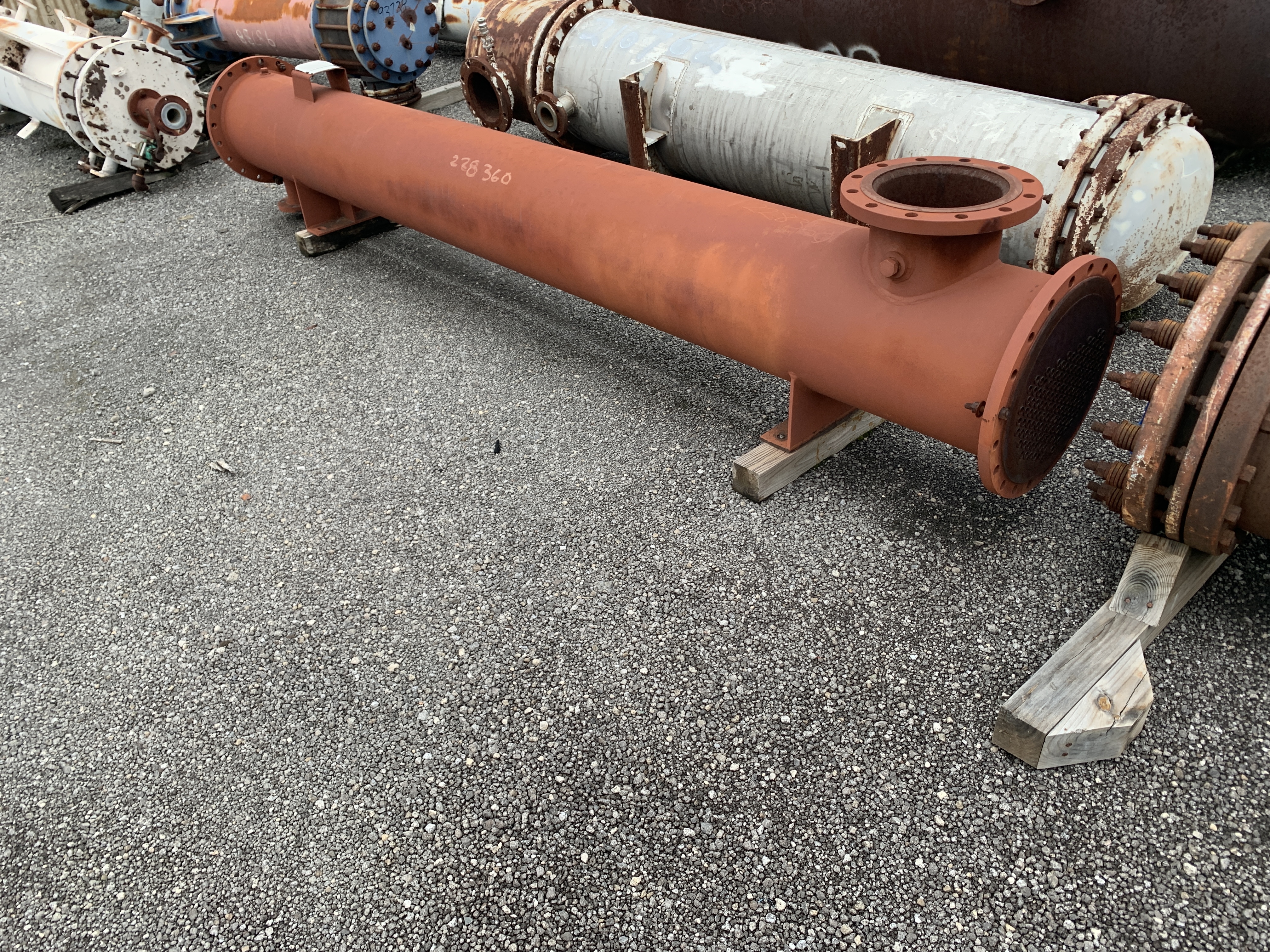

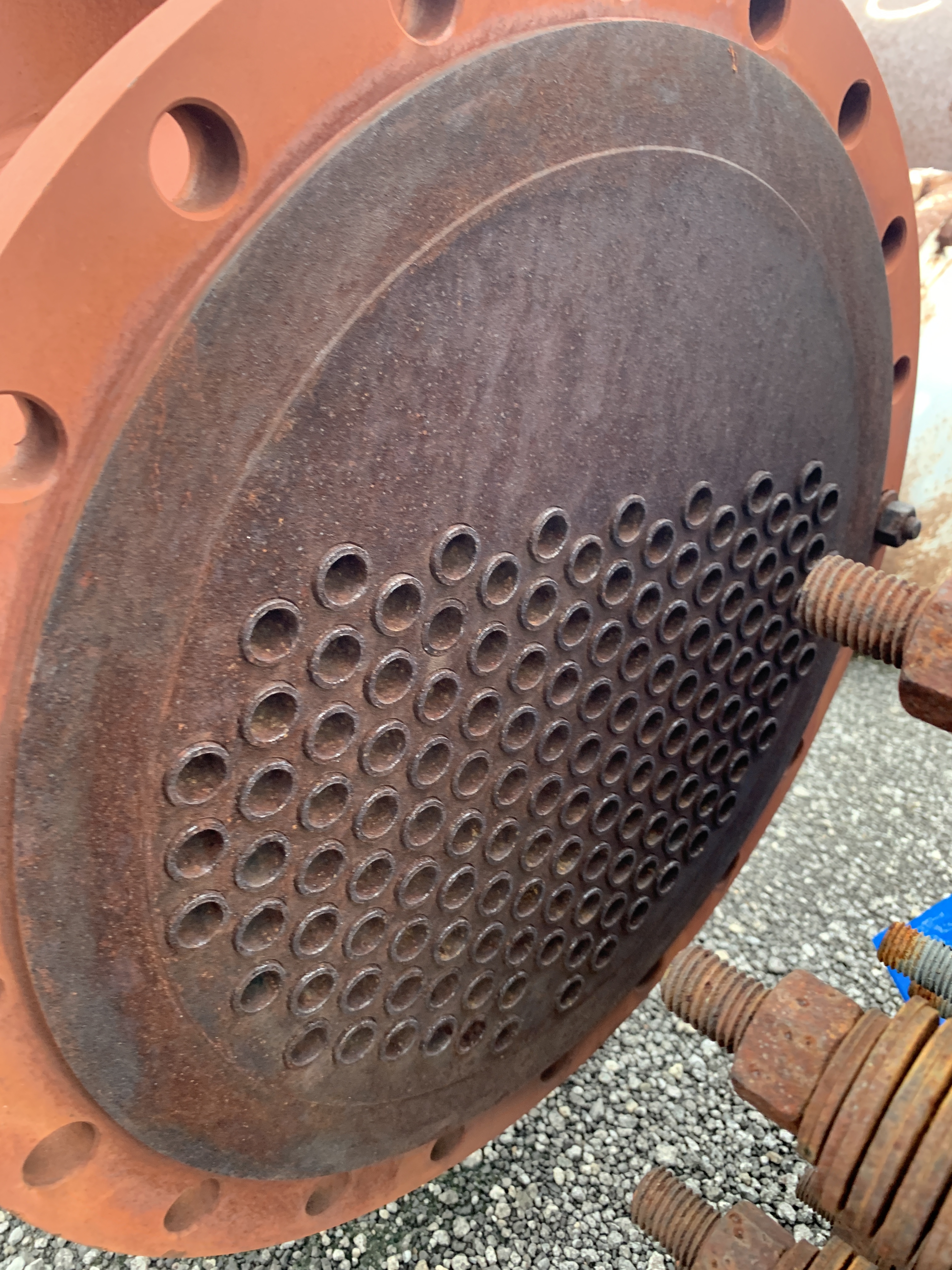

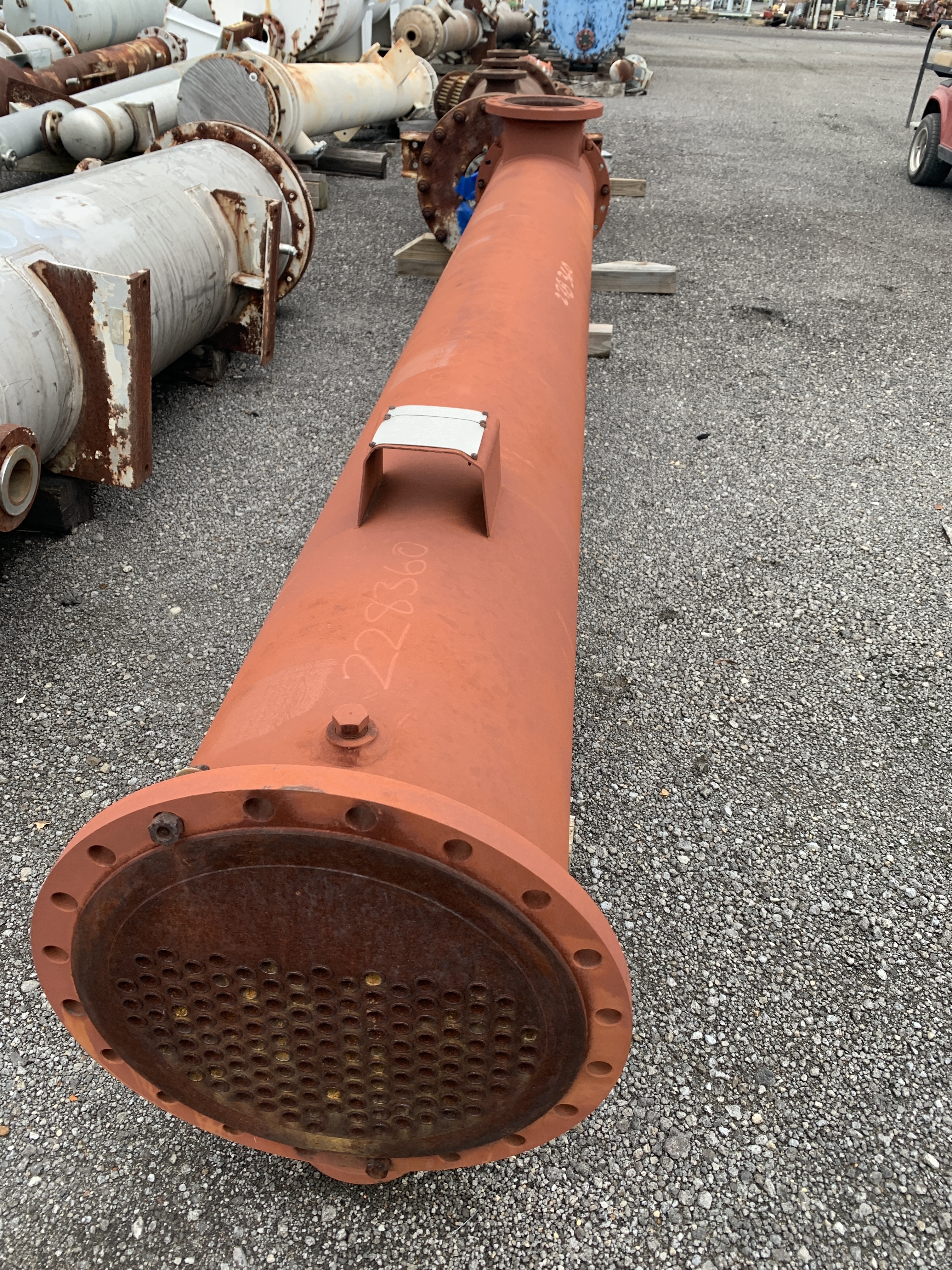

Type BEM. Replacement shell, spare, no heads with the unit.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Atlas Industrial
Condition: Used
Material: Carbon Steel
Heat Transfer Surface Area: 26.8 m² (289 ft²)
Orientation: Vertical
Shell Pressure: 12.1 bar (175 psi). Shell Temperature: 190.6 °C (375 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Carbon Steel. Length: 2,159 mm (85 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 211. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,134 mm (84 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Two 10", One 4", one 3" one 2", one 1.5", three 1", .
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Atlas Industrial
Condition: Used
Material: Carbon Steel
Heat Transfer Surface Area: 18.6 m² (200 ft²)
Orientation: Vertical
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy SB-575. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy SB-575. Length: 1,473 mm (58 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 1.91 mm (0.08 in). Tube Length: 1,473 mm (58 in). Tube Thickness: 457.2 mm (18 in). Nozzle Schedule: (1x) 10" inlet, (1x) 3" outlet, (1x) 4" outlet, (2x) 4" inlet/outlet (2x) 1" vent/drain.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Atlas Industrial
Model: BEM 20-60
Condition: Used
Material: Hastelloy - Other
Clad: Yes
Heat Transfer Surface Area: 27.9 m² (300 ft²)
Orientation: Vertical
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - Other. Length: 1,448 mm (57 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,448 mm (57 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 10", Three 4", One 3", Two 1".
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Atlas Industrial
Model: TEMA BEM 17-96
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 37.2 m² (400 ft²)
Orientation: Vertical
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 457.2 mm (18 in). Head Material: Stainless Steel 316L. Length: 3,353 mm (132 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 262. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,388 mm (94 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: One 12", Three 3", Two 2", and Two 1".
