Shell and Tube Heat Exchanger - IPP# 228397

Overview

Type:

Heat Exchanger

Subtype:

Shell and Tube

Condition:

Unused

Material:

Aluminum AA6063

Capacity

Heat Transfer Surface Area:

36.7 m² (395 ft²)

Dimensions

Orientation:

Horizontal

Length:

4,050 mm (159 in)

Tube

Tube Material:

Graphite

Tube-side Passes:

1

Tube Type:

Straight Tube

Tube Number:

76

Tube Diameter:

38.1 mm (1.5 in)

Tube Length:

4,050 mm (159 in)

Shell

Shell Diameter:

610 mm (24 in)

Shell-side Passes:

1

Additional Information

Has carbon steel baffles and Tie-rod

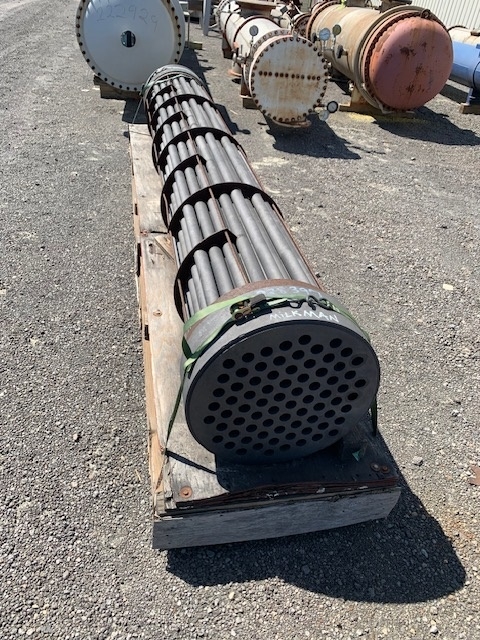

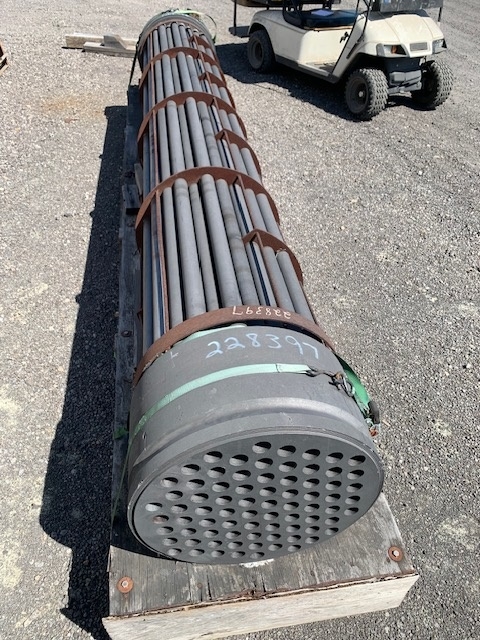

Bundle Only
