14.6 m² (157 ft²) Unused Stainless Steel 316 Shell and Tube Heat Exchanger For Sale IPP# 230460

IPP# 230460, 14.6 m² (157 ft²) Unused Stainless Steel 316 Shell and Tube Heat Exchanger For Sale

Condition:

Unused

Material:

Stainless Steel 316

Manufacturer:

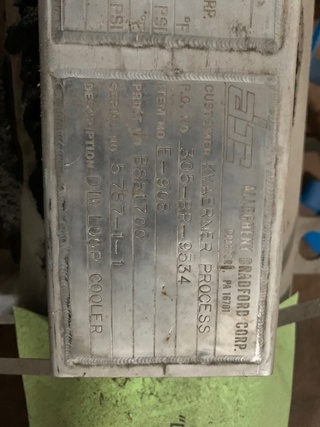

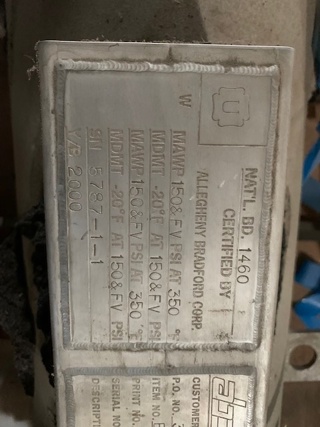

Allegheny Bradford Corp.

Heat Transfer Surface Area:

14.6 m² (157 ft²)

Orientation:

Horizontal

Shell Pressure:

10.3 bar (150 psi)

Shell Temperature:

148.9 °C (300 °F)

Shell Material:

Stainless Steel 304

Tube Pressure:

10.3 bar (150 psi)

Tube Temperature:

148.9 °C (300 °F)

Tube Material:

Stainless Steel 316L

Tubesheet Material:

Stainless Steel 316L

Vacuum:

Yes

Shell Diameter:

12.7 mm (0.5 in)

Head Material:

Stainless Steel 316L

Length:

2,235 mm (88 in)

Shell-side Passes:

Tube-side Passes:

Tube Type:

U-Tube

Tube Number:

172

Tube Diameter:

12.7 mm (0.5 in)

Tube Length:

2,134 mm (84 in)

Tube Thickness:

1.02 mm (0.04 in)

Additional Info:

Internals are 25 Ra electropolished. External as welded and passivated Inner and outer tube sheets are removable hell inlet and outlets are 8" RFSO flange, Tube inlet/outlet are 3" WE. Two 3/4" couplings for the vents & drain.
