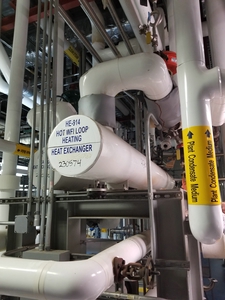

8 m² (86 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale IPP# 230571

Condition:

Used

Material:

Stainless Steel 316

Manufacturer:

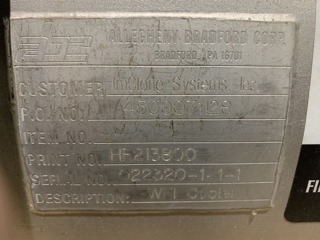

Allegheny Bradford Corp.

Heat Transfer Surface Area:

8 m² (86 ft²)

Orientation:

Horizontal

Shell Pressure:

10.3 bar (150 psi)

Shell Temperature:

176.7 °C (350 °F)

Shell Material:

Stainless Steel 316

Tube Pressure:

10.3 bar (150 psi)

Tube Temperature:

176.7 °C (350 °F)

Tube Material:

Stainless Steel 316

Tubesheet Material:

Stainless Steel 316

Vacuum:

Yes

Shell Diameter:

8,890 mm (350 in)

Head Material:

Stainless Steel 316

Length:

1,880 mm (74 in)

Tube Type:

U-Tube

Tube Diameter:

12.7 mm (0.5 in)

Tube Length:

1,829 mm (72 in)

Tube Thickness:

1.27 mm (0.05 in)

Nozzle Schedule:

Shell side nozzles: 4" 150# - Tube side nozzles: 3" Tri-Cl

Additional Info:

Shell side nozzles: 4" 150# Tube side nozzles: 3" Tri-Cl Gaskets: O ring, EPDM BTU/hr rating: 1,080,000

IPP# 230571, 8 m² (86 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale
