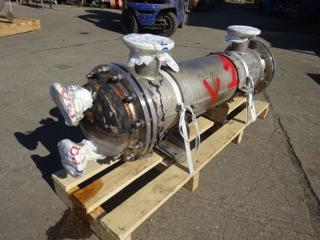

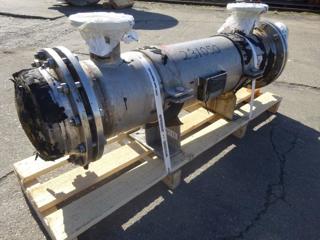

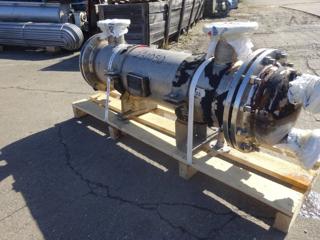

Stainless Steel Austenitic Silica Gel GmbH Shell and Tube Heat Exchanger - IPP# 231049

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Silica Gel GmbH

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 5.4 m² (58.1 ft²)

Orientation: Horizontal

(2) 316Ti (1.4571) stainless steel dished heads,
Insulation: Fully insulated
Certification: TUV certified

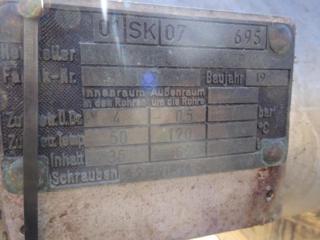

pressure tubeside 4 bar @ 50 degrees C (35 liter), shell 0.5 bar @ 120 degrees C (69 liter)

Shell Pressure: 0.5 bar (7.25 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 4 bar (58 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 324 mm (12.8 in). Head Material: Stainless Steel Austenitic. Length: 1,635 mm (64.4 in). Tube-side Passes: 2. Tube Number: 92. Tube Diameter: 18 mm (0.709 in). Tube Length: 1,250 mm (49.2 in). Nozzle Schedule: - Tubeside openings: (1) head with 2-50mm, (1) head with no openings - Shell openings: 2-100mm, 1-25mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Greub

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 30 m² (323 ft²)

Orientation: Horizontal

1.4435 outer tube, double pipe
6 pass design
tube side -1/8 bar @ -30 to 200 degrees C, volume 30;
rated shell side -1/2 bar @ -30 to 200 degrees C, volume 185 liter.
outer tube is 114.3 mm diameter.
Heads are 144 mm diameter.
Design to sit in saddles, no saddles with unit.

Shell Pressure: 2 bar (29 psi). Shell Temperature: 200 °C (392 °F). Tube Pressure: 8 bar (116 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel Other. Tube Type: U-Tube. Tube Number: 6. Tube Diameter: 40 mm (1.57 in). Tube Length: 2,485 mm (97.8 in). Nozzle Schedule: - Openings: - (2) 40 mm tube side - (2) 100 mm outer tube.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 35.5 m² (382 ft²)

Orientation: Horizontal

1-s/steel bonnet head (1-head missing)
2-c/steel feet

Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 20 bar (290 psi). Tube Temperature: 185 °C (365 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 300 mm (11.8 in). Head Material: Stainless Steel Austenitic. Tube Number: 91. Tube Diameter: 25 mm (0.984 in). Tube Length: 4,970 mm (196 in). Nozzle Schedule: openings: 1-head with 1-100mm, shell: 2-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344 ft²)

Orientation: Horizontal

• Heads: Without heads
• Pressure tubeside: -1/6 bar @ 300 deg C (203 liter)
• Pressure shell: -1/6 bar @ 300 deg C (310 liter)
• with expansion joint

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Tube Number: 164. Tube Diameter: 25 mm (0.984 in). Tube Length: 2,496 mm (98.3 in). Tube Thickness: 2 mm (0.0787 in). Nozzle Schedule: - Shell openings: 1-250mm, 2-80mm, 1-15mm.
