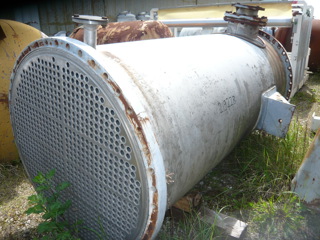

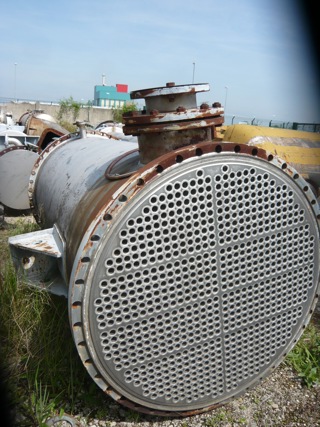

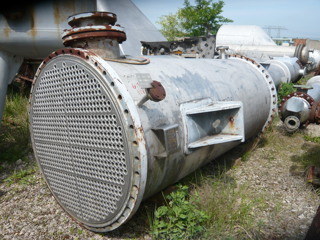

5.1 m² (54.9 ft²) Stainless Steel Austentic Shell and Tube Heat Exchanger For Sale IPP# 231152

IPP# 231152, 5.1 m² (54.9 ft²) Stainless Steel Austentic Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Stainless Steel Austentic

Clad:

Yes

Manufacturer:

GESSNER

Heat Transfer Surface Area:

5.1 m² (54.9 ft²)

Orientation:

Horizontal

Shell Pressure:

6 bar (87 psi)

Shell Temperature:

200 °C (392 °F)

Shell Material:

Stainless Steel Austentic

Tube Pressure:

6 bar (87 psi)

Tube Temperature:

200 °C (392 °F)

Tube Material:

Stainless Steel Austentic

Vacuum:

Yes

Shell Diameter:

219 mm (8.6 in)

Head Material:

Stainless Steel Austentic

Length:

3,177 mm (125.1 in)

Tube-side Passes:

Tube Number:

Tube Diameter:

25 mm (0.98 in)

Tube Length:

2,800 mm (110.2 in)

Nozzle Schedule:

openings tube side (1) head with 2-100mm, (1) head with 1-25mm (drain), shel side 2-100mm

Additional Info:

pressure tube side -1/6 bar @ -10/200 degrees C (33 liter), shell -1/6 bar @ -10/200 degrees C (55 liter) Fully insulated and cladded Built to TUV standards
