Shell and Tube Heat Exchanger 13.6 m² (146 ft²) For Sale - IPP# 233948

  • Shell and Tube Heat Exchanger 13.6 m² (146 ft²) For Sale - IPP# 233948 Shell and Tube Heat Exchanger 13.6 m² (146 ft²) For Sale - IPP# 233948
  • Shell and Tube Heat Exchanger 13.6 m² (146 ft²) For Sale - IPP# 233948
Overview
Heat Exchanger
Shell and Tube
Karbate
Used
Capacity
13.6 m² (146 ft²)
Dimensions
Vertical
3,750 mm (148 in)
Shell
6.9 bar (100 psi)
170 °C (338 °F)
Carbon Steel
Tube
6.9 bar (100 psi)
170 °C (338 °F)
Other Specifications
Two shell side nozzles are 6". One 2.5" tube side nozzle, one 2" tube side nozzle, and one 1.5" nozzle.
Additional Information
  • Graphite with CS shell
  • TEMA size: 17-72
  • Grade: K-22-14

Similar Equipment

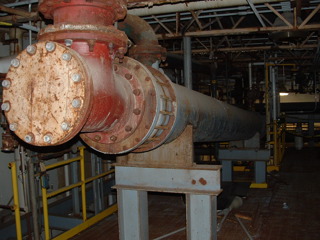

Graphite Shell and Tube Heat Exchanger

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Karbate

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 53 m² (571 ft²)

Orientation: Horizontal

Size: 19-192 Ten internal baffles Empty weight= 2900 lbs Bundle weight 1190 lbs.

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 170 °C (338 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Head Material: Graphite. Length: 5,950 mm (234.4 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 109. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 4,800 mm (188.8 in). Tube Thickness: 9.4 mm (0.37 in). Nozzle Schedule: Shell side nozzles are two 6". Tube side nozzles are one 12", and one 3", one 2". .
