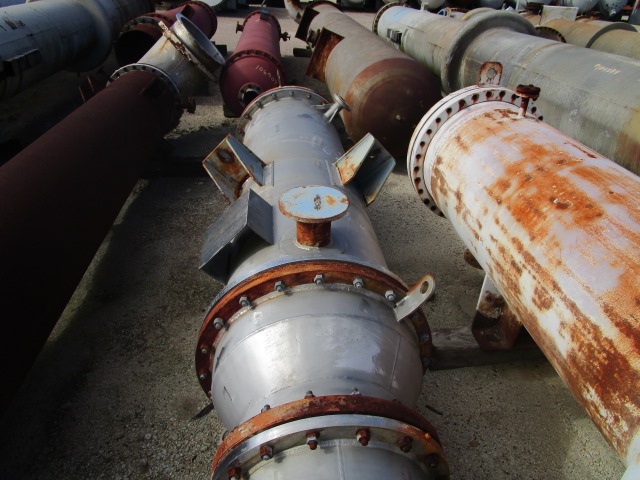

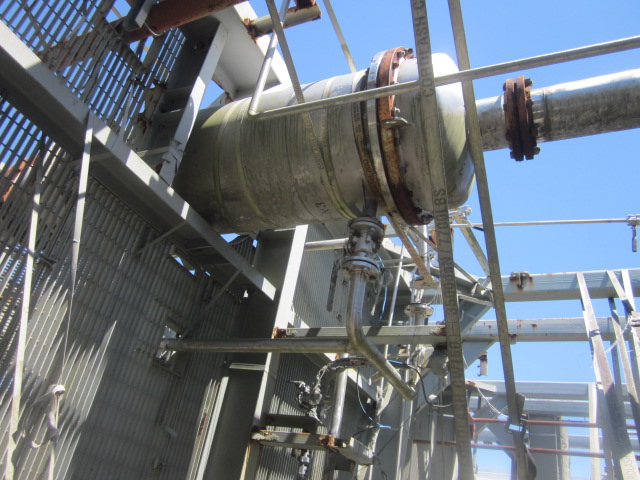

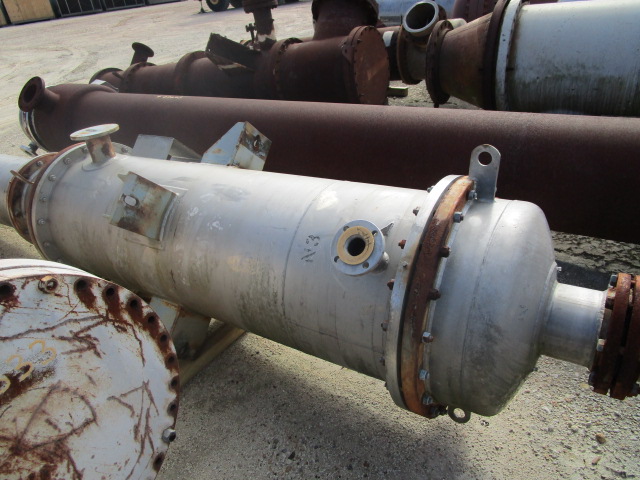

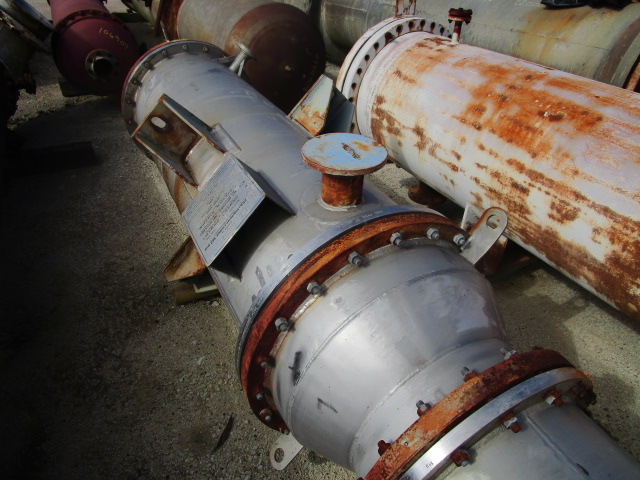

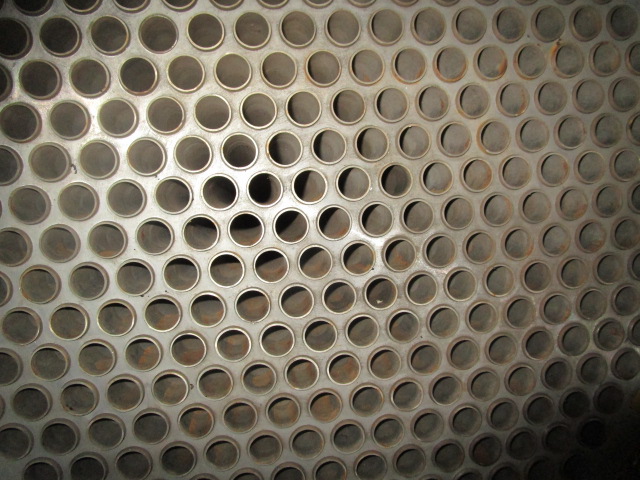

Unused Shell and Tube Heat Exchanger 48.9 m² (526 ft²) Stainless Steel 304 For Sale - IPP# 235346

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 234.1 m² (2,500 ft²)

Orientation: Vertical

Tube pitch 1.25" , 4 baffles, with spacing 1' 7"

Shell Pressure: 2 bar (29 psi). Shell Temperature: 115 °C (239 °F). Shell Material: Stainless Steel 304. Tube Pressure: 0.69 bar (10 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,100 mm (43 in). Head Material: Stainless Steel 304. Length: 5,700 mm (225 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 978. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,000 mm (118 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are 1-8", 1-3" Tube nozzles are 1-20", and 1-28"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 53.9 m² (580 ft²)

Orientation: Horizontal

Tube pitch 1.5" , 3 baffles, with spacing 2' 8"

Shell Pressure: 0.69 bar (10 psi). Shell Temperature: 60 °C (140 °F). Shell Material: Stainless Steel 304. Tube Pressure: 3.9 bar (56 psi). Tube Temperature: 55 °C (131 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 711 mm (28 in). Head Material: Stainless Steel 304. Length: 4,650 mm (184 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 260. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,000 mm (118 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: 12", 4", and 1" - Tube nozzles: two 12".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 178 m² (1,900 ft²)

Orientation: Vertical

Tube pitch 1.25" , 7 baffles, with spacing 1' 2"

Shell Pressure: 1.38 bar (20 psi). Shell Temperature: 135 °C (275 °F). Shell Material: Stainless Steel 304. Tube Pressure: 2.8 bar (40 psi). Tube Temperature: 90 °C (194 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,350 mm (53 in). Head Material: Stainless Steel 304. Length: 5,450 mm (215 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 744. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,000 mm (118 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: 12", and 2" - Tube nozzles: 24" and 18".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 370.4 m² (4,000 ft²)

Orientation: Vertical

The shell has a bottom concentric head and bolts directly to heat exchanger H-1606 Tube pitch 1.25" , 6 baffles, with spacing 2' 1"

Shell Pressure: 0.69 bar (10 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Stainless Steel 304. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 45 °C (113 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,500 mm (60 in). Head Material: Stainless Steel 304. Length: 6,900 mm (271 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 926. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,000 mm (197 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are 14", and 4", tube nozzles are 12" and 1".
