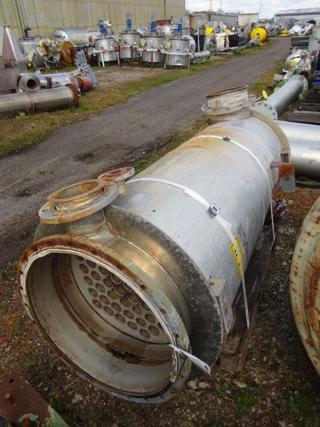

Shell and Tube Heat Exchanger 30 m² (322.9 ft²) Stainless Steel Austenitic For Sale - IPP# 236122

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 20 m² (215.3 ft²)

Orientation: Vertical

pressure tubeside 9 bar @ 180 degrees C (318 liter) shell -1/1 bar @ 180 degrees C (555 liter) 5mm thick 316Ti (1.4571) stainless steel shell (2) 316Ti stainless steel dished heads

Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 9 bar (130.5 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 690 mm (27.2 in). Head Material: Stainless Steel Austenitic. Length: 2,900 mm (114.9 in). Tube-side Passes: 1. Tube Number: 76. Tube Diameter: 54 mm (2.1 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side:1-head with 1-300mm, 1-head with 1-150mm, shell: 2-125mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 16 m² (172.2 ft²)

Orientation: Vertical

pressure tube side 0 bar (519 Liter ) Shell 9 bar @ 180 degrees (316 liter) (2) 316Ti stainless steel dished heads

Shell Pressure: 9 bar (130.5 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel Austenitic. Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Shell Diameter: 650 mm (25.6 in). Head Material: Stainless Steel Austenitic. Length: 2,800 mm (110.9 in). Tube-side Passes: 1. Tube Number: 61. Tube Diameter: 54 mm (2.1 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: penings tubeside: 1- head with 1-300mm, 1-head with 1-150mm, 1-25mm, shell side: 1-125mm, 1-40mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25 m² (269.1 ft²)

Orientation: Vertical

pressure tubeside -1/3.2 bar @ 165 degrees C (855 liter), shell -1/6 bar @ 165 degrees C (540 liter), Connections include; shell side 2 - 400mm, tube side 1 - 200mm, 2 - 150mm, 1 - 25mm,

Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Stainless Steel 316. Tube Pressure: 3.2 bar (46.4 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 316. Length: 3,050 mm (120.2 in). Tube-side Passes: 1. Tube Number: 97. Tube Diameter: 54 mm (2.1 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Connections include; shell side 2 - 400mm, tube side 1 - 200mm, 2 - 150mm, 1 - 25mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Greub

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 30 m² (322.9 ft²)

Orientation: Horizontal

1.4435 outer tube, double pipe 6 pass design tube side -1/8 bar @ -30 to 200 degrees C, volume 30; rated shell side -1/2 bar @ -30 to 200 degrees C, volume 185 liter. outer tube is 114.3 mm diameter. Heads are 144 mm diameter. Design to sit in saddles, no saddles with unit.

Shell Pressure: 2 bar (29 psi). Shell Temperature: 200 °C (392 °F). Tube Pressure: 8 bar (116 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel Other. Tube Type: U-Tube. Tube Number: 6. Tube Diameter: 40 mm (1.57 in). Tube Length: 2,500 mm (97.8 in). Nozzle Schedule: - Openings: - (2) 40 mm tube side - (2) 100 mm outer tube.
