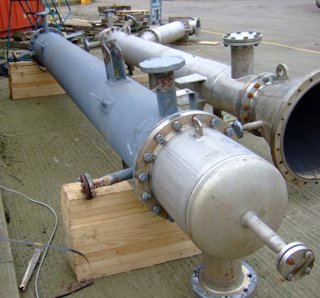

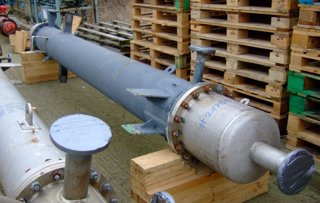

Shell and Tube Heat Exchanger 329 m² (3,550 ft²) Stainless Steel Austenitic For Sale - IPP# 236145

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Apparatebau GmbH

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 35.2 m² (378.9 ft²)

Orientation: Vertical

• Shell thickness: - 3mm thick
• Internal baffle plates: (18) (2) 316 s/steel bonnet heads
• Certification: TUV certified lifting eyes on shell and heads

Shell Pressure: 10 bar (145 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel Austenitic. Length: 5,500 mm (215.8 in). Tube Number: 139. Tube Diameter: 20 mm (0.79 in). Tube Length: 4,000 mm (157.5 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Tube side openings: (1) head with 1-150mm, 1-25mm, (1) head with 1-100mm - Shell side openings: 1-80mm, 1-50mm, 2-25mm.

Type: Heat Exchanger

Subtype: Shell and Tube

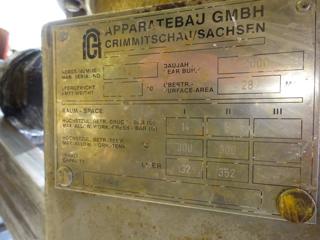

Manufacturer: Apparatebau gmbh

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 28 m² (301.4 ft²)

Orientation: Vertical

pressure tube side 14 barg @ 300 degrees C (192 liter) shell 8 barg @ 300 degrees C (352 liter) Certification: TUV (2) 321 stainless steel dished heads

Shell Pressure: 8 bar (116 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 321. Tube Pressure: 14 bar (203.1 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 3,650 mm (143.3 in). Tube-side Passes: 1. Tube Diameter: 25 mm (0.98 in). Tube Length: 1,500 mm (59.1 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Greub

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 30 m² (322.9 ft²)

Orientation: Horizontal

1.4435 outer tube, double pipe 6 pass design tube side -1/8 bar @ -30 to 200 degrees C, volume 30; rated shell side -1/2 bar @ -30 to 200 degrees C, volume 185 liter. outer tube is 114.3 mm diameter. Heads are 144 mm diameter. Design to sit in saddles, no saddles with unit.

Shell Pressure: 2 bar (29 psi). Shell Temperature: 200 °C (392 °F). Tube Pressure: 8 bar (116 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel Other. Tube Type: U-Tube. Tube Number: 6. Tube Diameter: 40 mm (1.57 in). Tube Length: 2,500 mm (97.8 in). Nozzle Schedule: - Openings: - (2) 40 mm tube side - (2) 100 mm outer tube.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 35.5 m² (382.1 ft²)

Orientation: Horizontal

1-s/steel bonnet head (1-head missing) 2-c/steel feet

Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 20 bar (290.1 psi). Tube Temperature: 185 °C (365 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 300 mm (11.8 in). Head Material: Stainless Steel Austenitic. Tube Number: 91. Tube Diameter: 25 mm (0.98 in). Tube Length: 4,950 mm (195.7 in). Nozzle Schedule: openings: 1-head with 1-100mm, shell: 2-50mm.
