Shell and Tube Heat Exchanger 145 m² (1,550 ft²) Stainless Steel 321 For Sale - IPP# 236149

Type: Heat Exchanger

Subtype: Shell and Tube

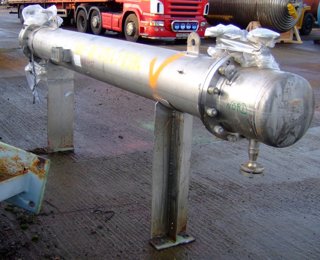

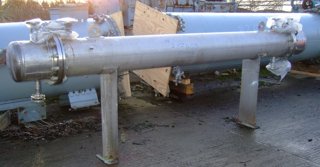

Manufacturer: AEL Apparatebau Gmbh

Model: WFLG-32-3000-46

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 10.8 m² (116.3 ft²)

Orientation: Horizontal

with Duplex head pressure tube side 6 bar @ 120 deg C (102ltr), shell side -1/6 bar @ 120 deg C (164ltr) (18) internal baffles (2) Duplex (1.4462) bonnet heads TUV certified

Shell Pressure: 6 bar (87 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 329 mm (13 in). Length: 3,750 mm (147.7 in). Tube Number: 46. Tube Diameter: 25 mm (0.98 in). Tube Length: 3,000 mm (117.2 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side: 2-50mm, 2-25mm, shell: 2-50mm, 1-25mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 5.6 m² (60 ft²)

Orientation: Horizontal

Repair company: Carbide Shell and Tube (Ponce, PR)3 Shell side has a 4" inlet and a 2" outlet. Tube side has 2" inlets and outlets.

Shell Material: Carbon Steel. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 23.9 °C (75 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 1,800 mm (70 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 58 m² (624 ft²)

Orientation: Vertical

(1) 321 (1.4541) stainless steel head

Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 6,100 mm (239.8 in). Tube Type: U-Tube. Tube Number: 78. Nozzle Schedule: openings tubeside: dished head with 2-80mm, shell: 1-300mm, 1-100mm, 1-32mm, top 2 x 80 mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 137 m² (1,450 ft²)

Orientation: Vertical

carbon steel heads pressure tubeside 6 bar @ 120 deg C (755 liter), shell vacuum/0.5 @ 120 deg C (1890 liter) (1) 321 (1.4541) stainless steel dished head

Shell Pressure: 0.5 bar (7.3 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6 bar (87 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,400 mm (252 in). Tube Type: U-Tube. Tube Number: 184. Tube Diameter: 25 mm (0.98 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side: dished head with 2-100mm, shell: 1-400mm, 1-150mm, 1-32mm.
