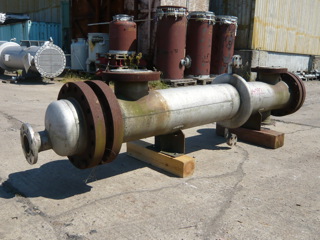

Stainless Steel 321 Landruf Shell and Tube Heat Exchanger - IPP# 236151

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: LANDRUF Rohrtechnik GmbH

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 12.8 m² (138 ft²)

Orientation: Horizontal

• 316 s/steel (1.4571/1.4401)
• Orientation: Vertical or horizontal

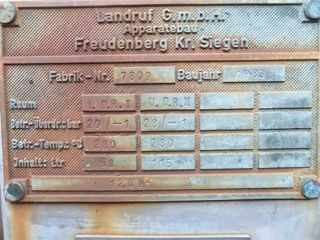

  pressure tube side -1/20 bar @ 280 deg C
  volume 58 liter
  shell side -1/28 bar @ 280 deg C
  volume 115 liter

Shell Pressure: 28 bar (406 psi). Shell Temperature: 280 °C (536 °F). Shell Material: Stainless Steel 316. Tube Pressure: 20 bar (290 psi). Tube Temperature: 280 °C (536 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in). Tube Number: 60. Tube Diameter: 25 mm (0.984 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.0787 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 5.57 m² (60 ft²)

Orientation: Horizontal

Repair company: Carbide Shell and Tube (Ponce, PR)3
Shell side has a 4" inlet and a 2" outlet.
Tube side has 2" inlets and outlets.

Shell Material: Carbon Steel. Tube Pressure: 4.14 bar (60 psi). Tube Temperature: 23.9 °C (75 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 1,778 mm (70 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 58 m² (624 ft²)

Orientation: Vertical

(1) 321 (1.4541) stainless steel head

Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 6,090 mm (240 in). Tube Type: U-Tube. Tube Number: 78. Nozzle Schedule: openings tubeside: dished head with 2-80mm, shell: 1-300mm, 1-100mm, 1-32mm, top 2 x 80 mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 137 m² (1,475 ft²)

Orientation: Vertical

carbon steel heads
pressure tubeside 6 bar @ 120 deg C (755 liter), shell vacuum/0.5 @ 120 deg C (1890 liter)
(1) 321 (1.4541) stainless steel dished head

Shell Pressure: 0.5 bar (7.25 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6 bar (87 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,400 mm (252 in). Tube Type: U-Tube. Tube Number: 184. Tube Diameter: 25 mm (0.984 in). Tube Length: 5,000 mm (197 in). Tube Thickness: 2 mm (0.0787 in). Nozzle Schedule: openings tube side: dished head with 2-100mm, shell: 1-400mm, 1-150mm, 1-32mm.
