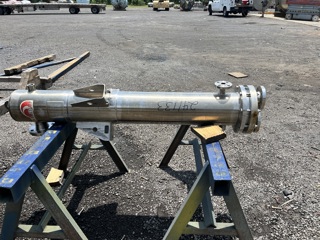

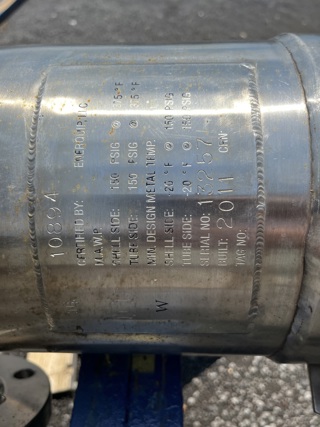

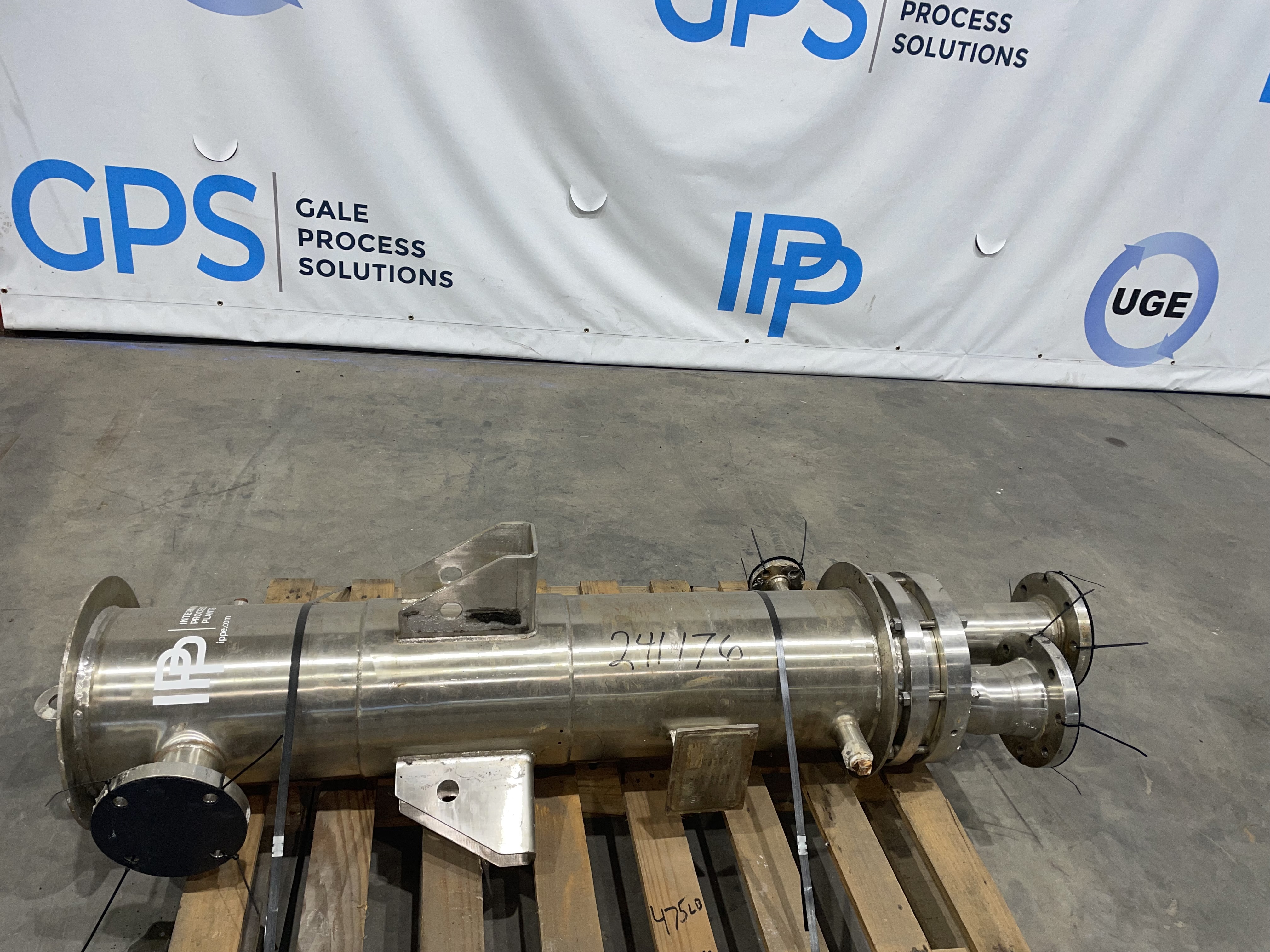

Stainless Steel 304L Enerquip LLC Shell and Tube Heat Exchanger - IPP# 241176

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Enerquip LLC

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 3.4 m² (37 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 190.6 °C (375 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Shell Diameter: 219.1 mm (8.6 in). Head Material: Stainless Steel 316L. Length: 1,500 mm (58.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 57. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,500 mm (58.1 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Two 2" , one 2.5", one 1".

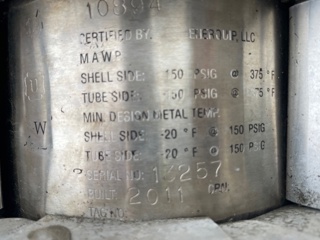

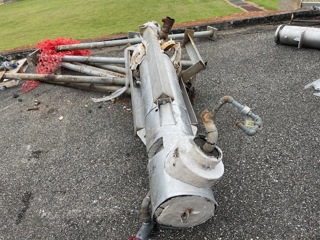

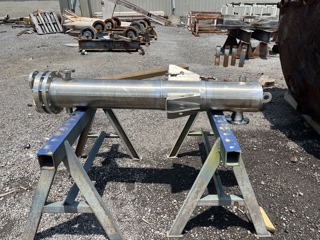

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Enerquip LLC

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 1.49 m² (16 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 190.6 °C (375 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,150 mm (46.1 in). Head Material: Stainless Steel 304. Length: 1,150 mm (46.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 22. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,150 mm (46.1 in). Tube Thickness: 16.5 mm (0.65 in). Nozzle Schedule: 1-3" inlet nozzle, 1-3" outlet nozzle, 1-2" shell outlet.

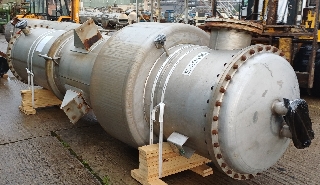

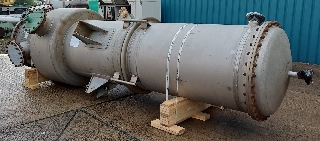

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Mayr & Wilhelm GmbH

Condition: Used

Material: Stainless Steel 304L

Heat Transfer Surface Area: 39 m² (419.8 ft²)

Orientation: Vertical

Shell Pressure: 7.5 bar (108.8 psi). Shell Temperature: 52.6 °C (126.7 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 7.5 bar (108.8 psi). Tube Temperature: 35.3 °C (95.6 °F). Tube Material: Stainless Steel 304L. Tubesheet Material: Stainless Steel 304L. Vacuum: Yes. Shell Diameter: 605 mm (23.8 in). Head Material: Stainless Steel 304L. Length: 1,500 mm (59.4 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 457. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,500 mm (60 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: shell side: (1) DN20, (1) DN25, (1) DN50, (1) DN80; tube side: (1) DN20, (1) DN40, (1) DN100, (1) DN450. Capacity: 735 L (194.2 gallons). Heat Exchanger Tube Capacity: 535 L (141.3 gallons).

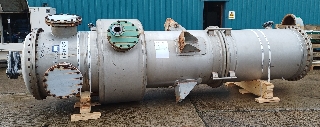

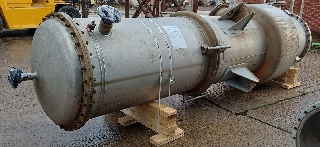

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sogem

Condition: Used

Material: Stainless Steel 304L

Heat Transfer Surface Area: 157 m² (1,700 ft²)

Orientation: Vertical

• shell with expansion joint

Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 304L. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 70 °C (158 °F). Tube Material: Stainless Steel 304L. Tubesheet Material: Stainless Steel 304L. Vacuum: Yes. Shell Diameter: 1,000 mm (39.4 in). Head Material: Stainless Steel 304L. Length: 5,250 mm (206.5 in). Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 526. Tube Diameter: 25.7 mm (1.01 in). Tube Length: 3,800 mm (149.6 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: tube side: top head: 2-350mm, bottom head: 1-50mm, shell: 1-300mm, 1-100mm with 10mm off shoot, 1-25mm . Capacity: 2,400 L (634 gallons). Heat Exchanger Tube Capacity: 1,600 L (426.9 gallons).
