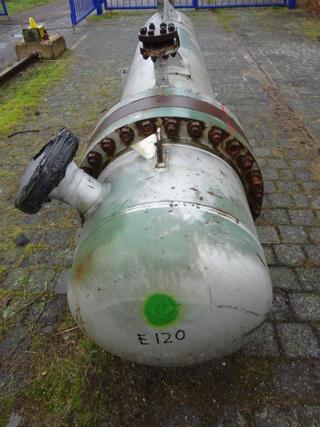

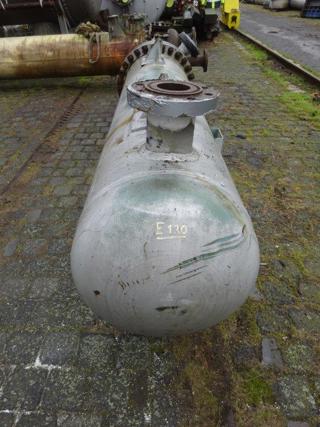

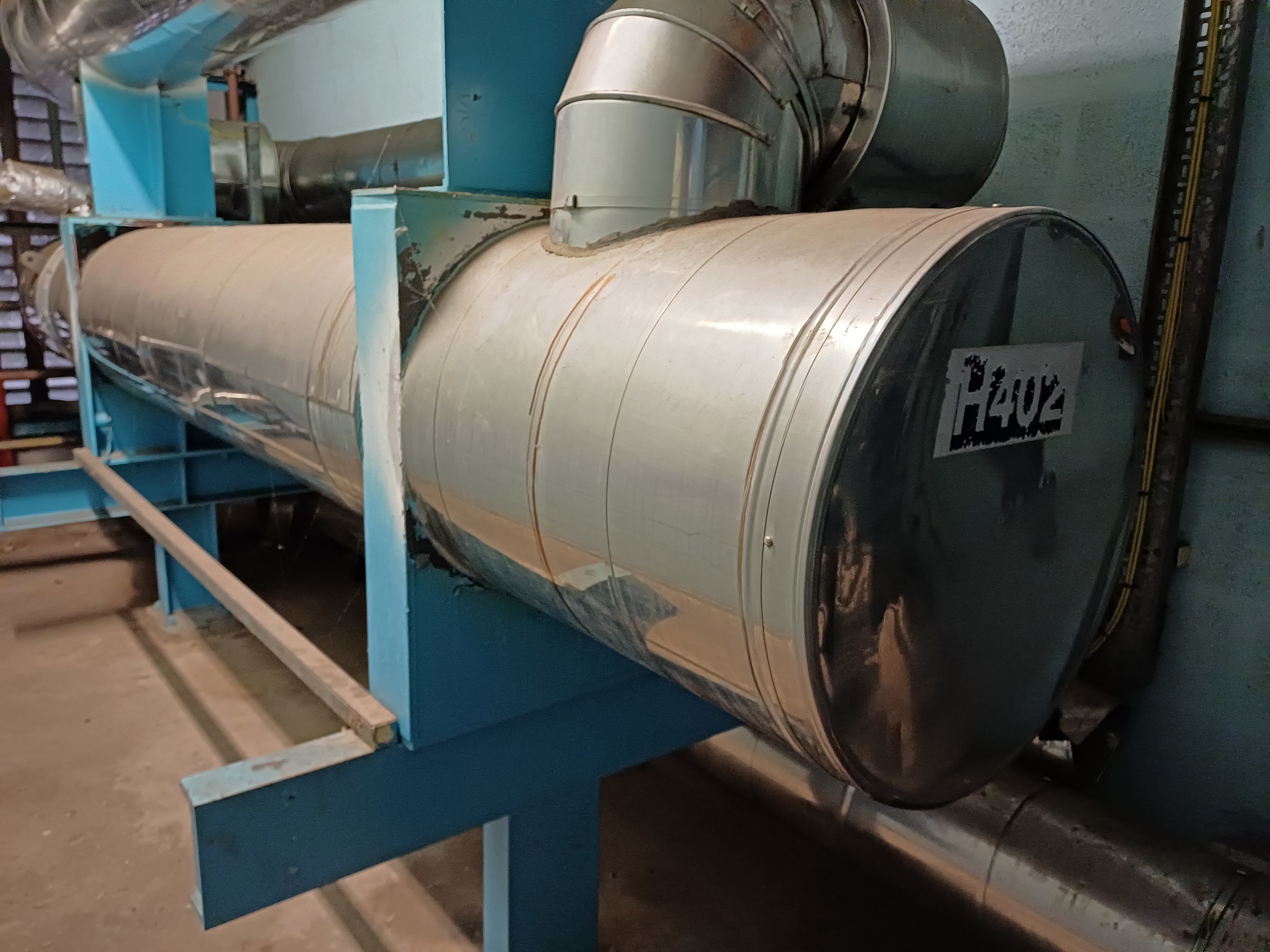

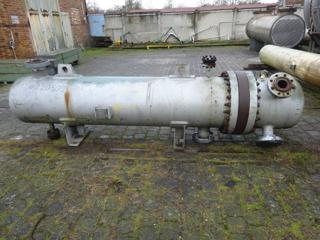

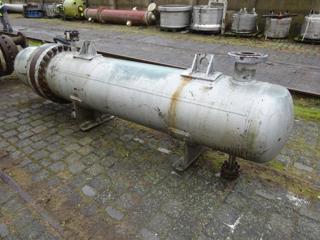

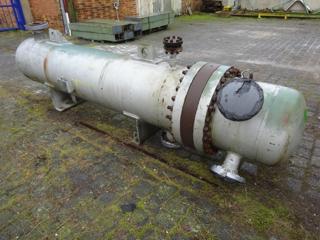

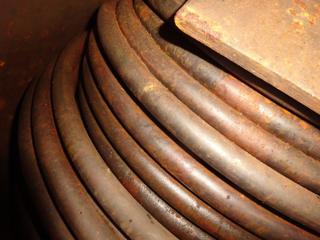

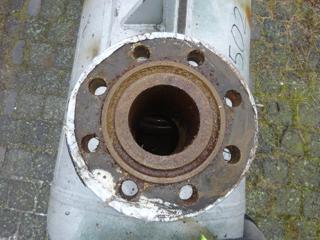

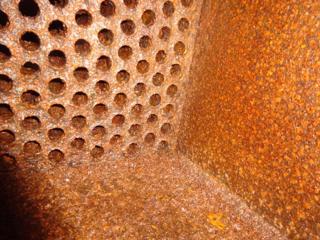

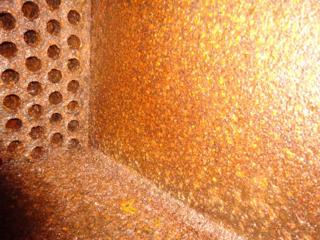

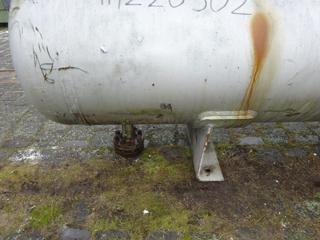

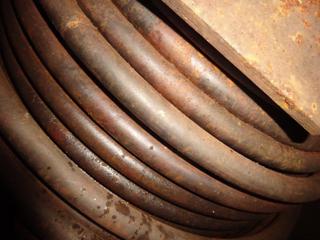

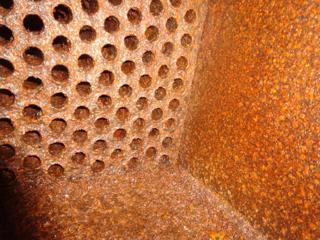

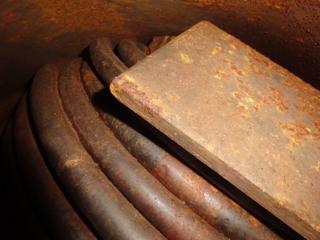

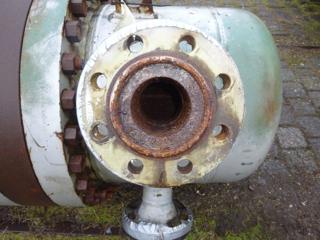

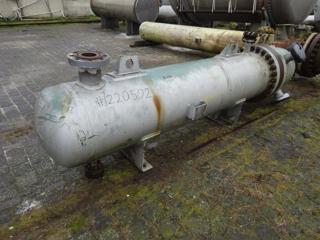

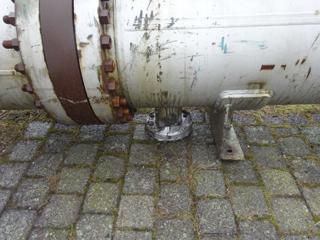

Carbon Steel Titanium Fabrication Corporation Shell and Tube Heat Exchanger - IPP# 242459

Type: Heat Exchanger

Subtype: Shell and Tube

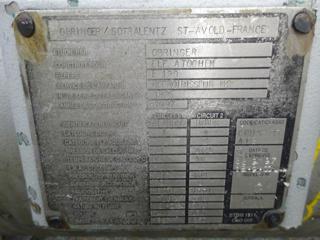

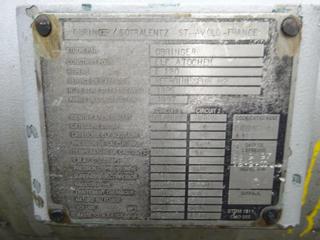

Manufacturer: Obringer/Sotralentz

Model: BEU

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 25.3 m² (272.3 ft²)

Orientation: Horizontal

working pressure tube side 7.5 barg (0.75 Mpa) @ 50 degrees C (350 liter ), shell side 53 barg (5.3 Mpa) @ 95 degrees C (450 liter) (1) carbon steel bonnet head, (1) carbon steel tubesheet, design code: CODAP 95 A f2,

Shell Pressure: 53 bar (769 psi). Shell Temperature: 95 °C (203 °F). Shell Material: Copper/Brass. Tube Pressure: 7.5 bar (108.8 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 610 mm (24 in). Head Material: Carbon Steel. Length: 3,500 mm (138.4 in). Tube-side Passes: 4. Tube Type: U-Tube. Tube Number: 186. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,250 mm (89.3 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: openings tube side: bonnet head with 2-100mm, shell: 2-100mm, 2-50mm, .

Type: Heat Exchanger

Subtype: Shell and Tube

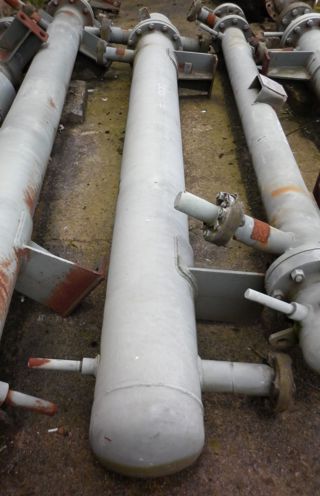

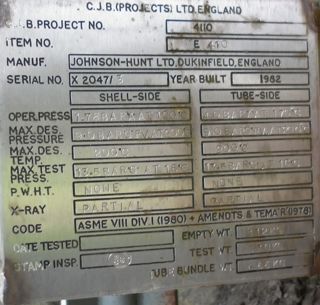

Manufacturer: Johnson Hunt LTD

Model: BEU

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 1.95 m² (21 ft²)

Orientation: Horizontal

Shell Pressure: 9 bar (131 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 21.6 bar (313 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 8. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,050 mm (120 in).

Type: Heat Exchanger

Subtype: Shell and Tube

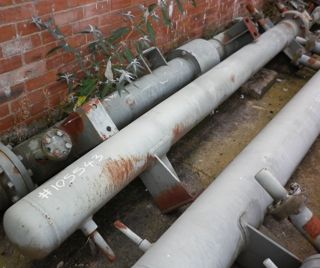

Manufacturer: Johnson Hunt LTD

Model: BEU

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 6.4 m² (69 ft²)

Orientation: Horizontal

Has (44) 3/4" diameter x 14 gauge x 8' long tubes. 2 heads.

Shell Pressure: 9 bar (131 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 9 bar (131 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 254 mm (10 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 44. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,450 mm (96 in). Tube Thickness: 2 mm (0.08 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Titanium Fabrication Corporation

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 8.2 m² (88.3 ft²)

Orientation: Horizontal

• design pressure tubeside 10 bar + full vacuum @ -29/350 degrees C,
• shell side 10 bar + full vacuum @ -29/350 degrees C,
• design code: BS5500 (1991) CAT 2 & TEMA 'B' (1988)

Shell Pressure: 10 bar (145 psi). Shell Temperature: 350 °C (662 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: 350 °C (662 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in). Head Material: Carbon Steel. Length: 3,300 mm (129.9 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 28. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: tube side: 2-80mm, shell 2-100mm,.
