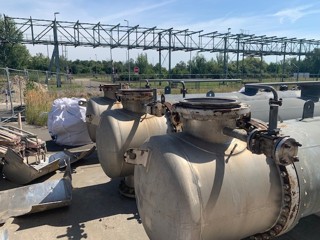

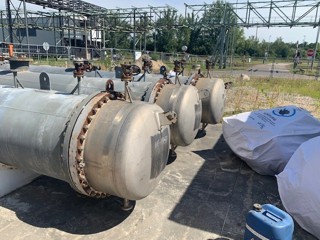

364 m² (3,918 ft²) Hastelloy - Other Shell and Tube Heat Exchanger For Sale IPP# 245604

IPP# 245604, 364 m² (3,918 ft²) Hastelloy - Other Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Hastelloy - Other

Manufacturer:

NL Schkopau IRB GmbH

Heat Transfer Surface Area:

364 m² (3,918 ft²)

Orientation:

Horizontal

Shell Pressure:

7 bar (101.5 psi)

Shell Temperature:

260 °C (500 °F)

Shell Material:

Carbon Steel

Tube Pressure:

5 bar (72.5 psi)

Tube Temperature:

260 °C (500 °F)

Tube Material:

Hastelloy - Other

Tubesheet Material:

Hastelloy - Other

Vacuum:

Yes

Shell Diameter:

910 mm (35.8 in)

Head Material:

Hastelloy - Other

Length:

6,096 mm (240 in)

Shell-side Passes:

Tube-side Passes:

Tube Type:

Straight Tube

Tube Number:

1,014

Tube Diameter:

19.1 mm (0.75 in)

Tube Length:

6,096 mm (240 in)

Tube Thickness:

1.65 mm (0.06 in)

Nozzle Schedule:

first head (2)DN400, second Head (2)DN20, shell (1)DN300, (2)DN80, (2)DN25, (1)DN20

Capacity:

4,010 L (1,059 gallons)

Heat Exchanger Tube Capacity:

2,100 L (554.8 gallons)

Additional Info:

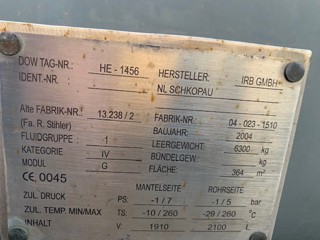

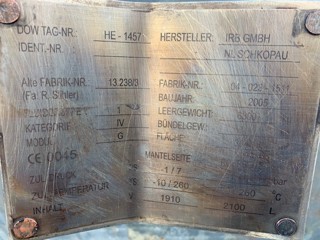

shell pressure rated by -1/7bar @ -10/260 degrees C ( 1.910 liter ) (1) pass, tube pressure rated by -1/5bar @ -29/260 degrees C ( 2.100 liter ) (1)pass
