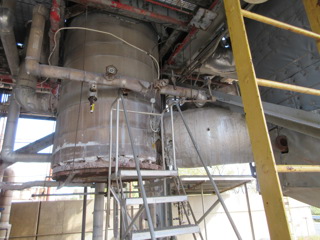

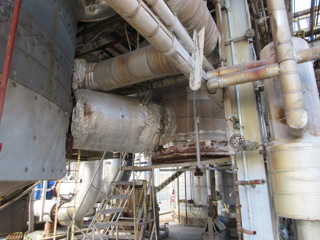

Carbon Steel Houston Heat Exchanger Shell and Tube Heat Exchanger - IPP# 246930

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Houston Heat Exchanger

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 545 m² (5,850 ft²)

Orientation: Vertical

After Cooler With expansion joint

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 2.8 bar (40 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,400 mm (56 in). Head Material: Carbon Steel. Length: 4,900 mm (192 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 1,423. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,800 mm (189 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Two 20",one 8" one 6" two 2" one 1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Heatran

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 1,050 m² (11,300 ft²)

Orientation: Horizontal

• TEMA type: DED

Shell Pressure: 179.3 bar (2,600 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Carbon Steel. Tube Pressure: 179.3 bar (2,600 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,050 mm (41 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 1,850. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,600 mm (456 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: (2) 16" - Tube nozzles: (2) 16".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Heatran

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 1,050 m² (11,300 ft²)

Orientation: Horizontal

• TEMA type: DED

Shell Pressure: 179.3 bar (2,600 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Carbon Steel. Tube Pressure: 179.3 bar (2,600 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,050 mm (41 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 1,850. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,600 mm (456 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: (2) 16" - Tube nozzles: (2) 16".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Heatran

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 553 m² (5,950 ft²)

Orientation: Horizontal

TEMA type DED

Shell Pressure: 179.3 bar (2,600 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Carbon Steel. Tube Pressure: 179.3 bar (2,600 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Carbon Steel. Shell Diameter: 889 mm (35 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 1,300. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 8,550 mm (336 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzle sizes: Shell (2) 16", tube (2) 16".
