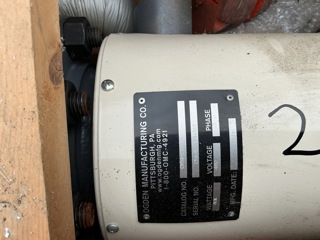

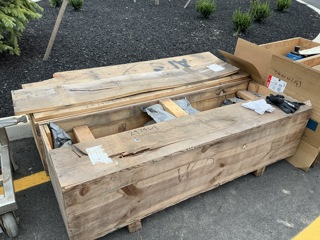

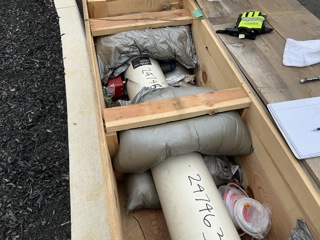

Carbon Steel Electric 18 K watts Shell and Tube Heat Exchanger - IPP# 247462

  • Carbon Steel Electric 18 K watts Shell and Tube Heat Exchanger - IPP# 247462 Carbon Steel Electric 18 K watts Shell and Tube Heat Exchanger - IPP# 247462
  • Carbon Steel Electric 18 K watts Shell and Tube Heat Exchanger - IPP# 247462
Overview
Heat Exchanger
Shell and Tube
Ogden
CK3A 0319
Unused
Carbon Steel
Dimensions
Vertical
1,050 mm (42 in)
Shell
10.3 bar (150 psi)
Carbon Steel
158.8 mm (6.3 in)
1
Tube
10.3 bar (150 psi)
Carbon Steel
Carbon Steel
1
U-Tube
Other Specifications
Carbon Steel
Two 1" NPT
Additional Information
  • Electric- 3 phase, 480 volt, 12k watts.
  • General Purpose NEMA 1 terminal Housing.
  • Fiberglass insulation.
  • Bottom nozzle is inlet, top nozzle is outlet.
  • Separate thermostat-Catalog # AR215 277 VAC, 30 amp.
  • Takes a 1" flexible conduit

Similar Equipment

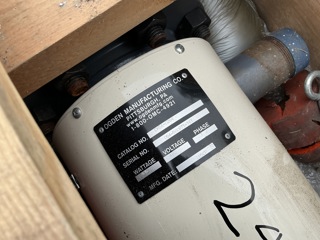

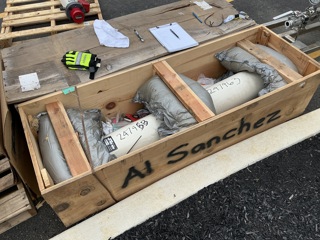

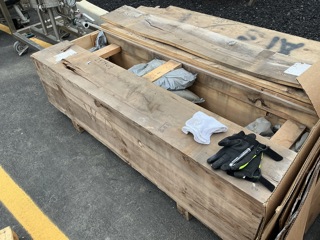

Carbon Steel Electric 40K watts Shell and Tube Heat Exchanger
