See list of Shell and Tube Heat Exchangers
Filter Search...

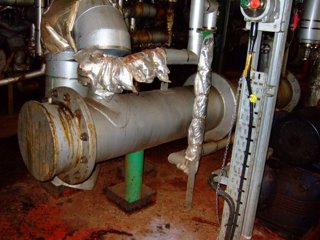

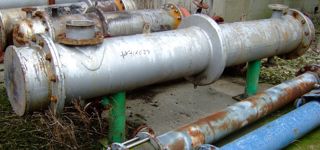

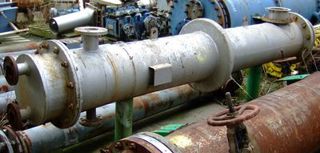

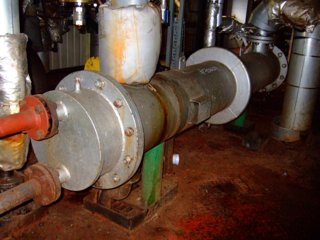

IPP# 706597, 24 m² (258.3 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale
Add To Quote
Condition:
Used
Material:
Stainless Steel 316
Manufacturer:
Stainless Steel Fabrications LTD
Heat Transfer Surface Area:
24 m² (258.3 ft²)
Orientation:
Horizontal
Shell Pressure:
1.01 bar (14.7 psi)
Shell Temperature:
250 °C (482 °F)
Shell Material:
Stainless Steel 316
Tube Pressure:
4.1 bar (60 psi)
Tube Temperature:
75 °C (167 °F)
Tube Material:
Stainless Steel 316
Vacuum:
Yes
Shell Diameter:
560 mm (22 in)
Head Material:
Carbon Steel
Length:
3,050 mm (120.1 in)
Tube-side Passes:
4
Tube Number:
122
Tube Diameter:
25 mm (0.98 in)
Tube Length:
2,500 mm (98.4 in)
Tube Thickness:
2 mm (0.08 in)
Nozzle Schedule:
openings tubeside - 2-75mm, 4-6mm, shell - 2-300mm, 1-75mm, 1-20mm
Additional Info:
Additional features: expansion bellow, (2) carbon steel channel heads,
