120.7 m² (1,299 ft²) Inconel Shell and Tube Heat Exchanger For Sale - IPP# 99497

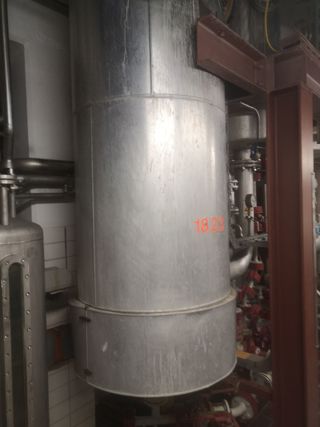

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Enco

Condition: Used

Material: Inconel

Heat Transfer Surface Area: 16 m² (172.2 ft²)

Orientation: Vertical

Tube Type:Incolloy 686 TUV design pressure tubeside -1/1 bar @ 200 degrees C (480 liter) shell -1/13 bar @ 200 degrees C (290 liter) 4mm thick Incolloy 686 (2.4606) shell (2) Incolloy 686 (2.4606) dished heads

Shell Pressure: 13 bar (188.5 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Inconel. Tube Pressure: 1 bar (14.5 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Inconel. Tubesheet Material: Inconel. Vacuum: Yes. Shell Diameter: 650 mm (25.6 in). Head Material: Inconel. Length: 2,828 mm (111.3 in). Tube-side Passes: 1. Tube Number: 76. Tube Diameter: 49 mm (1.93 in). Tube Length: 1,600 mm (63 in). Tube Thickness: 3.2 mm (0.13 in). Nozzle Schedule: openings tube side: 1-head with 1-300mm, 1-38mm, 1-head with 1-150mm, 1-25mm, shell: 1-125mm, 1-40mm, 2-25mm.

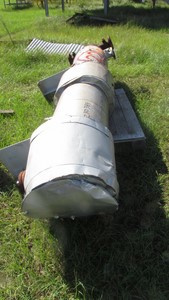

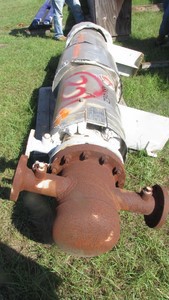

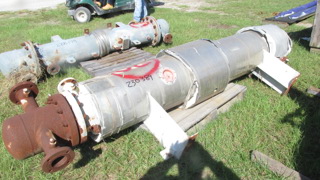

Type: Heat Exchanger

Subtype: Shell and Tube

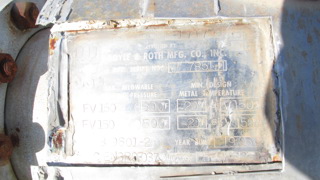

Manufacturer: Doyle and Roth

Condition: Used

Material: Inconel

Heat Transfer Surface Area: 8.6 m² (93 ft²)

Orientation: Horizontal

Inconel A-600(SB163) Tubes

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Inconel. Tubesheet Material: Nickel. Vacuum: Yes. Head Material: Carbon Steel. Length: 2,229 mm (87.8 in). Tube Type: Straight Tube. Tube Number: 66. Tube Diameter: 25.4 mm (1 in). Tube Length: 1.52 mm (0.06 in). Tube Thickness: 2,229 mm (87.8 in). Nozzle Schedule: Two 3" nozzles, Two 2" nozzles, Six 3/4"couplings..

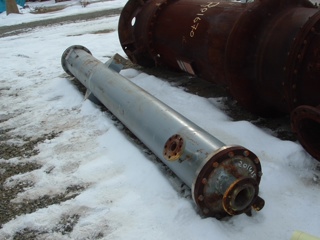

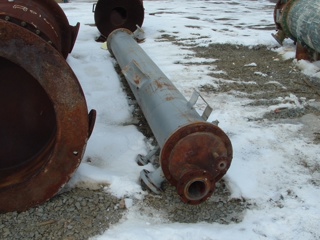

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: LJE Brunner Corp.

Condition: Used

Material: Inconel

Heat Transfer Surface Area: 17.5 m² (188 ft²)

Shell Pressure: 13.8 bar (200 psi)

steel shell and heads tube : 0.65"BWG

Shell Temperature: 343.3 °C (650 °F). Tube Pressure: 4.5 bar (65 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Inconel. Shell Diameter: 355.6 mm (14 in). Length: 4,115 mm (162 in). Tube Number: 60. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,658 mm (144 in). Nozzle Schedule: Openings: Tube side: 2-4", shell 1-2", 1-3".
