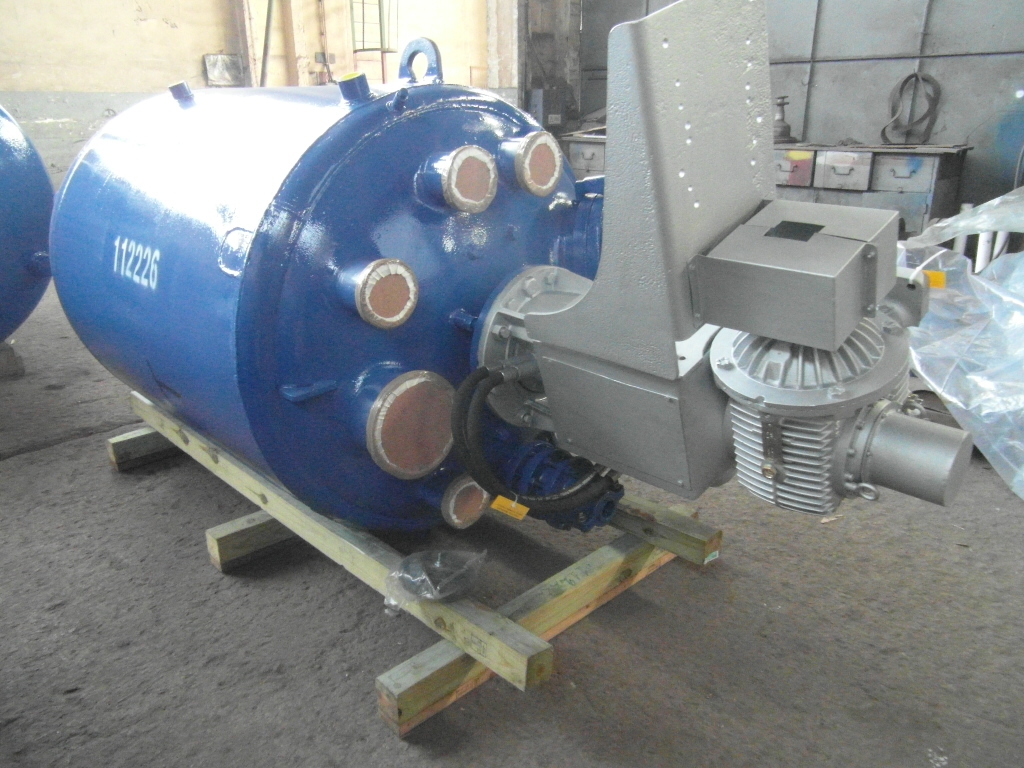

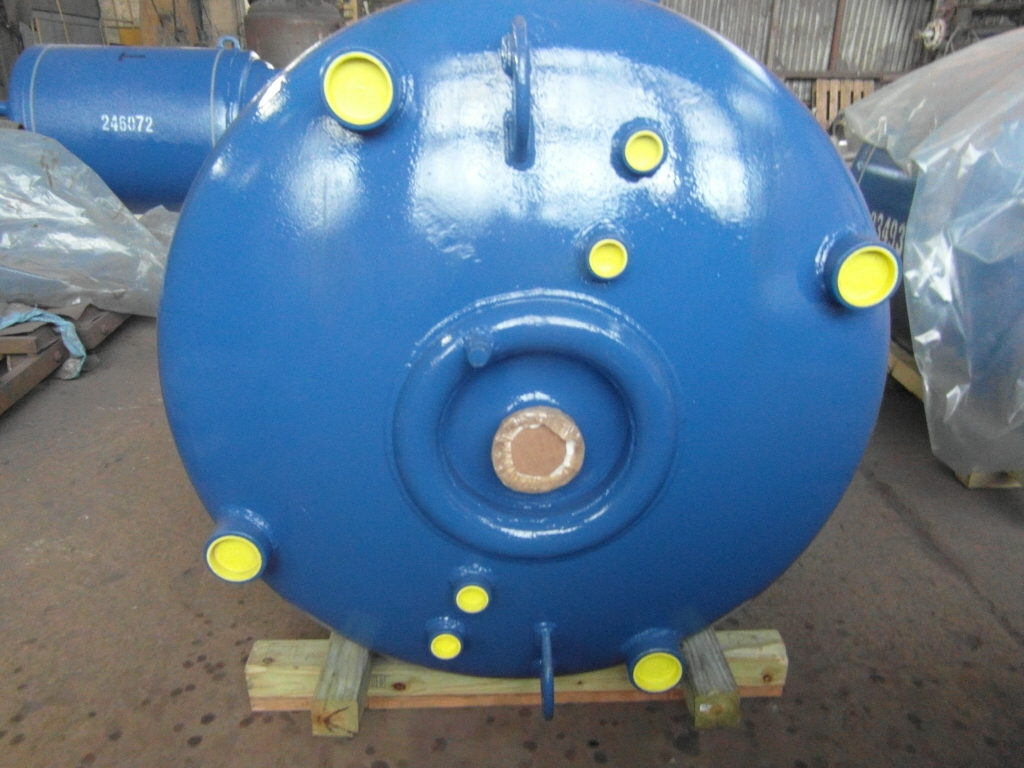

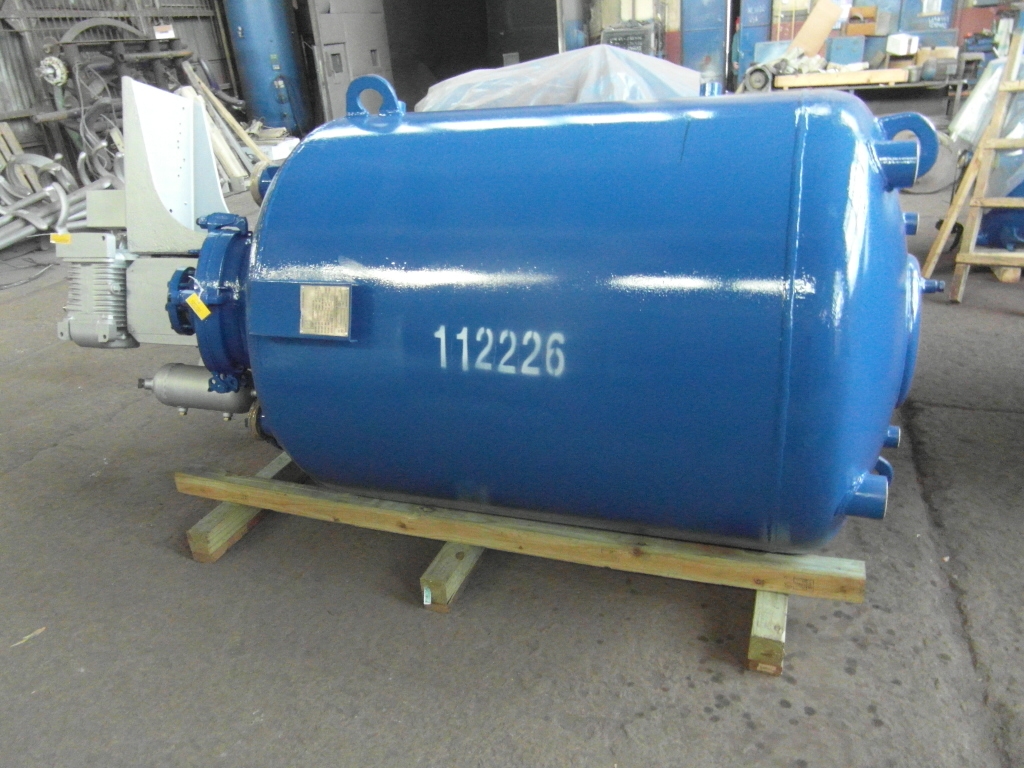

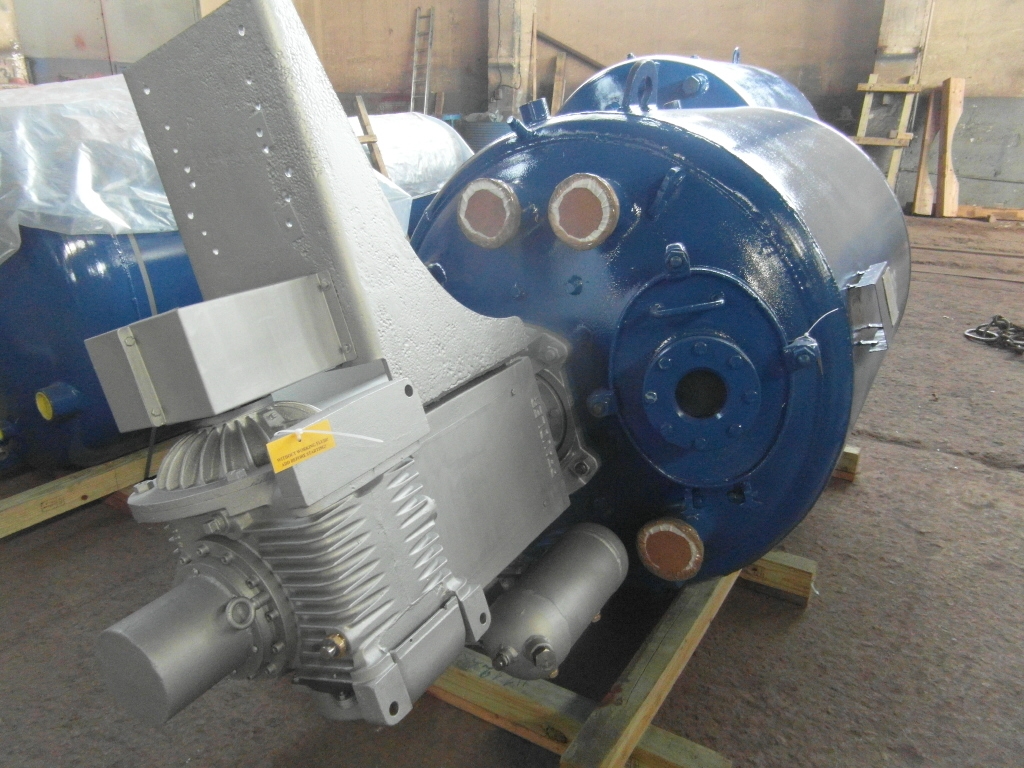

500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226

  • 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226
  • 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226
  • 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226
  • 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226
  • 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226
  • 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226
  • 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226
  • 500 Gal Glass-Lined Batch-Type Agitated Reactor – DeDietrich ASME Certified - IPP# 112226
Overview
Reactor
Batch-Type Agitated
DeDietrich
Re-glassed
Glasslined
1,900 L (500 gallons)
Glass Lined
Pressure Vessel
2.8 bar (40 psi)
176.7 °C (350 °F)
Jacket/Internal Coil
5.2 bar (75 psi)
176.7 °C (350 °F)
Standard
Carbon Steel
Dimensions
Vertical
1,200 mm (48 in)
1,500 mm (58.8 in)
Agitation System
Yes
CBT
Mechanical
4 RW Drive system with wet lubricator
Beavertail
removable tip
Heads
Elliptical
Glasslined
Elliptical
Glasslined
Other Specifications
Yes
Legs
Inlets & Outlets
Bottom has openings: 1-3". 12 x 16 manway with sight glass, One 8" nozzle, six 4" nozzles.
Glass Details
Full Fire Polish (FF)
Very Clean (VC)
Additional Information
  • No Motor
