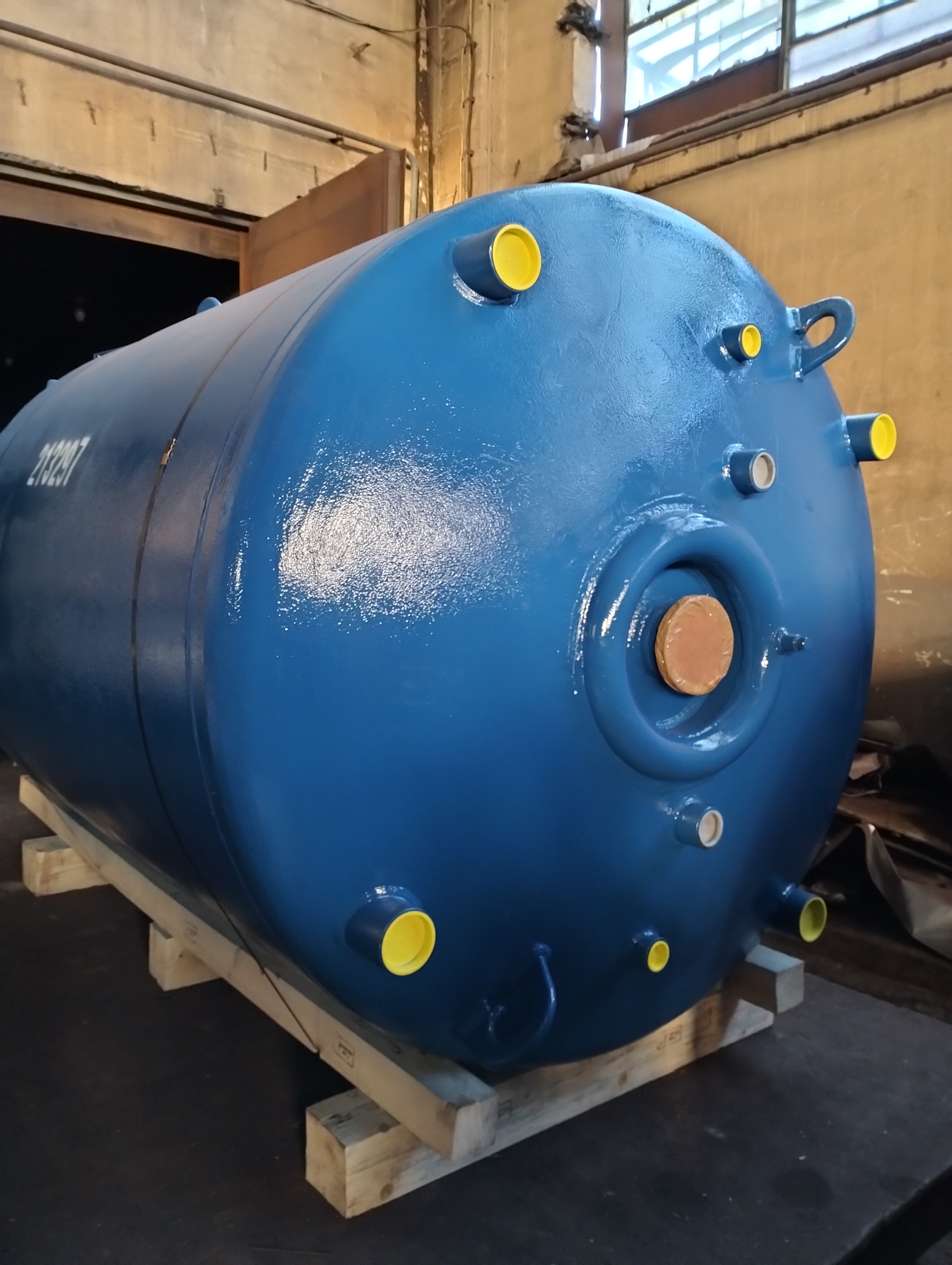

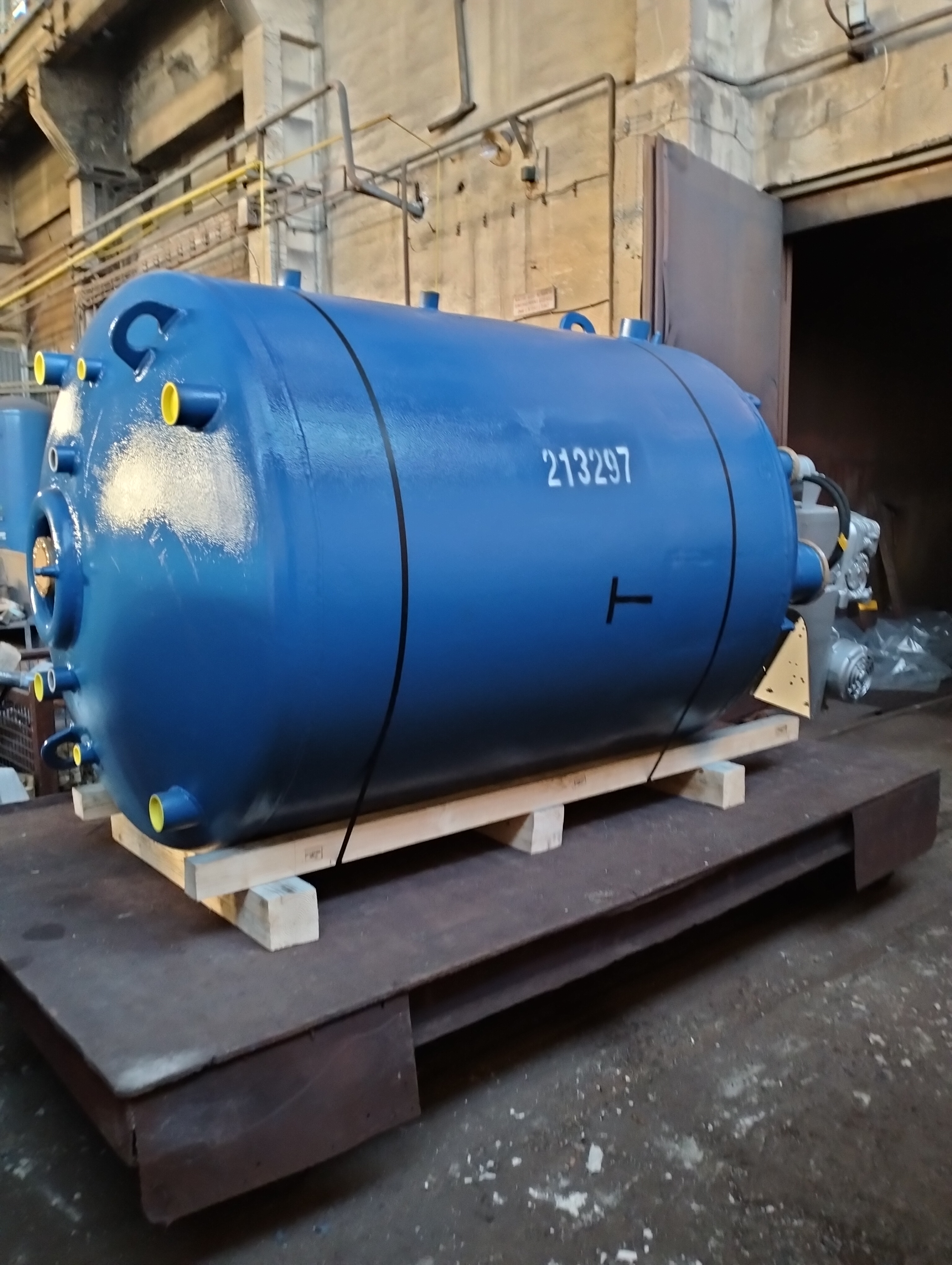

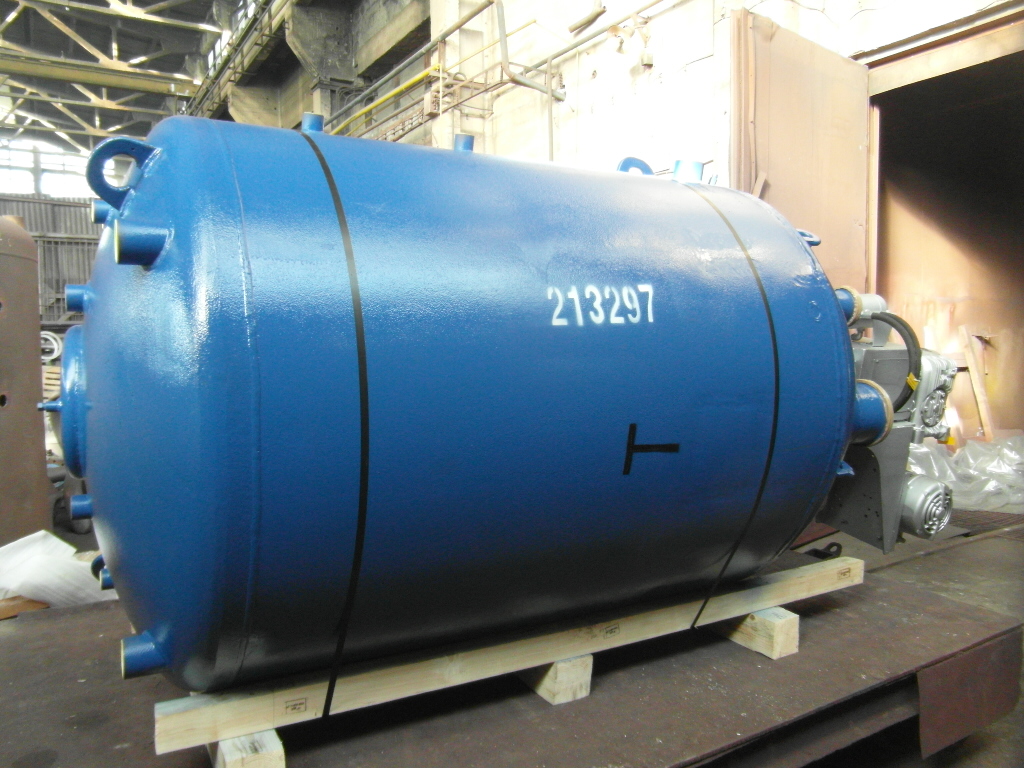

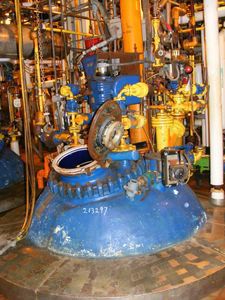

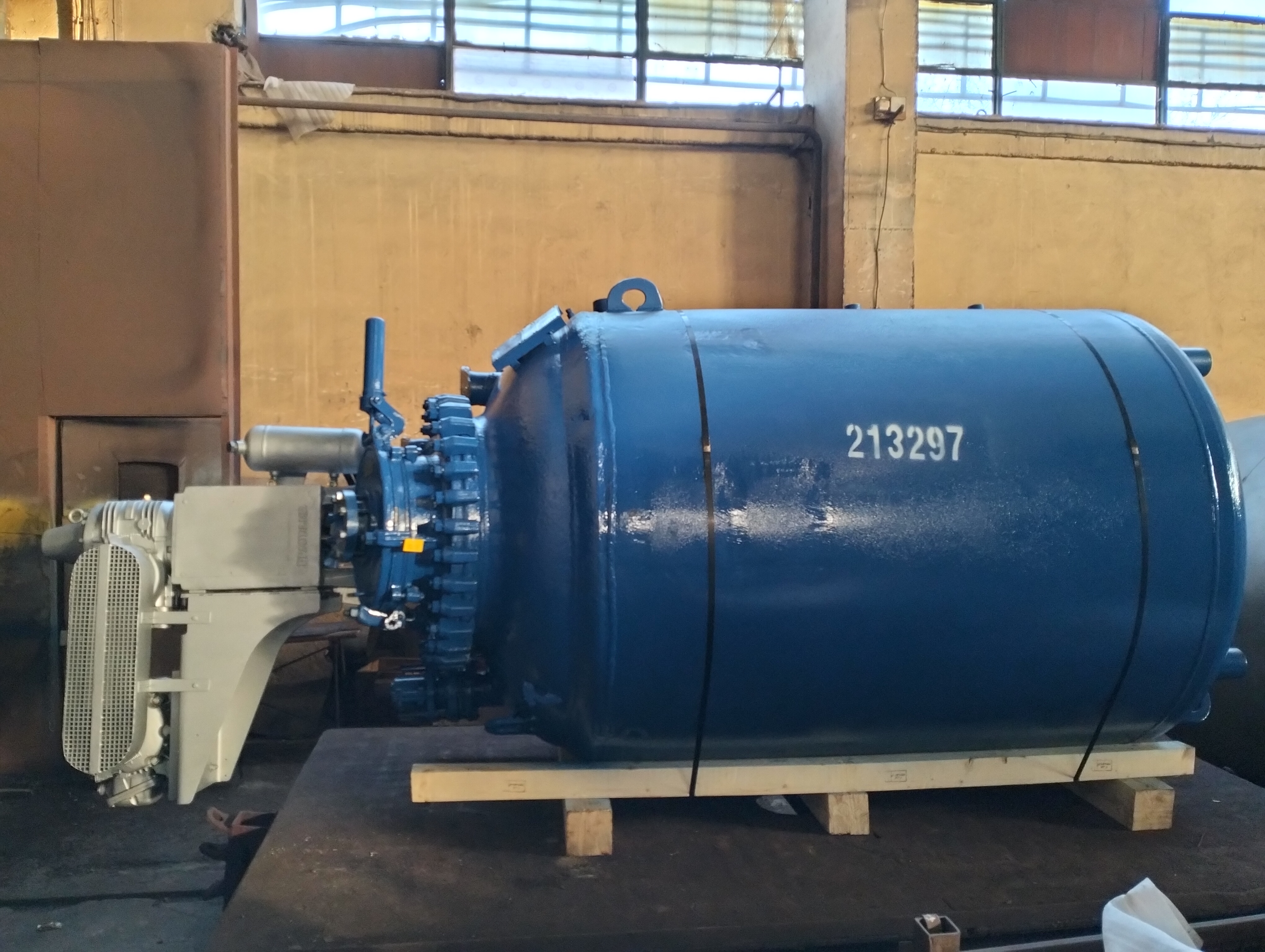

Name: 3,800 L (1,000 gallons) Glasslined Batch-Type Agitated Reactor
Brand: Pfaudler
SKU: 213297

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

Pfaudler

Model:

Condition:

Re-glassed

Material:

Glasslined

Capacity (Design):

3,800 L (1,000 gallons)

Pressure Vessel

Internal Pressure:

6.9 bar (100 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

232.2 °C (450 °F)

Jacket/Internal Coil

Jacket Pressure:

6.2 bar (90 psi)

Jacket Temperature:

176.7 °C (350 °F)

Agitation System

Agitation:

Yes

Agitator Details:

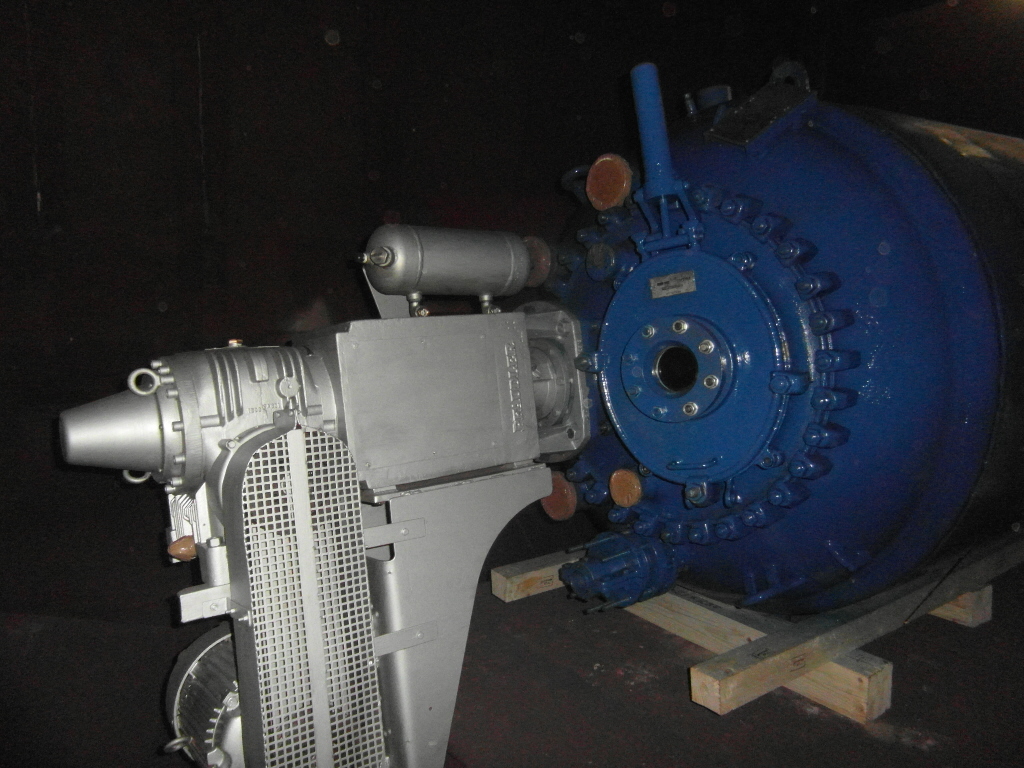

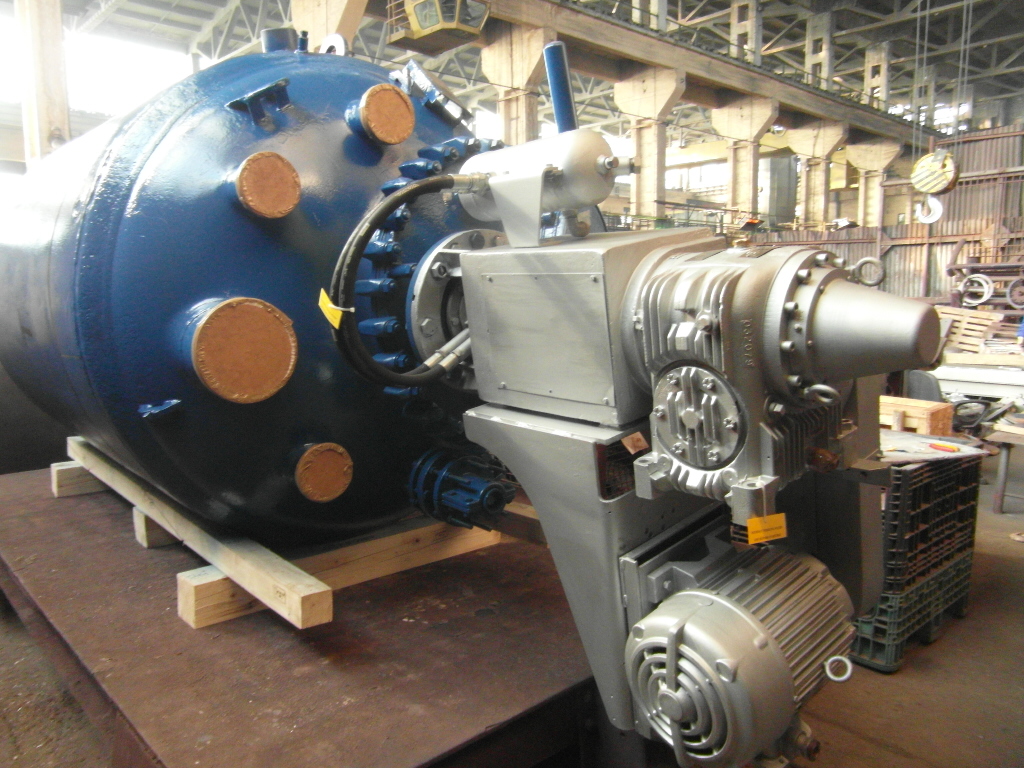

Top mounted 5 RW drive,belt driven. OA ration 15:1, 2.5-15 HP AC drive motor, dual speed motor rated for 260-1760 rpm. Three blade retreat curve agitator, 117 rotations per minute. "H" Baffle

Motor Power:

11.2 kW (15 HP)

Baffle Type:

H-Baffle

Baffle Details:

"H" Baffle

Dimensions

Diameter:

1,700 mm (66 in)

Straight Side Length:

1,850 mm (73 in)

Heads

Top Head Type:

Dish

Bottom Head Type:

Dish

Inlets & Outlets

Nozzle Schedule:

30" main cover with 4 3/8" nozzle with bosses and two 2" nozzles, 14" x 18" man wat with protection ring, man way assist and 4" sight glass. One 8" nozzle, four 4" nozzles. One 4" center bottom nozzle

Other Specifications

Support Type:

Legs
