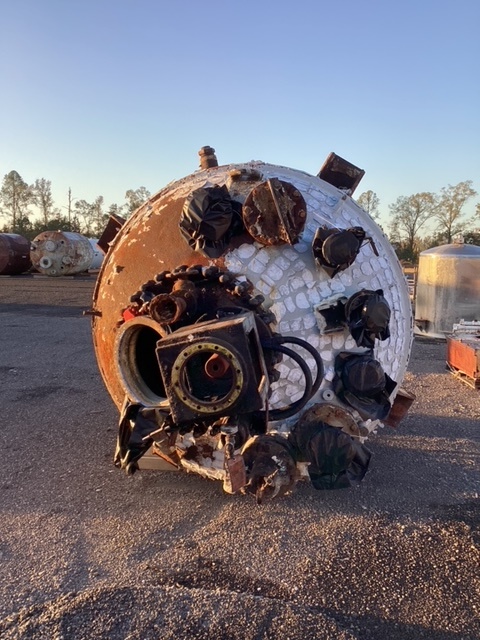

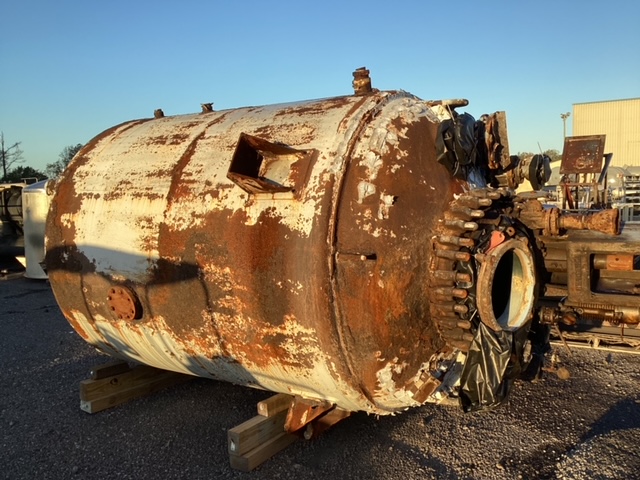

Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923

  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 235923
Overview
Reactor
Batch-Type Agitated
DeDietrich
Used
Glasslined
7,550 L (2,000 gallons)
Pressure Vessel
6.9 bar (100 psi)
Yes
260 °C (500 °F)
Jacket/Internal Coil
6.2 bar (90 psi)
260 °C (500 °F)
Dimensions
1,950 mm (76 in)
2,150 mm (84 in)
Agitation System
5RW drive with an approximately 20 HP motor. Model # FMDWV-50500-E00, serial # 5-00338P, rated for 124 rpm.Cryo-Lock agitator with 4 blade RCI agitator
14.9 kW (20 HP)

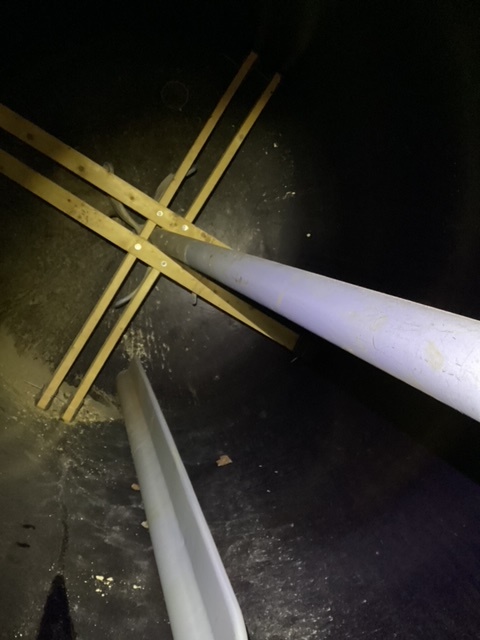

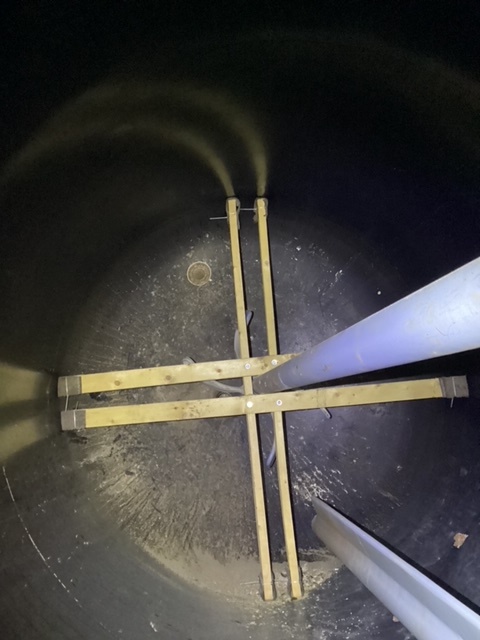

Finger Baffle
One fin baffle
Heads
Dish
Dish
Other Specifications
Yes
Lugs
Inlets & Outlets

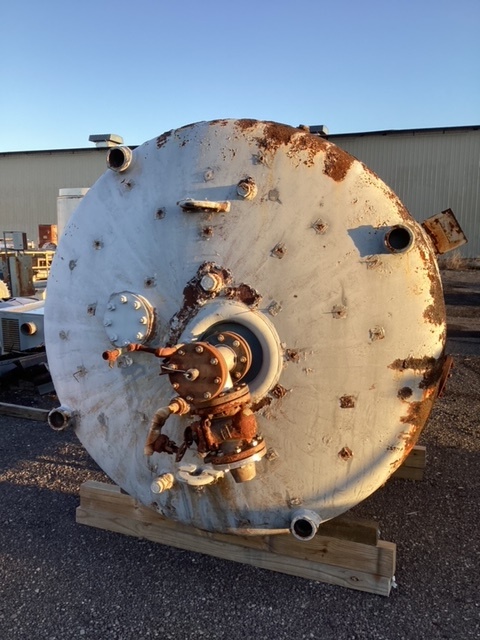

One 30" cover with 14" x 18" man way(man way cover missing), and pro ring with man way assist hinge, and two 3" nozzles and one drive nozzle. Top openings include two 6" nozzles two 8" nozzle , and three 4" nozzles. One center bottom nozzle 4".
