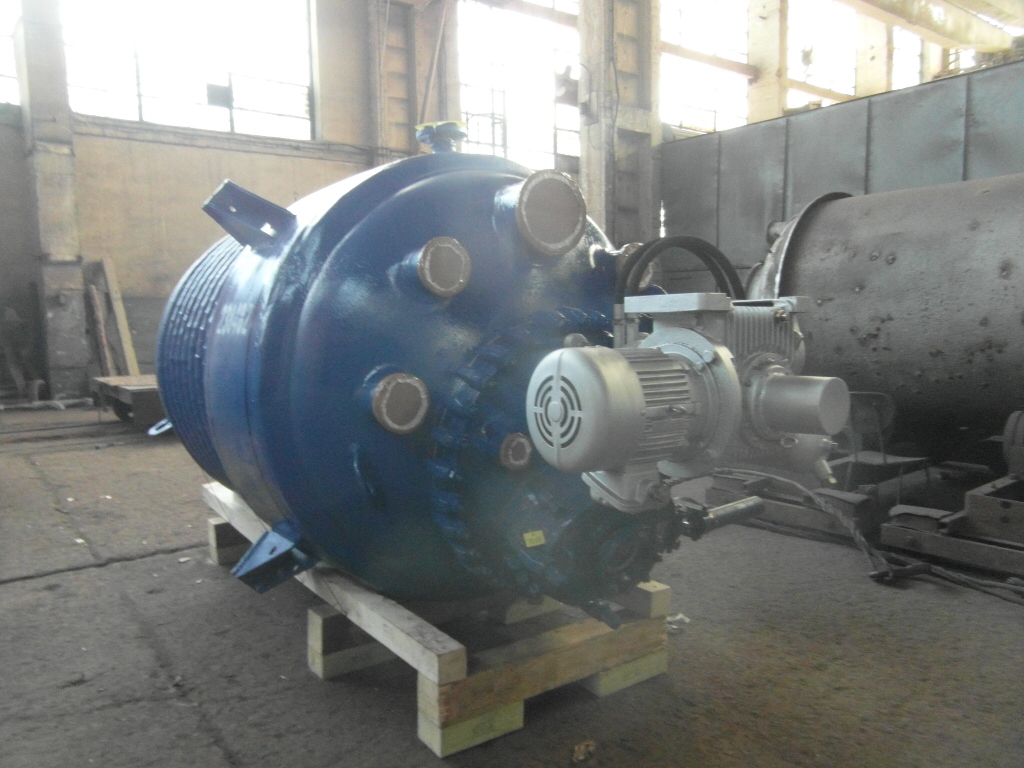

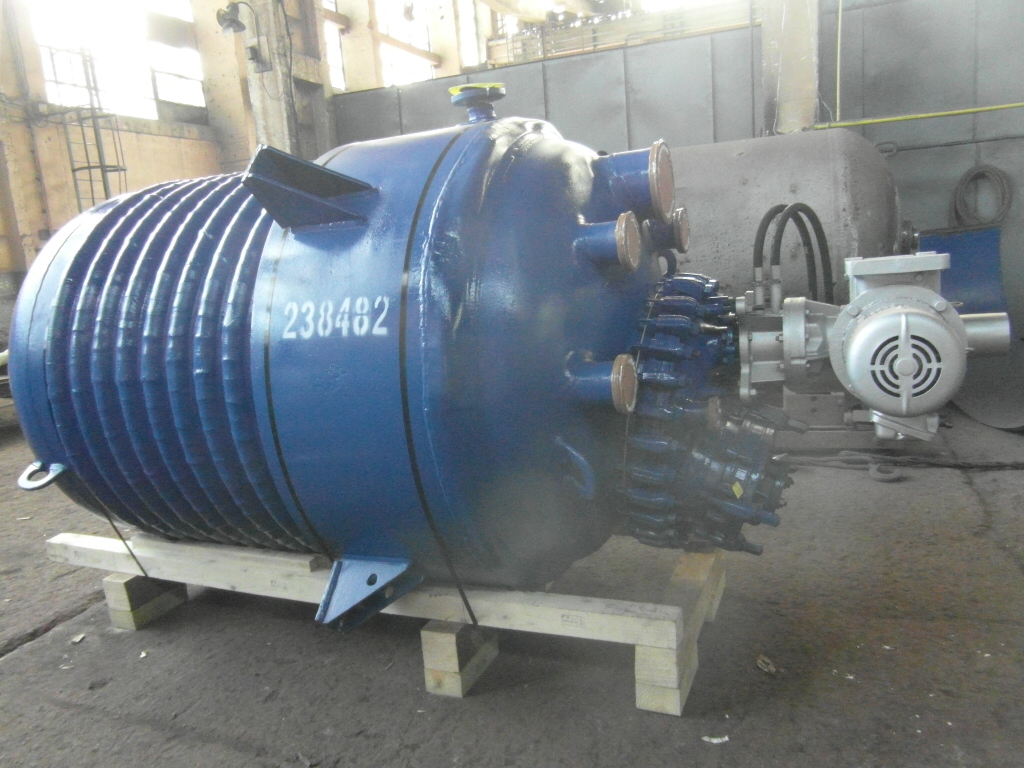

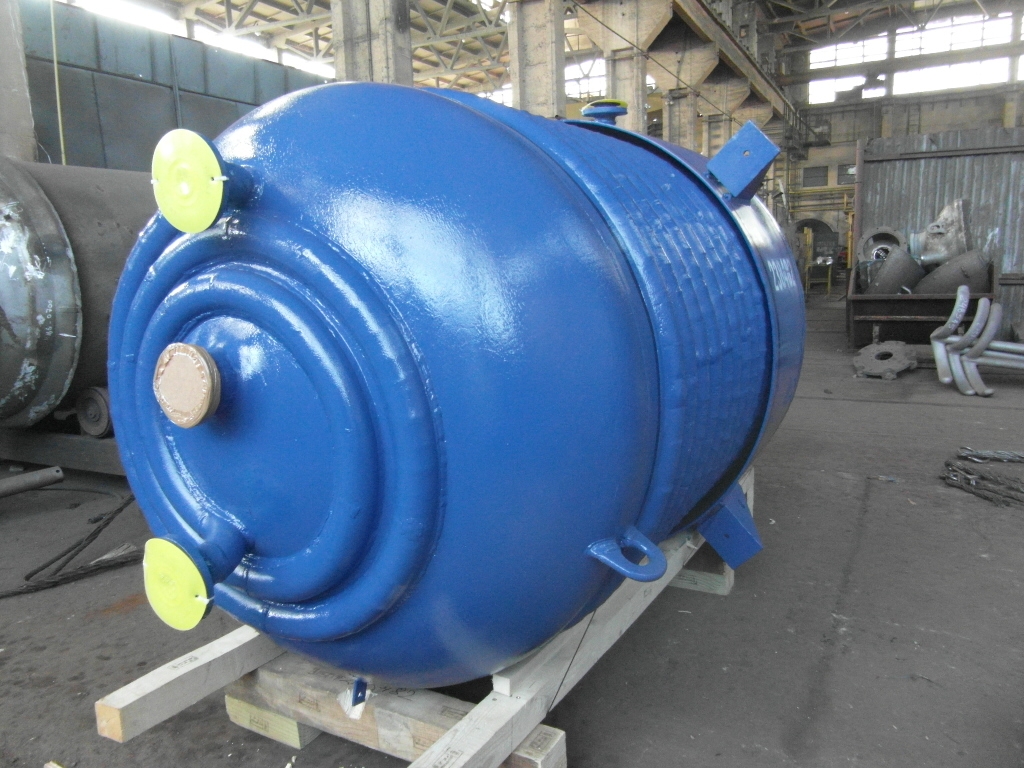

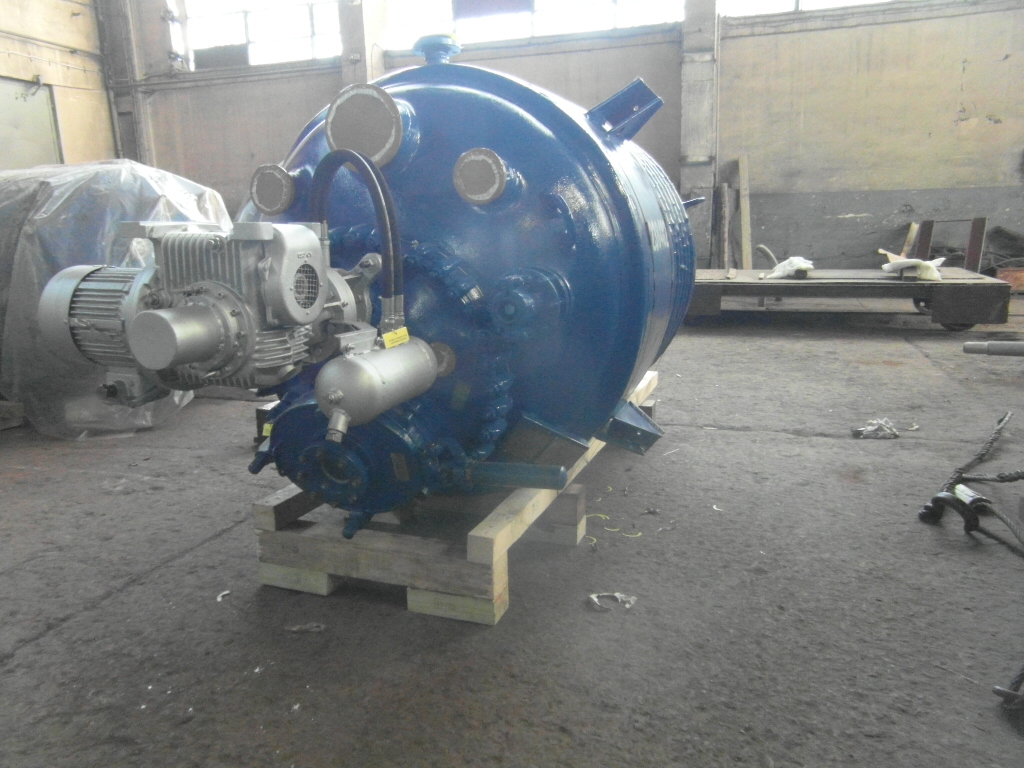

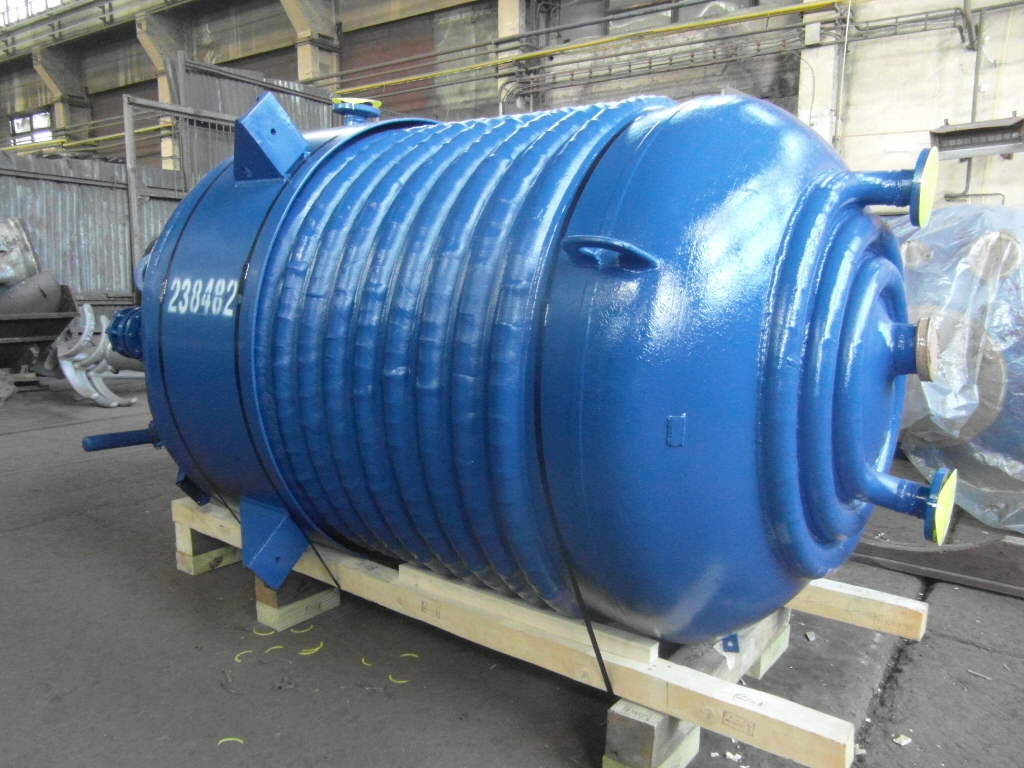

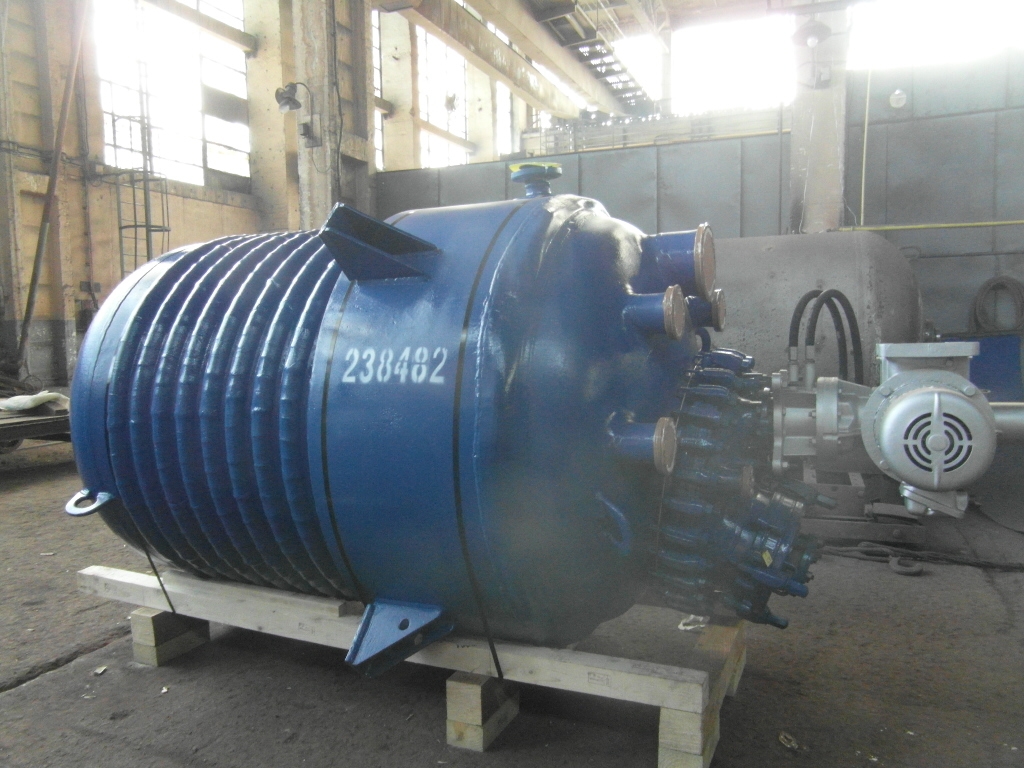

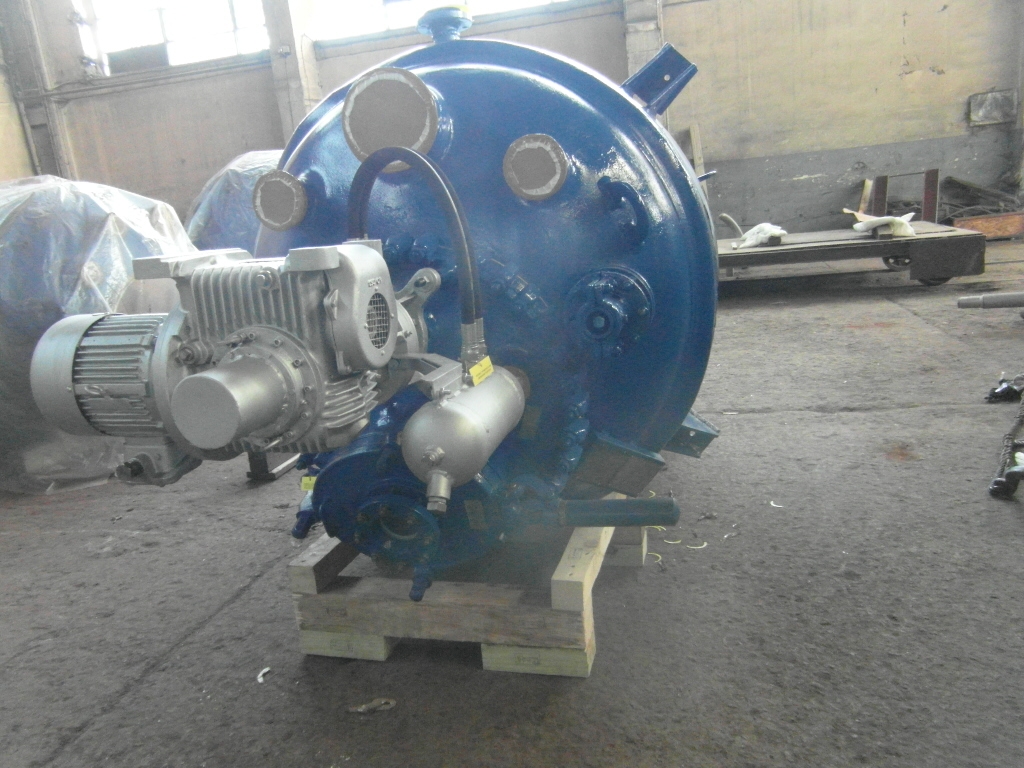

Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 238482

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• It has an mixer inside along with a baffle, but no drive system.

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 343.3 °C (650 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 2,032 mm (80 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,893 L (500 gallons)

Internal Pressure: 6.9 bar (100 psi)

• Base reactor

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight Side Length: 1,486 mm (58.5 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Internal Full Vacuum: Yes. Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• Bare Vessel

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 2,324 mm (91.5 in). Support Type: Legs.
