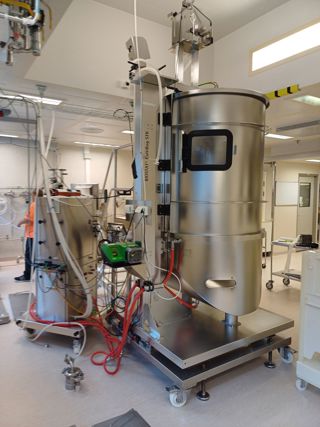

Biostat STR-200 bioreactor
Skid mounted system with controls
788 mm w x 1291 mm d x 1978 mm h.
Footprint = 1.02 m2

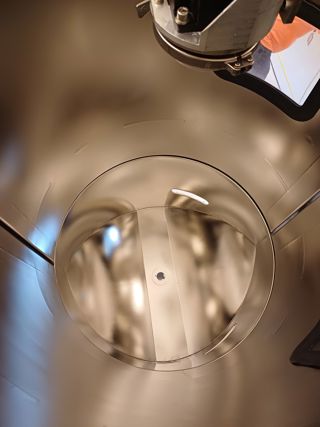

Double wall, electro polished, double front door, one viewing window. Two hinges allow the doore to open in the middle for bag replacement. Removable/Replacement bags have built in magnetic agitators internal to the bags.

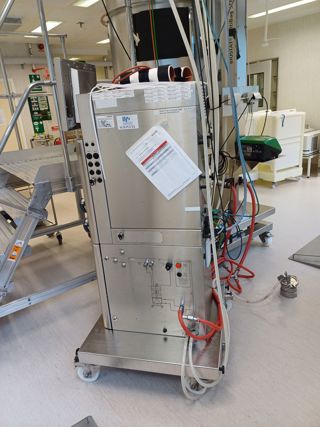

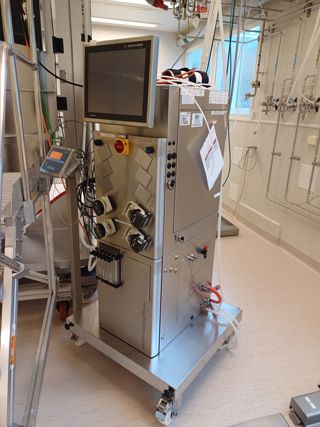

Two ports for sensors, top mounted drive. Control tower 304 SS with a 22" touch screen.
Power supply 400 vac/50 Hz/18A. With 150 rpm agitation module, and heating/cooling module. Rated for 8 degrees C above cooling water up to 40 degrees C, with over temperature protection, and 6 bar cooling water connection. Complete with Mass flow controllers, pumps, and measurement sensors.
Weight 410 kg.
With Snyder Electric UPS system APC 750.
With Pall Allegro system 200, (three 3) bag holders.
850 mm x 850 mm x 1 meter high.
