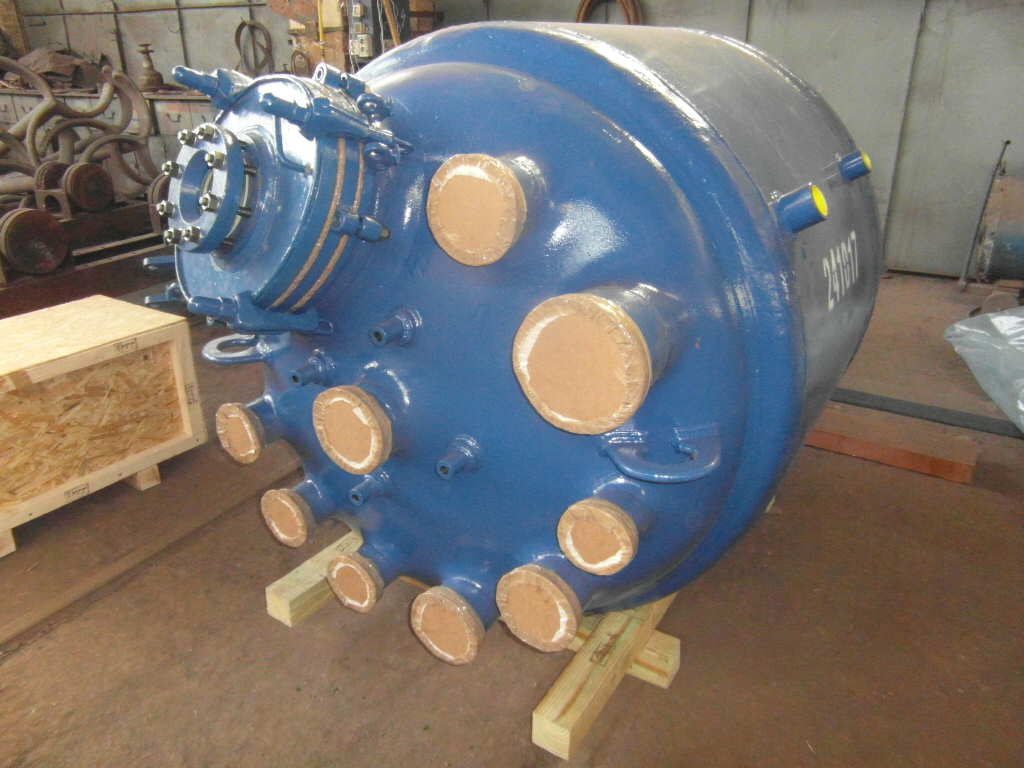

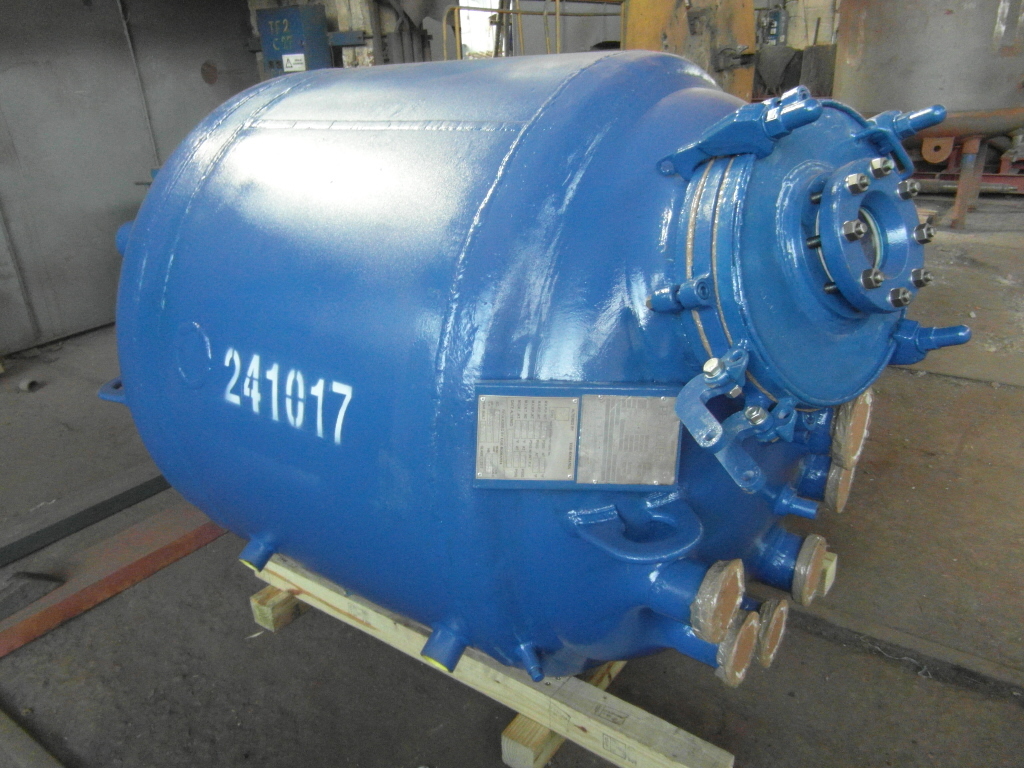

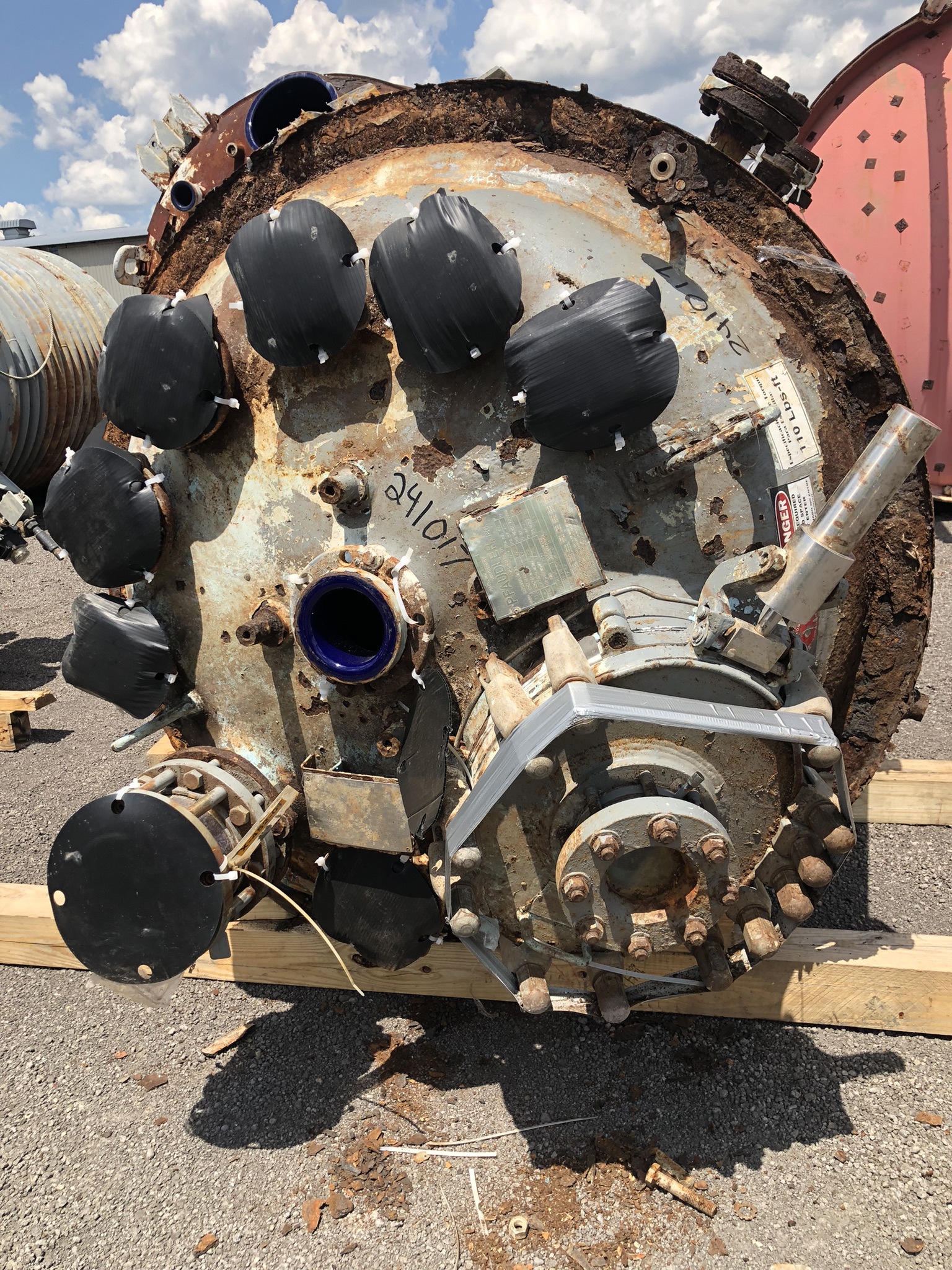

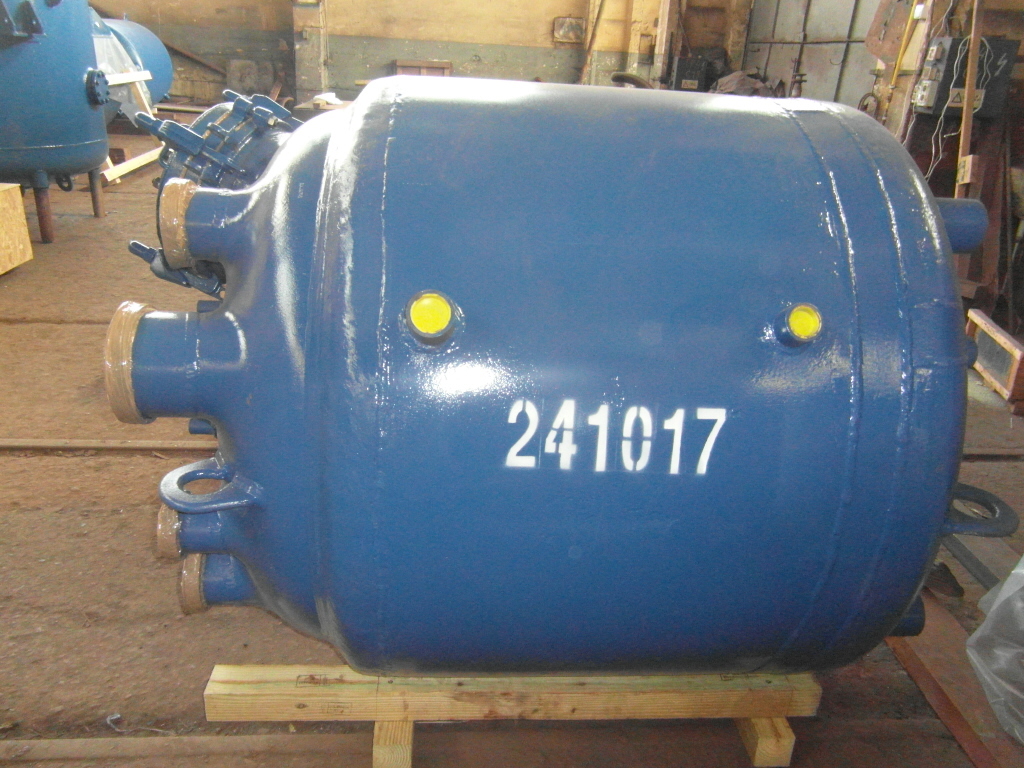

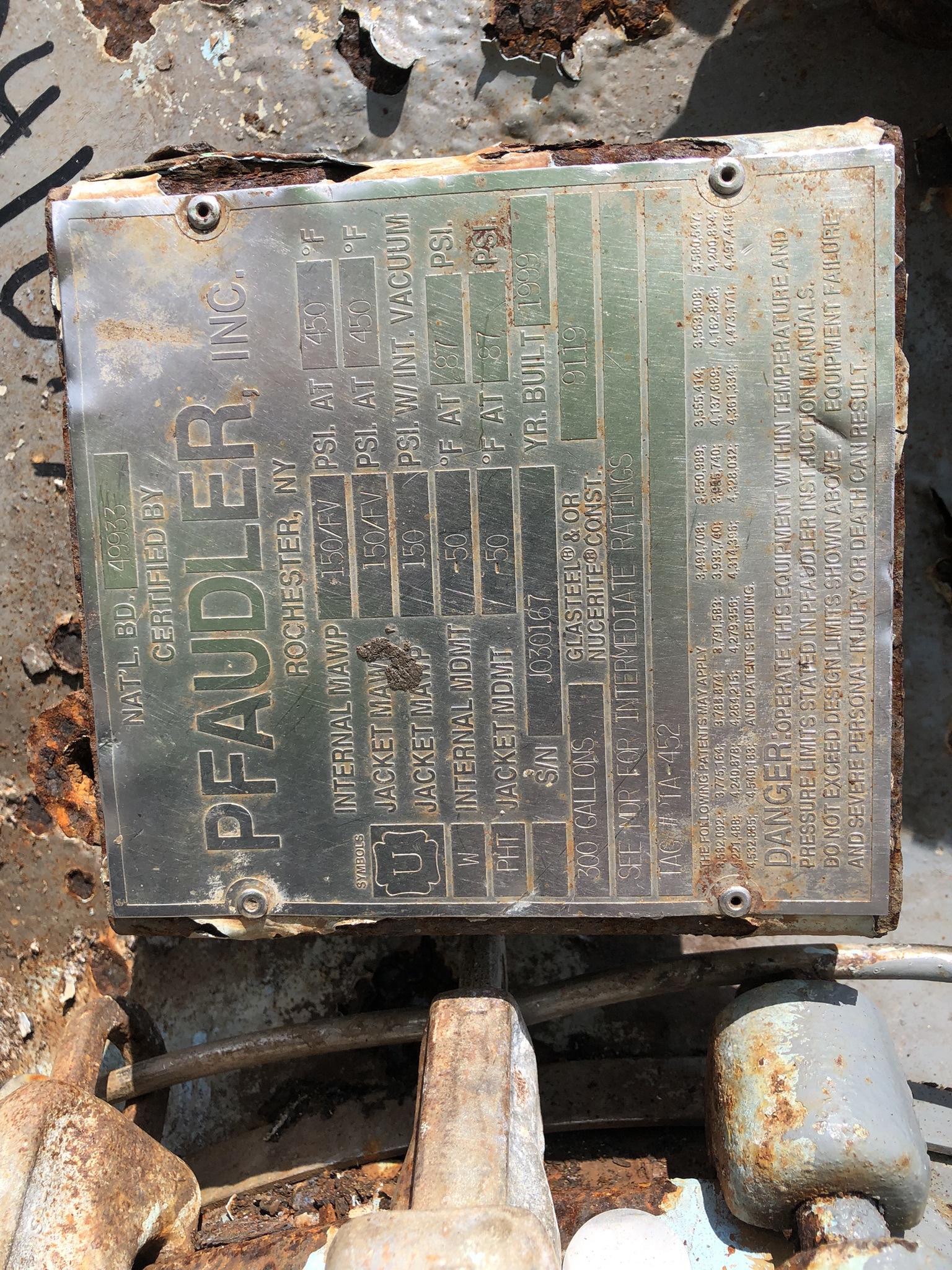

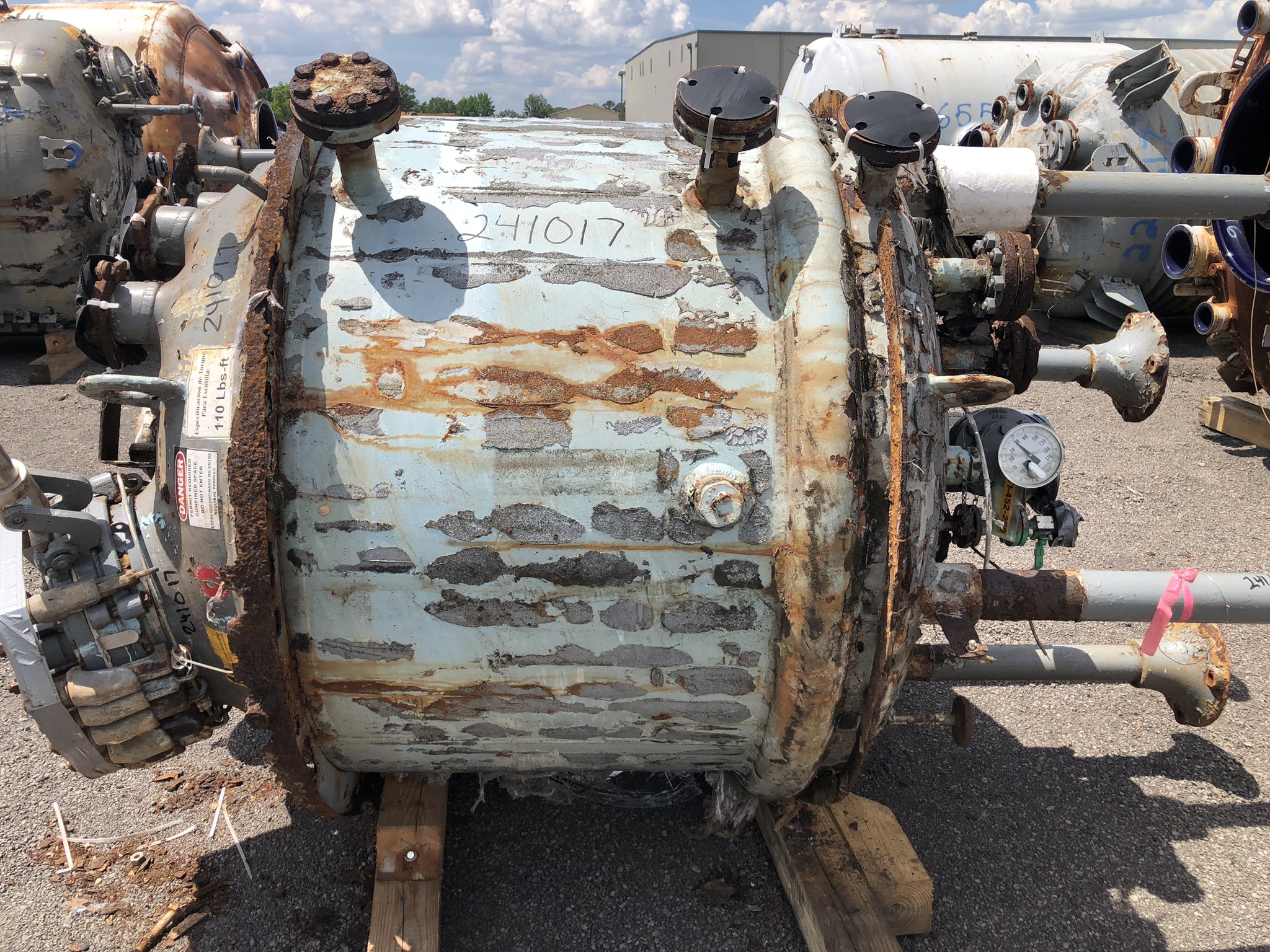

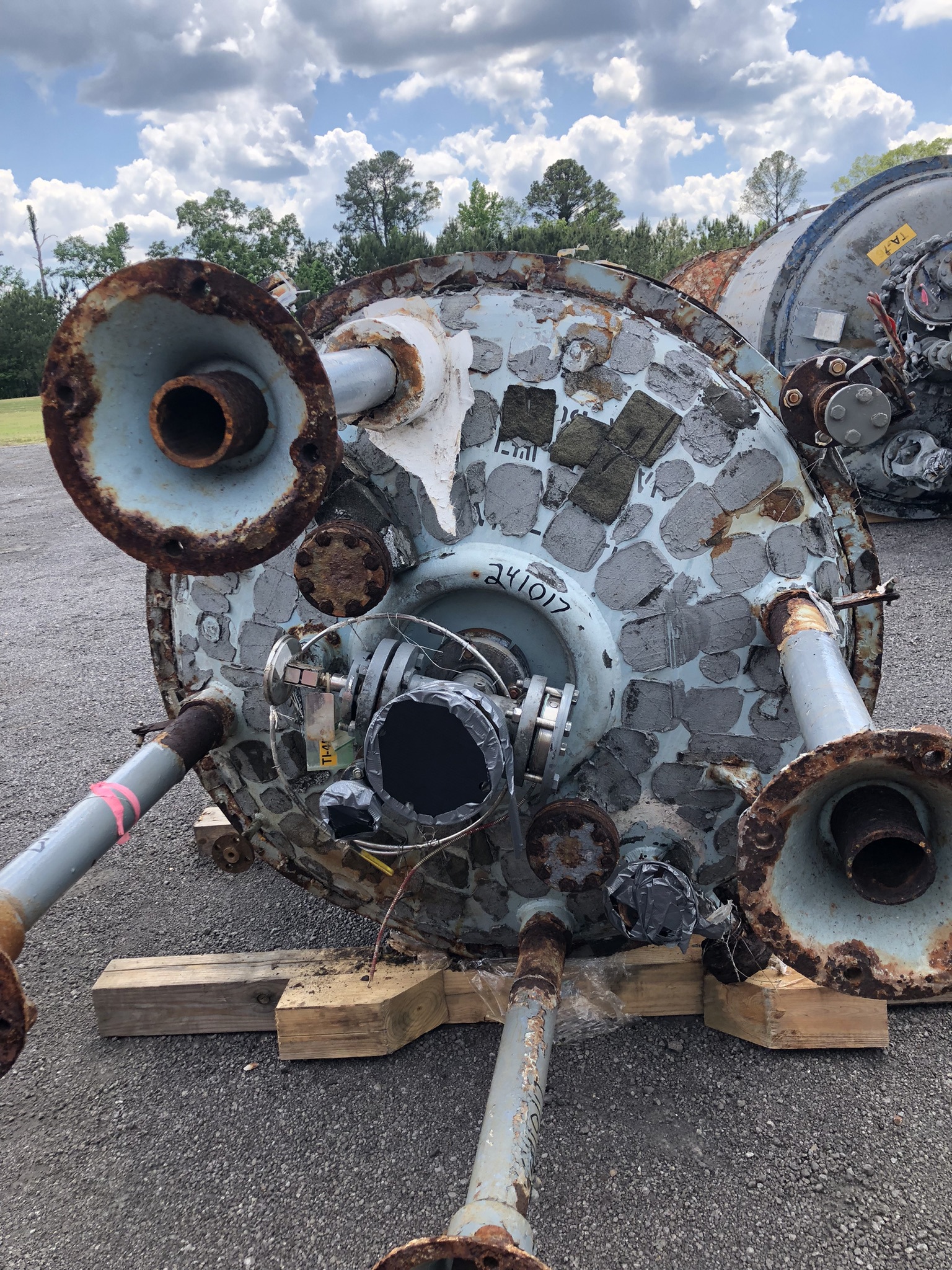

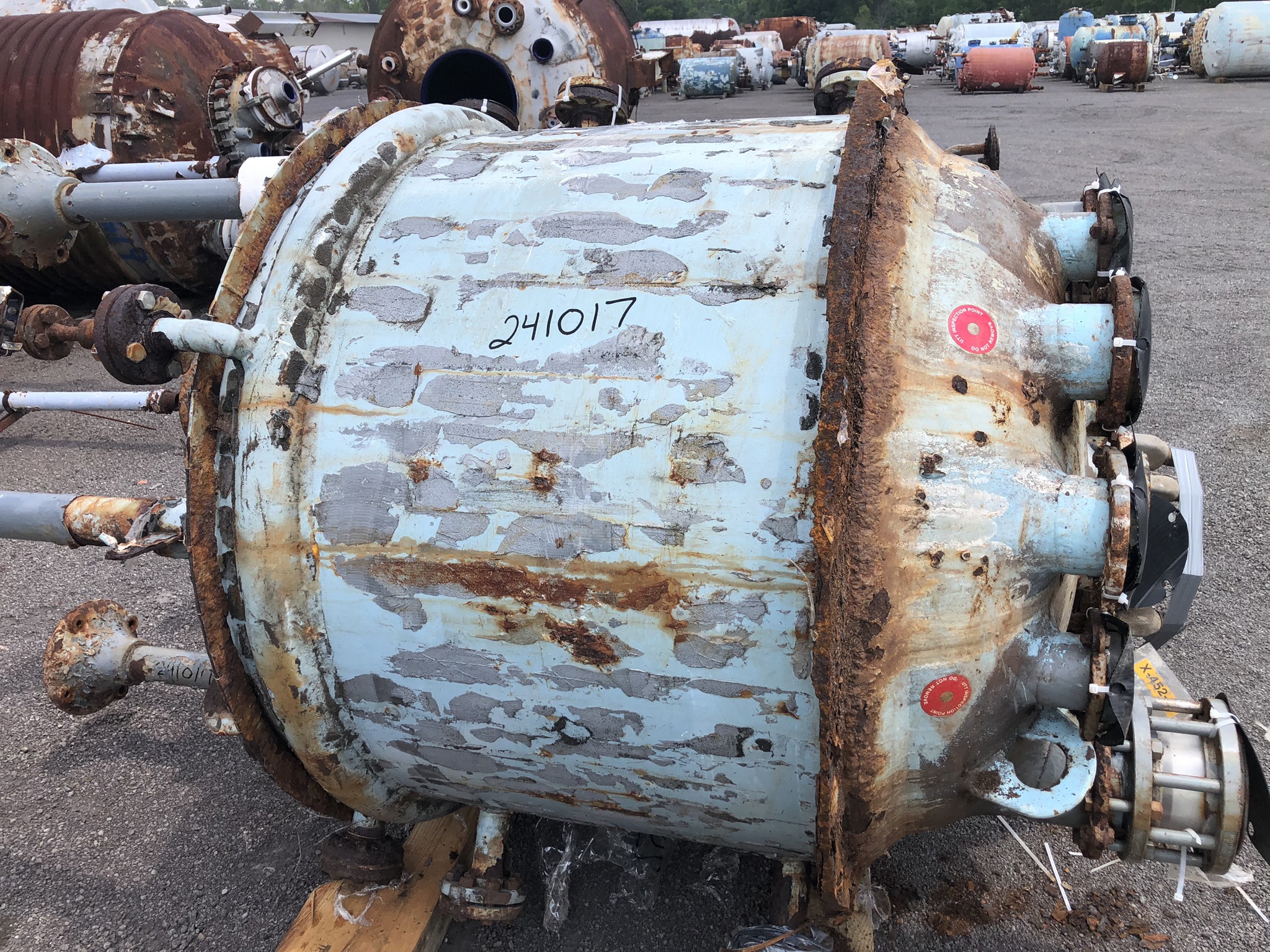

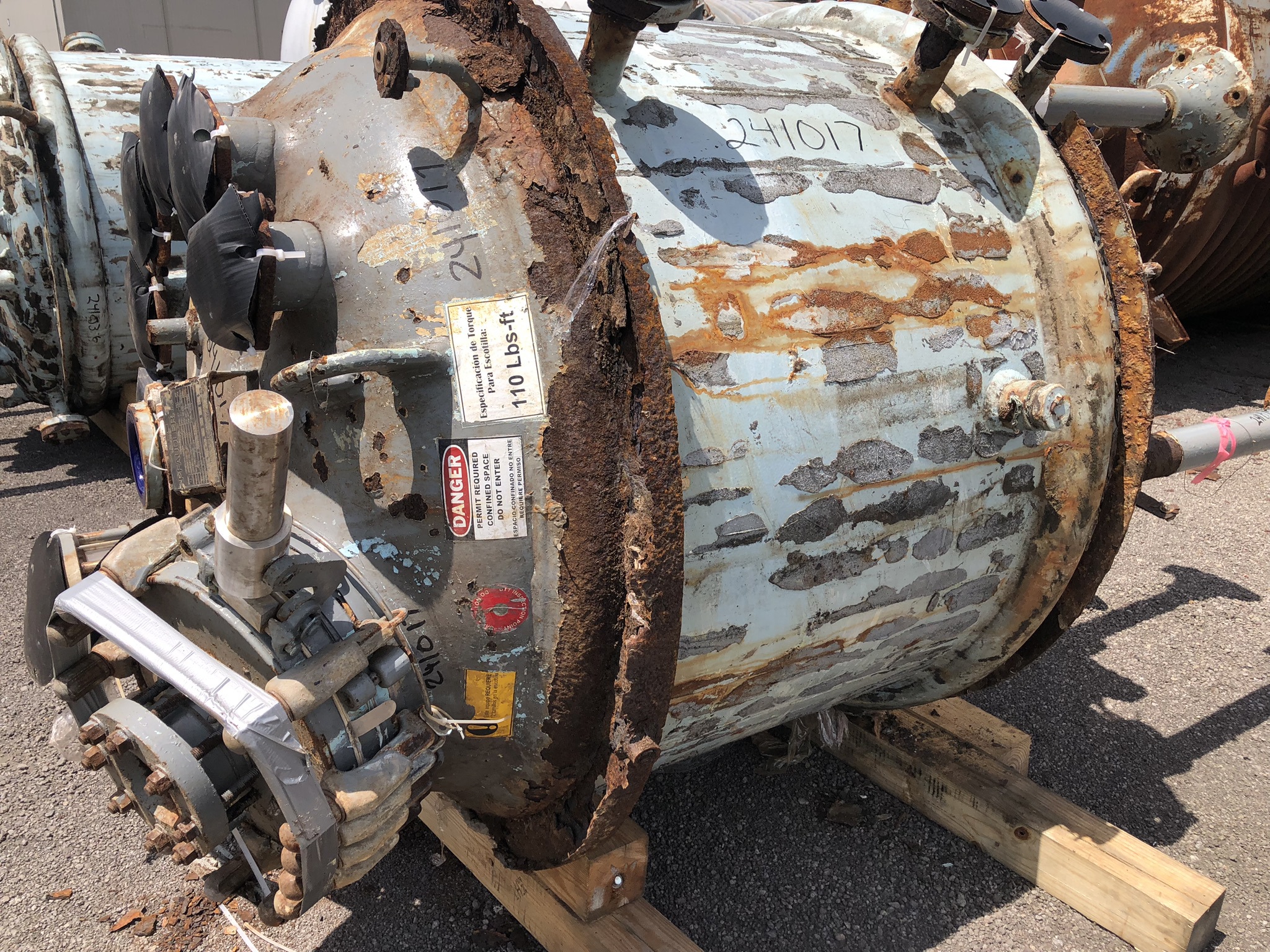

Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017

  • Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017 Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017
  • Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017 Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017
  • Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017 Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017
  • Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017 Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017
  • Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017
  • Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017
  • Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017
  • Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 241017
Overview
Reactor
Batch Type Body Only
Pfaudler
RS
Needs Reglass
Glasslined
1,136 L (300 gallons)
Glass Lined
Yes
Pressure Vessel
10.3 bar (150 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
10.3 bar (150 psi)
232.2 °C (450 °F)
Carbon Steel
Dimensions
Vertical
1,219 mm (48 in)
736.6 mm (29 in)
Heads
Elliptical
Glasslined
Elliptical
Glasslined
Other Specifications
Yes
Legs
Inlets & Outlets
One 14" x 18" man way with pro ring and sight glass assembly and man way assist. one 6" nozzle, one 4 & 3/8" drive nozzle, three 4" nozzles, five 3" nozzles, ten 2" jacket connections
  • This is a base Reactor

Similar Equipment

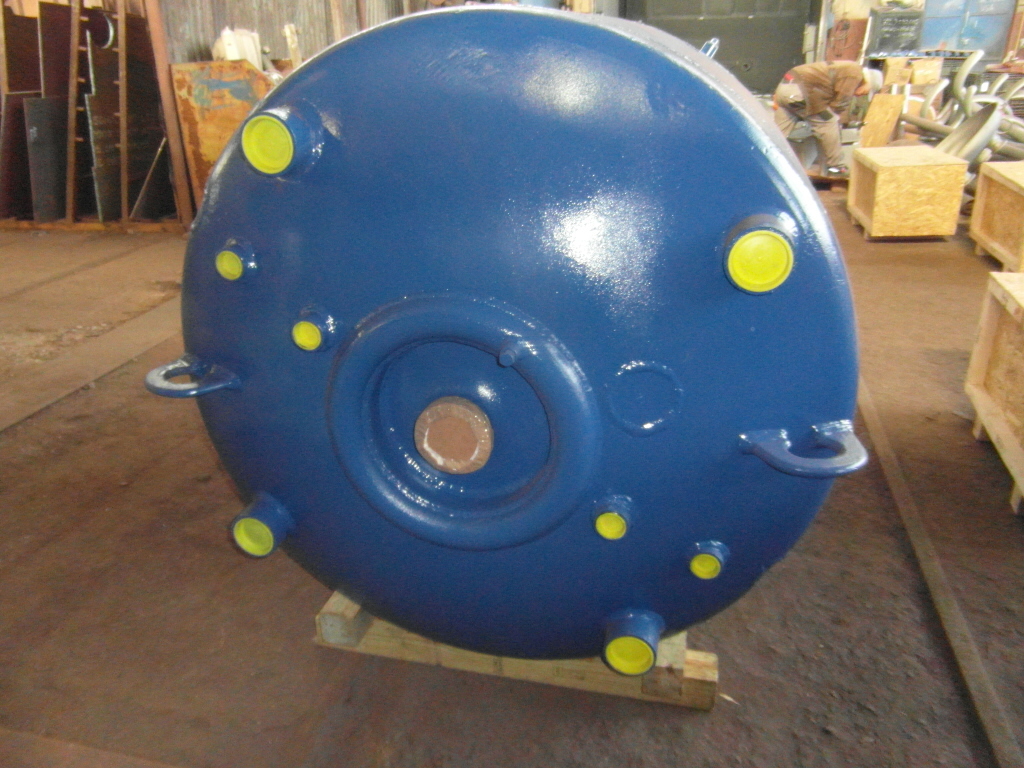

Unused Glasslined Pfaudler RS Batch Type Body Only Reactor

Unused Glasslined Pfaudler RS Batch Type Body Only Reactor

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Unused

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

  • Two zone jacket, delta on temperature between jackets must not exceed 286 degrees F.
  • 9119 glass,

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 2,032 mm (80 in). Support Type: Lugs.

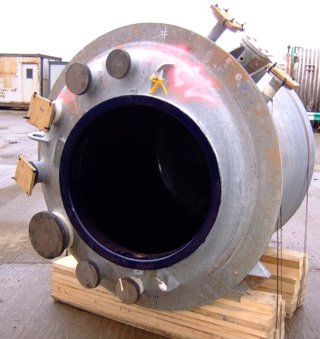

Unused Glasslined Pfaudler RS Batch Type Body Only Reactor

Unused Glasslined Pfaudler RS Batch Type Body Only Reactor

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Unused

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

  • Two zone jacket, delta on temperature between jackets must not exceed 286 degrees F
  • 9119 glass

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 2,032 mm (80 in). Support Type: Lugs.

Unused Glasslined Pfaudler RS Batch Type Body Only Reactor

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Unused

Material: Glasslined

Capacity (Design): 11,356 L (3,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

  • Dual rated 150 psi and full vacuum at +450 f/ 72psi and full vacuum at -50 F internal.
  • Dual rated jacketed for150 psi and full vacuum at 450 f/ 72 psi and full vacuum at -50F
  • 9119 glass

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight Side Length: 1,854 mm (73 in). Support Type: Legs.

Unused Glasslined Pfaudler RS Batch Type Body Only Reactor

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Unused

Material: Glasslined

Capacity (Design): 11,356 L (3,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

  • Can be sold as an assembly, see comments.
  • Dual rated 150 psi and full vacuum at +450 f/ 72psi and full vacuum at -50 F internal.
  • Dual rated jacketed for150 psi and full vacuum at 450 f/ 72 psi and full vacuum at -50F
  • 9119 glass

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight Side Length: 1,854 mm (73 in). Support Type: Lugs.
