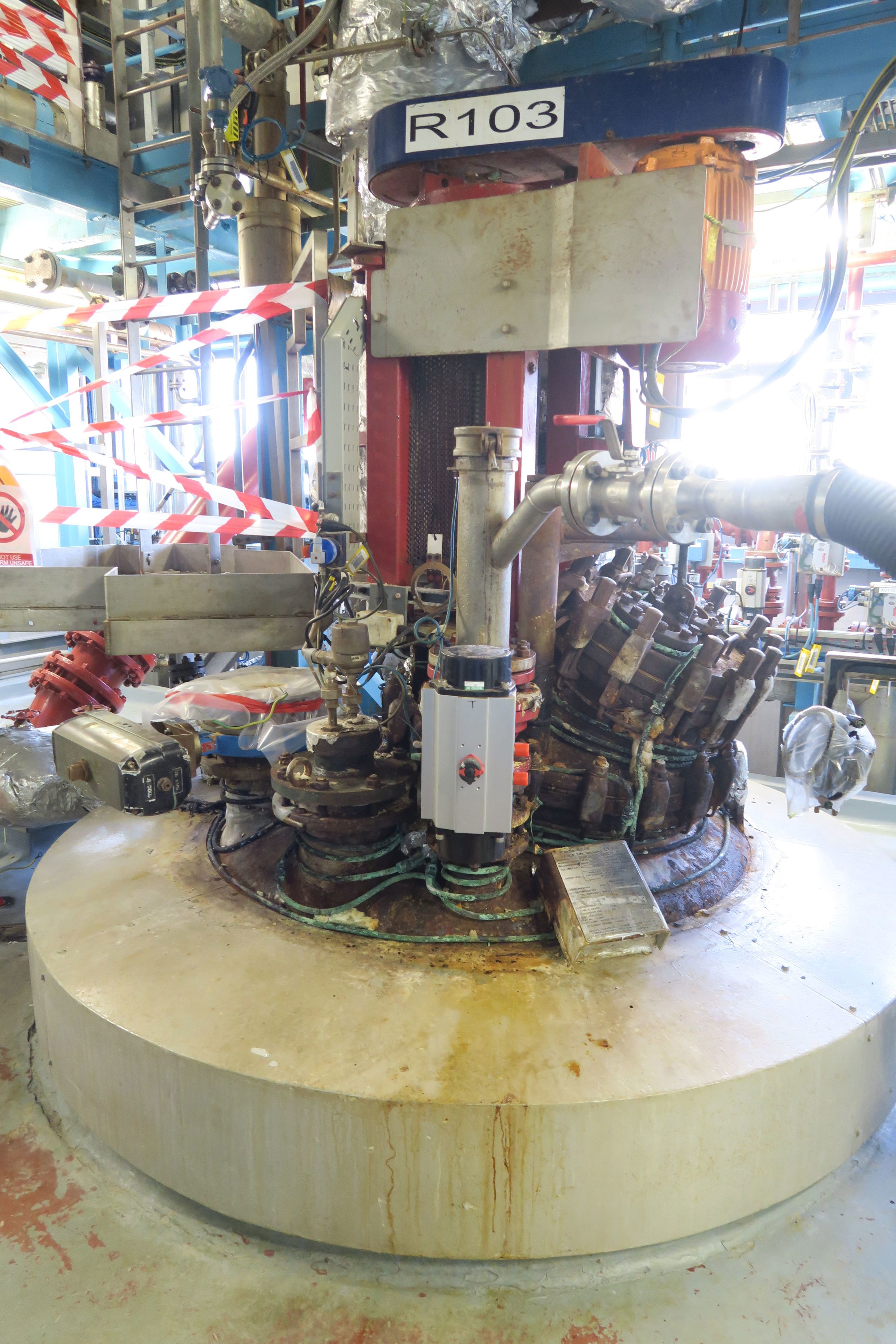

Glasslined Pfaudler CE2500 Batch-Type Agitated Reactor - IPP# 242616

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE2500

Condition: Used

Material: Glasslined

Capacity (Design): 2,500 L (660 gallons)

Internal Pressure: 6 bar (87 psi)

• CE0038
• design pressure internal -1/6 bar @ -29/200 degrees C,
• jacket -1/10 bar @ -29/200 degrees C
• glass type 9129
• design code ASME VIII DIV 1 and essential safety requirements of PED/97/23/EC

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,550 mm (61.6 in). Straight Side Length: 1,200 mm (47.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE2500

Condition: Used

Material: Glasslined

Capacity (Design): 2,500 L (660 gallons)

Internal Pressure: 6 bar (87 psi)

• CE0038
• design pressure internal -1/6 bar @ -29/200 degrees C,
• jacket -1/10 bar @ -29/200 degrees C
• EExd IIA/B T4 IP55, ATEX motor
• 9-90 rpm shaft speed,
• glass type 9129
• design code ASME VIII DIV 1 and essential safety requirements of PED/97/23/EC

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,550 mm (61.6 in). Straight Side Length: 1,200 mm (47.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 37.9 L (10 gallons)

Internal Pressure: 1.72 bar (25 psi)

Reglassed at UGE facility 105 psi w/full vac int. Glass #59.

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 176.7 °C (350 °F). Diameter: 355.6 mm (14 in). Straight Side Length: 457.2 mm (18 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: E

Condition: Used

Material: Glasslined

Capacity (Design): 2,150 L (570 gallons)

Internal Pressure: 6 bar (87 psi)

agitated jacketed reactor, Order number: 50970 Volume of pressure jacket: 331 liter Belt driven by a 5,5kW electrical motor, Motor type 3KT132SA-2, 3~/50Hz/380-660V/2.870rpm, ExdeIIBT4

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Support Type: Lugs.
