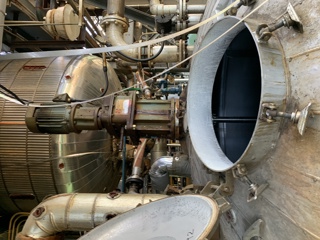

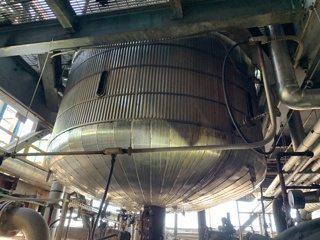

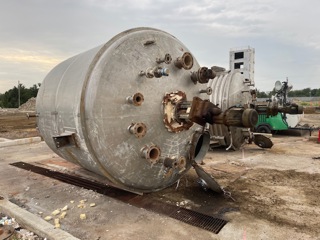

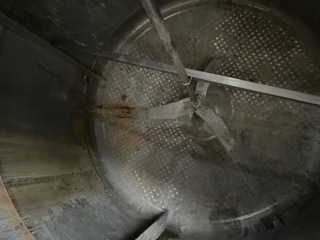

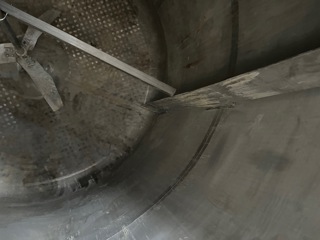

Stainless Steel 304 Batch-Type Agitated Reactor - IPP# 245596

Type: Reactor

Subtype: Batch-Type Agitated

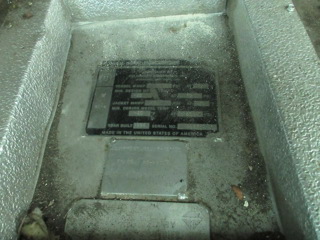

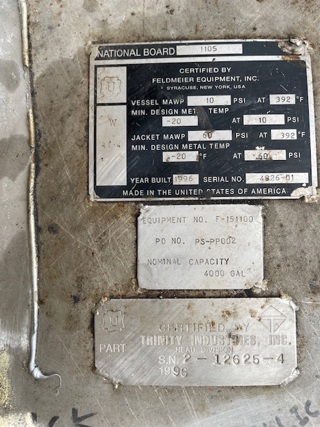

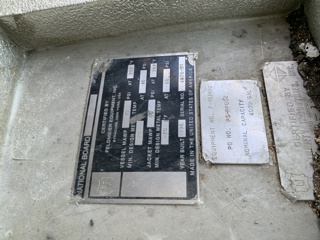

Manufacturer: Feldmeier Equipment

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 15,150 L (4,000 gallons)

Internal Pressure: 0.69 bar (10 psi)

Drive Motor is CE certified

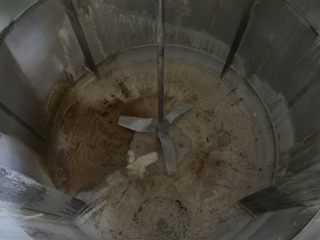

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 4.1 bar (60 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,750 mm (108 in). Straight Side Length: 2,350 mm (93 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Brown Hutchinson, Inc.

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 1,050 L (275 gallons)

Internal Pressure: 3.4 bar (50 psi)

• Bottom outlets, 1.5" center bottom, two 0.5" and one 1"

Internal Full Vacuum: Yes. Jacket Pressure: 3.4 bar (50 psi). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 813 mm (32 in). Straight Side Length: 1,950 mm (76 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gaston County

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 5,700 L (1,500 gallons)

Internal Pressure: 3.4 bar (50 psi)

With Top mounted Philadelphia mixer, model PTE08, 30 to 1 ratio,

Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 1,500 mm (60 in). Straight Side Length: 3,200 mm (126 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Process Systems ltd

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 5,700 L (1,500 gallons)

Jacket Pressure: 6.9 bar (100 psi)

• Jacketed Pressure/Vacuum Reactor with Mixer. Jacket rated MAWP for 100 psi @ 338 degrees F., MDMT for -20 degrees F @ 100 psi.
• Vessel has two zone half pipe coil jacket
• Mixer was a double-motion agitator with scraper blades, but has been converted to a single motion agitator with scrapers

Jacket Temperature: 170 °C (338 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 3,500 mm (138 in). Straight Side Length: 2,350 mm (92 in). Support Type: Legs.
