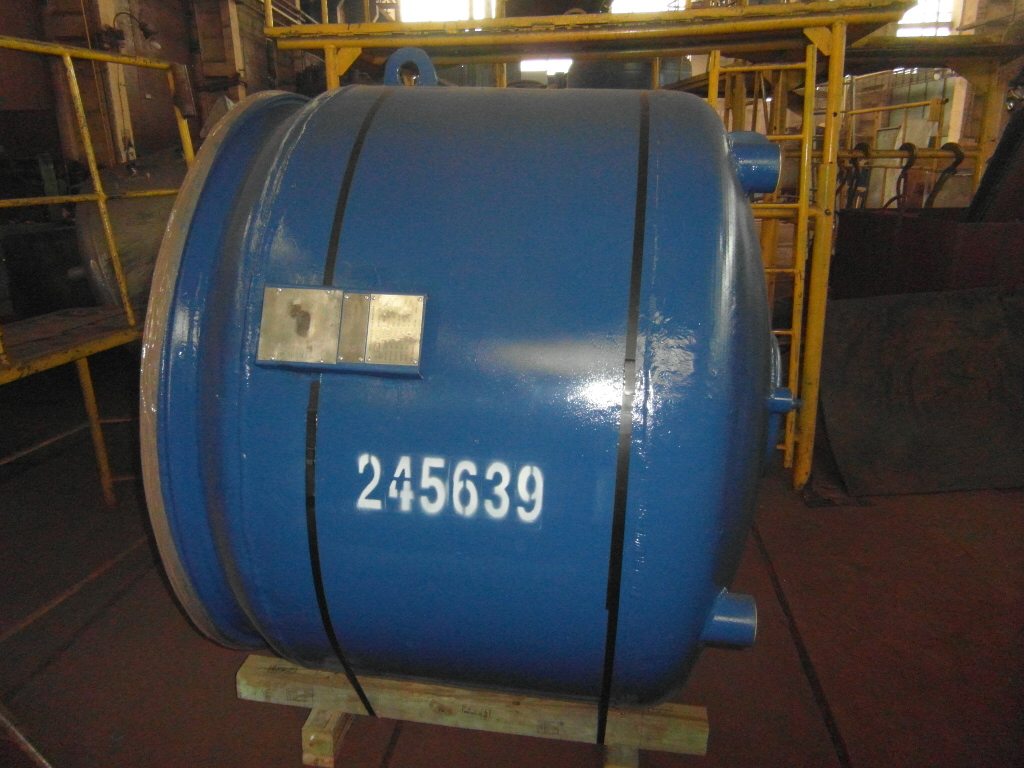

Glasslined Pfaudler E Series Batch Type Body Only Reactor - IPP# 245639

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• It has an mixer inside along with a baffle, but no drive system.

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 343.3 °C (650 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 2,032 mm (80 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: E 12500

Condition: Used

Material: Glasslined

Capacity (Design): 13,332 L (3,522 gallons)

Internal Pressure: 6 bar (87 psi)

• Auftr. number72176, Vessel=(13332 liter) Jacket =(1034liter) Glass 3115, TUV stamped.
• Baffle and Agitator still with vessel.

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.9 bar (100.1 psi). Jacket Temperature: 200 °C (392 °F). Body Only: Yes. Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight Side Length: 3,500 mm (137.8 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: E-2000

Condition: Used

Material: Glasslined

Capacity (Design): 2,167 L (572.5 gallons)

Internal Pressure: 6 bar (87 psi)

• auftr #53250-R91, Glass type: WWGTUV certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Body Only: Yes. Orientation: Vertical. Diameter: 1,400 mm (55.1 in). Straight Side Length: 1,435 mm (56.5 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,893 L (500 gallons)

Internal Pressure: 6.9 bar (100 psi)

• Base reactor

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight Side Length: 1,486 mm (58.5 in). Support Type: Legs.
