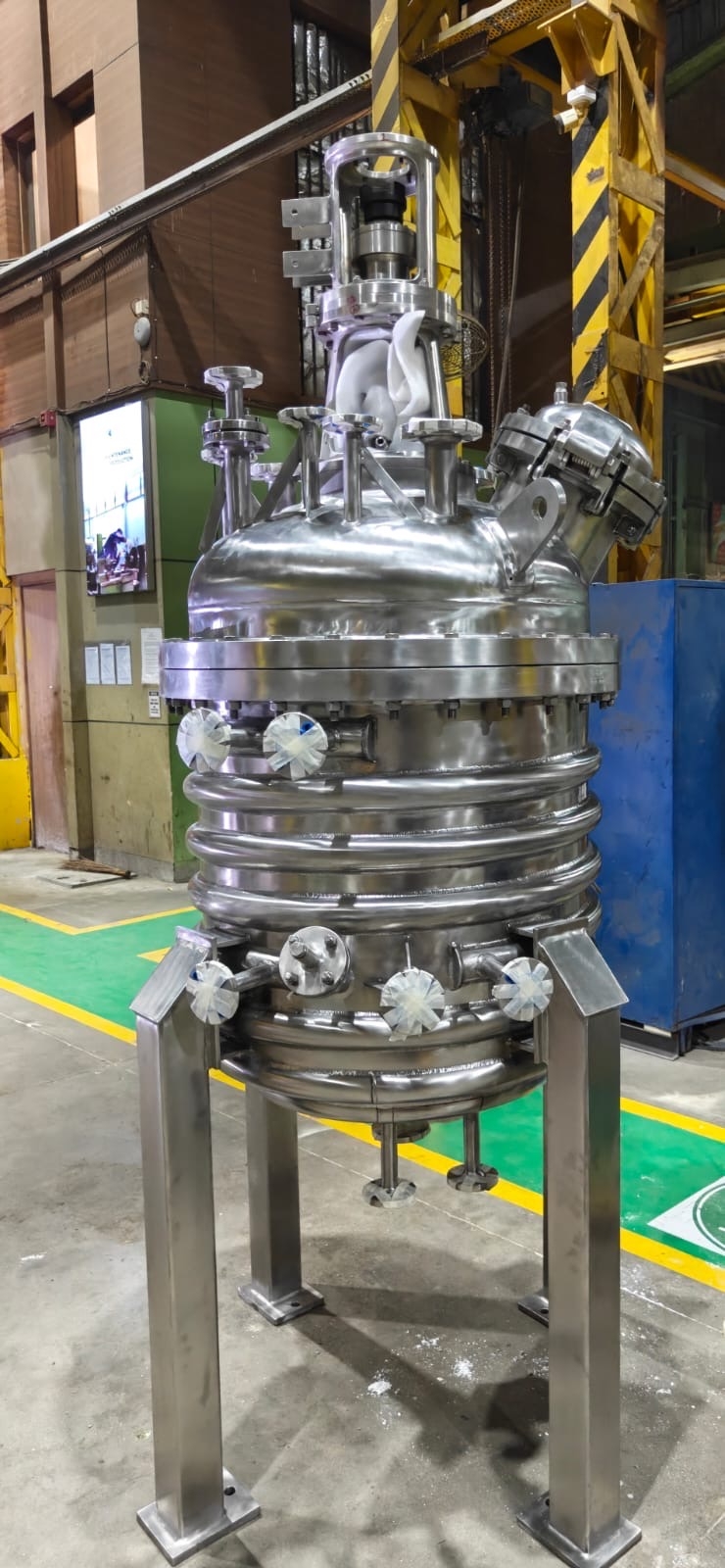

New 100 Gallon Stainless Steel 316L Gale Process Solutions Batch-Type Agitated Reactor - IPP# 248035

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Stainless Steel 316L

Capacity (Design): 15,150 L (4,000 gallons)

Internal Pressure: 10 bar (145 psi)

NEW/UNUSED Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish "U" stamped 10 mm thick welded dish heads (2:1) 12 mm thick Coil: 114 mm OD x 4 mm thick Limpet covers bottom dish and 2615 mm of straight side (pitch 150mm) Coil heating surface area With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug motor UL listed All nozzles have 304 SS flanges

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Stainless Steel 316L

Capacity (Design): 15,150 L (4,000 gallons)

Internal Pressure: 10 bar (145 psi)

UNUSED

Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish. ASME NB rated, and "U" stamped.

welded dish heads (2:1) 12 mm thick

Coil: 114 mm OD x 4 mm thick,

Limpet covers bottom dish and 2615 mm of straight side (pitch 150mm). Coil heating surface area.

With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug.

20" Manhole with Cover and davit arm assist, one 6" sight glass,

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Stainless Steel 316L

Capacity (Design): 378.5 L (100 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With dip tube with thermowell
• Internal Finish: Buff Polish to 240 grit
• External finish: Buff polish to 180 Grit

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304L. Orientation: Vertical. Agitation: Yes. Diameter: 700 mm (27.6 in). Straight Side Length: 1,200 mm (47.4 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Stainless Steel 316L

Capacity (Design): 378.5 L (100 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With dip tube with thermowell
• Internal Finish: Buff Polish to 240 grit
• External finish: Buff polish to 180 Grit

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304L. Orientation: Vertical. Agitation: Yes. Diameter: 700 mm (27.6 in). Straight Side Length: 1,200 mm (47.4 in). Support Type: Lugs.
