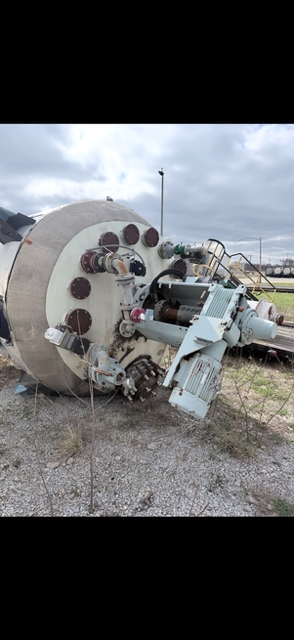

Batch-Type Agitated Reactor - IPP# 248458

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 37.9 L (10 gallons)

Internal Pressure: 1.72 bar (25 psi)

Reglassed at UGE facility 105 psi w/full vac int. Glass #59.

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 176.7 °C (350 °F). Diameter: 355.6 mm (14 in). Straight Side Length: 457.2 mm (18 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: E

Condition: Used

Material: Glasslined

Capacity (Design): 2,150 L (570 gallons)

Internal Pressure: 6 bar (87 psi)

agitated jacketed reactor, Order number: 50970 Volume of pressure jacket: 331 liter Belt driven by a 5,5kW electrical motor, Motor type 3KT132SA-2, 3~/50Hz/380-660V/2.870rpm, ExdeIIBT4

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• 5TW drive belt driven

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• 5 TW drive, 15 to 1 ratio, belt driven by 10 HP 3/60/230/460V motor,

Internal Full Vacuum: Yes. Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Support Type: Legs.
