Glasslined Schwelmer Batch-Type Agitated Reactor - IPP# 85065

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 37.9 L (10 gallons)

Internal Pressure: 1.72 bar (25 psi)

Reglassed at UGE facility 105 psi w/full vac int. Glass #59.

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 176.7 °C (350 °F). Diameter: 355.6 mm (14 in). Straight Side Length: 457.2 mm (18 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CSA

Condition: New

Material: Glasslined

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

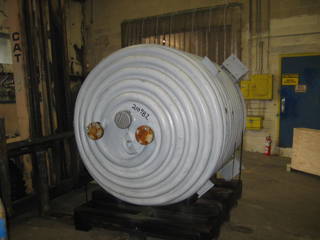

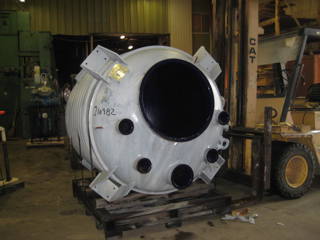

Hemi-coil two circuit, two zone split pipe coil jacket rated 450 psig @ 500 degress F, -20 deg F @ 450 psig.

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 31 bar (450 psi). Jacket Temperature: 260 °C (500 °F). Body Only: Yes. Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight Side Length: 1,219 mm (48 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: E

Condition: Used

Material: Glasslined

Capacity (Design): 2,157 L (569.8 gallons)

Internal Pressure: 6 bar (87 psi)

agitated jacketed reactor, Order number: 50970 Volume of pressure jacket: 331 liter Belt driven by a 5,5kW electrical motor, Motor type 3KT132SA-2, 3~/50Hz/380-660V/2.870rpm, ExdeIIBT4

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

5 TW drive, 40 to 60 rpm output, belt driven motor, 2 finger up baffle.

Internal Full Vacuum: Yes. Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,676 mm (66 in). Straight Side Length: 1,981 mm (78 in). Support Type: Lugs.
