39,747 L (10,500 gallons) Stainless Steel 316 Batch-Type Agitated Reactor For Sale IPP# 90200

IPP# 90200, 39,747 L (10,500 gallons) Stainless Steel 316 Batch-Type Agitated Reactor For Sale

Condition:

Used

Material:

Stainless Steel 316

Clad:

Yes

Manufacturer:

Robert Jenkins

Capacity Design:

39,747 L (10,500 gallons)

Internal Pressure:

22.8 bar (330 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

85 °C (185 °F)

Jacket Pressure:

4.1 bar (60 psi)

Jacket Material of Construction:

Carbon Steel

Orientation:

Vertical

Agitation:

Yes

Top Head Type:

Dish

Bottom Head Type:

Dish

Manway:

Yes

Nozzle Schedule:

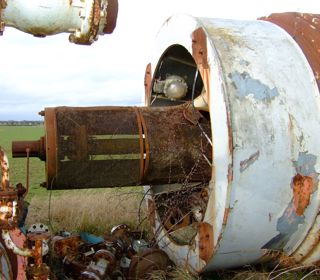

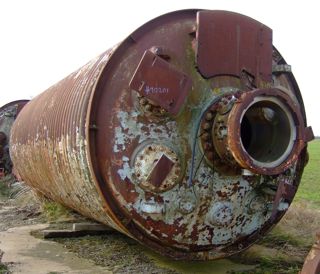

Openings: top 1-22" hydraulic closed manway, 2-10", 1-9", 3-4", 1-3"; side 14-6"; btm 1-10", 1-6", 1-2".

Additional Info:

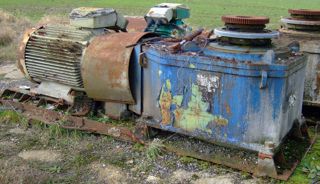

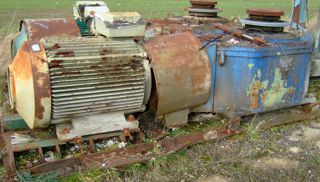

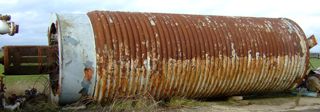

jkt agit reactor/autoclave. (42) turns on str side. Wall thickness is 15/16" with 10% cladding; Heads are 1 1/8" thick with 15% cladding. bottom driven by Lightnin mixer, 14:1 ratio, direct coupled to 200 KW, 3/50/415 volt, 991 rpm non-flameproof motor.
