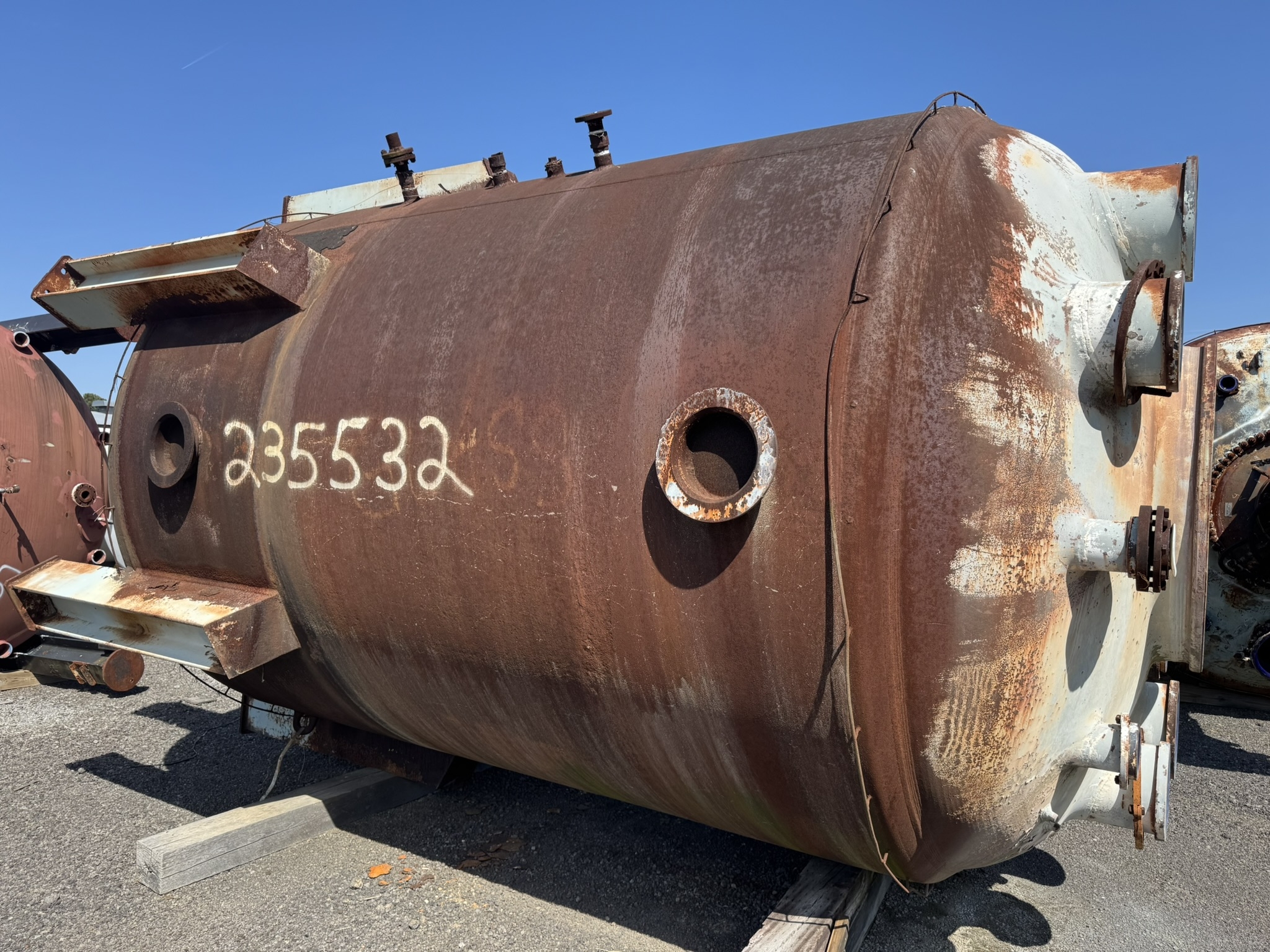

Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 235532

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 6.89 bar (100 psi)

• It has an mixer inside along with a baffle, but no drive system.

Internal Full Vacuum: Yes. Internal Temperature: 177 °C (350 °F). Jacket Pressure: 6.89 bar (100 psi). Jacket Temperature: 343 °C (650 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 2,032 mm (80 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 6.89 bar (100 psi)

Internal Full Vacuum: Yes. Internal Temperature: 343 °C (650 °F). Jacket Pressure: 6.21 bar (90 psi). Jacket Temperature: 177 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 6.89 bar (100 psi)

Reactor Base Body,

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Jacket Pressure: 6.21 bar (90 psi). Jacket Temperature: 177 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight Side Length: 1,727 mm (68 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 6.89 bar (100 psi)

RA series glass lined reactor body

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Jacket Pressure: 6.21 bar (90 psi). Jacket Temperature: 232 °C (450 °F). Body Only: Yes. Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight Side Length: 1,321 mm (52 in). Support Type: Legs.
