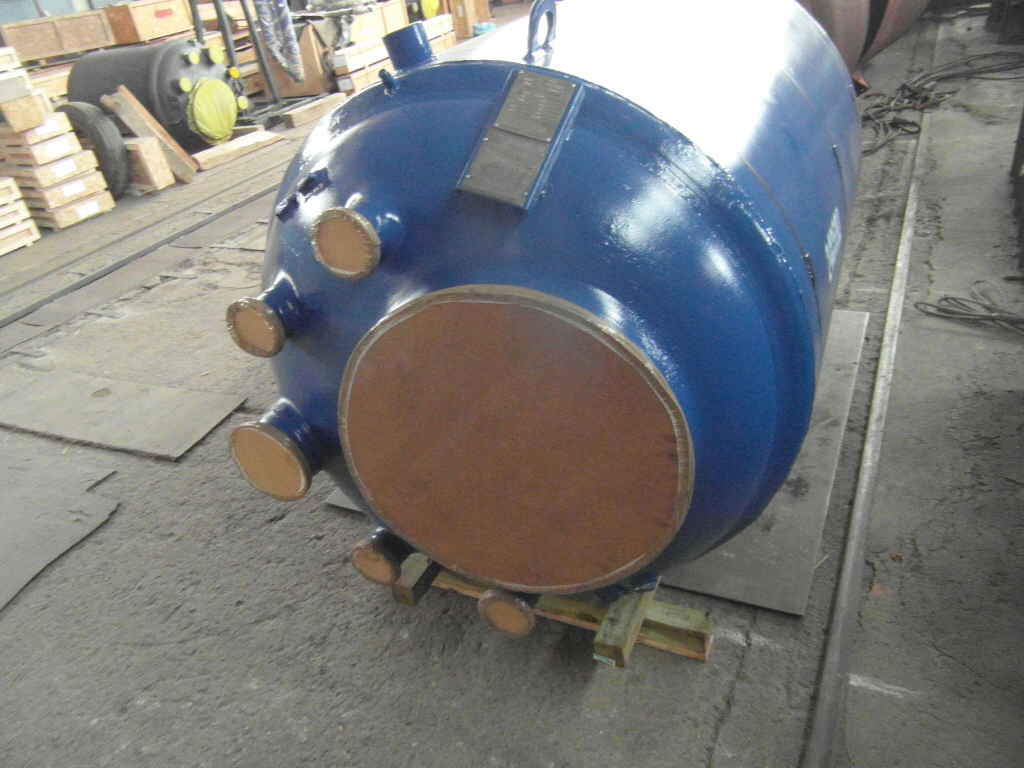

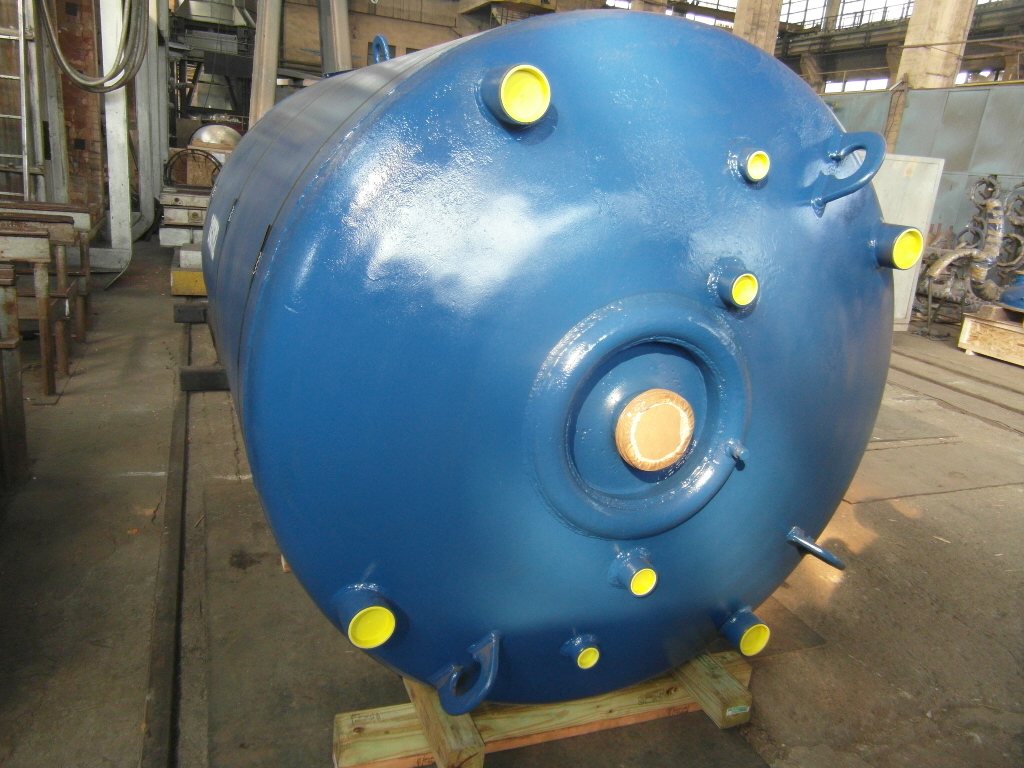

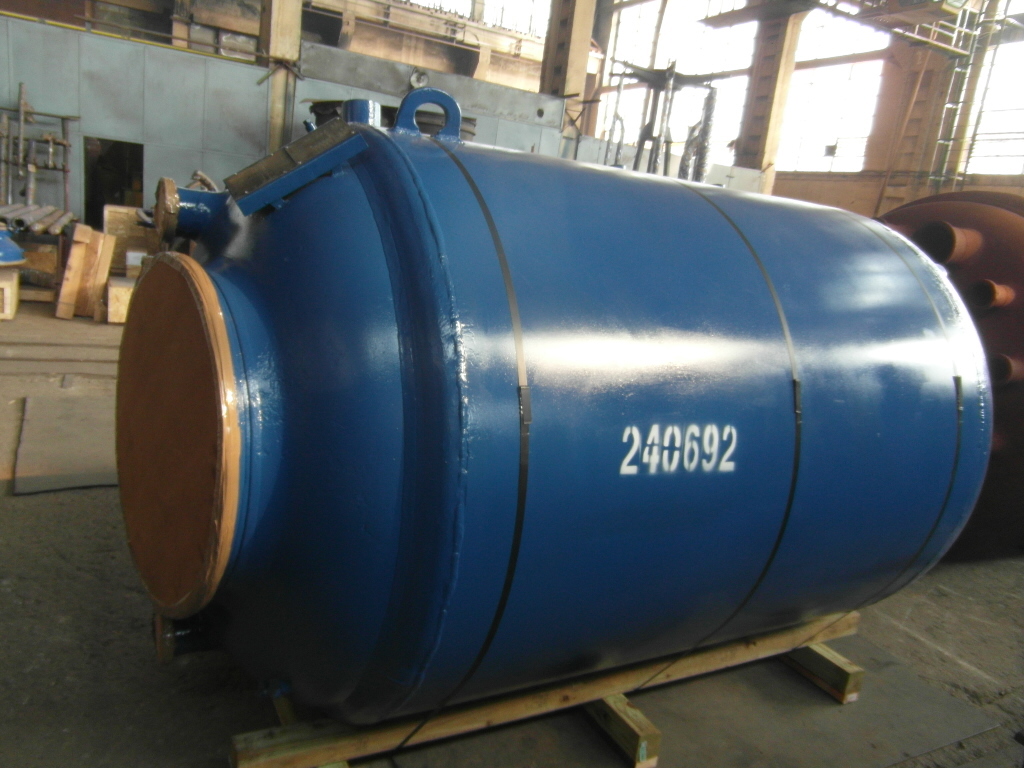

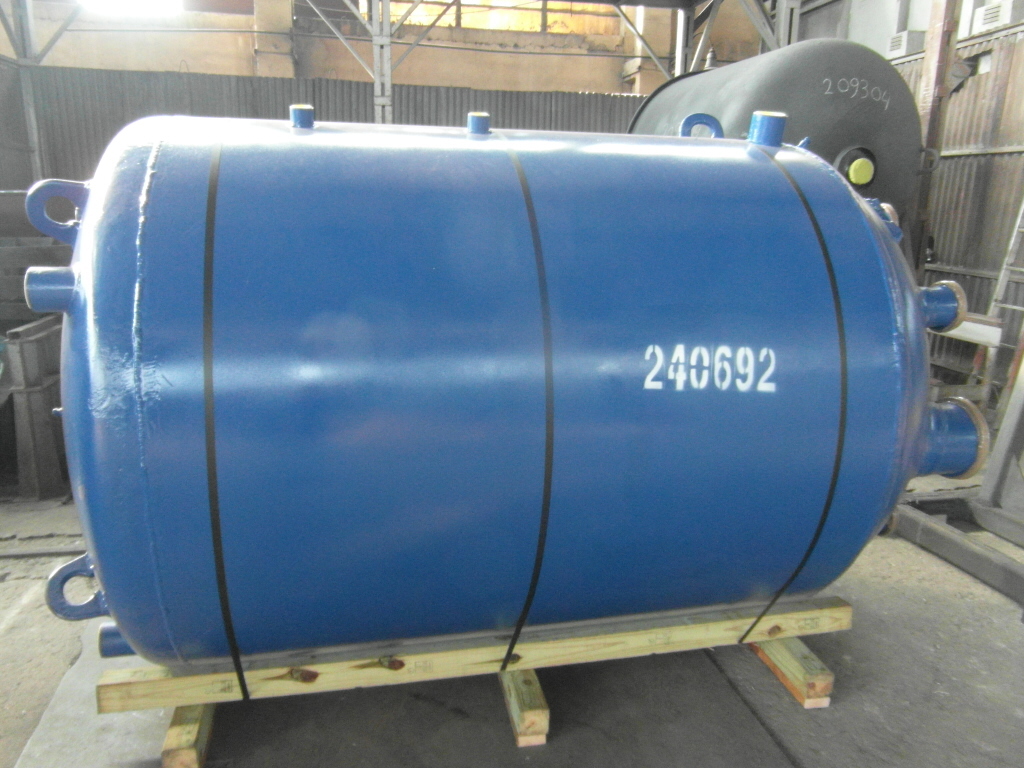

Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 240692

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• It has an mixer inside along with a baffle, but no drive system.

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 343.3 °C (650 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,000 mm (78 in). Straight Side Length: 2,050 mm (80 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Internal Full Vacuum: Yes. Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Reactor Base Body,

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,500 mm (60 in). Straight Side Length: 1,750 mm (68 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

RA series glass lined reactor body

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 232.2 °C (450 °F). Body Only: Yes. Orientation: Vertical. Diameter: 1,500 mm (60 in). Straight Side Length: 1,300 mm (52 in). Support Type: Legs.
