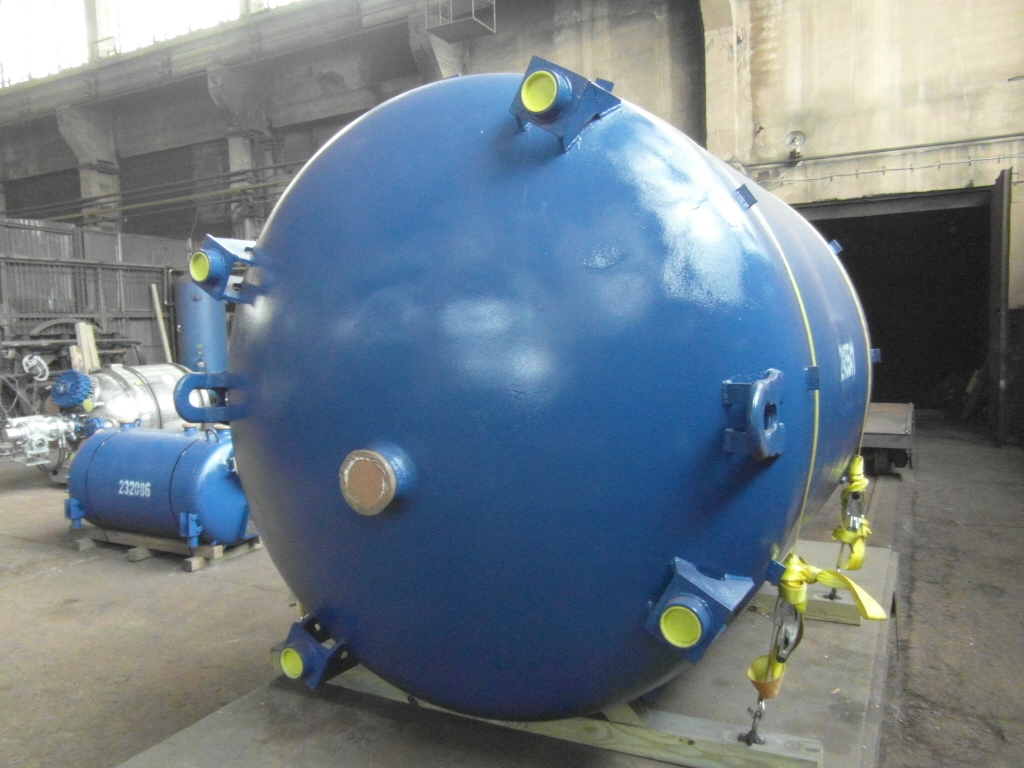

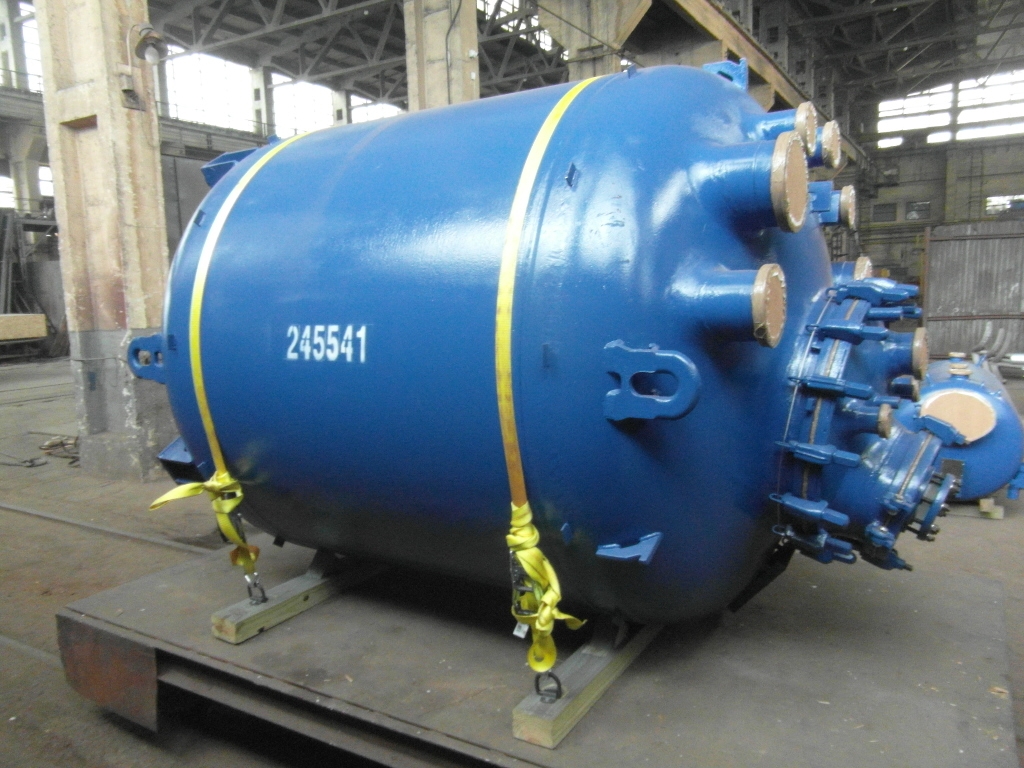

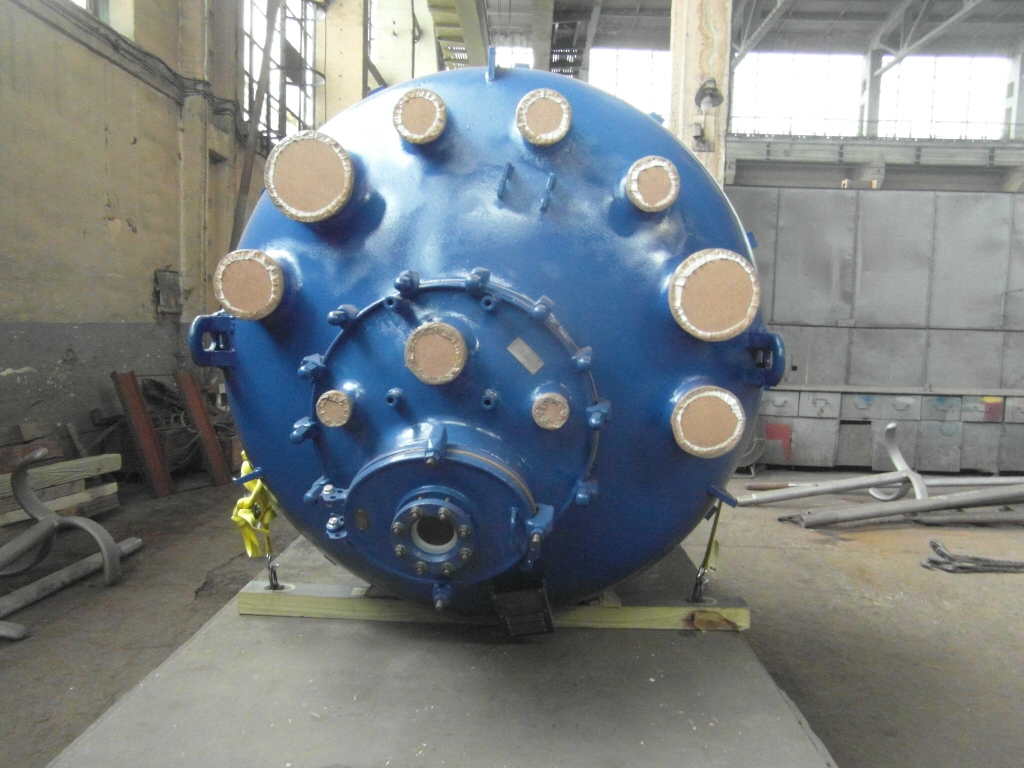

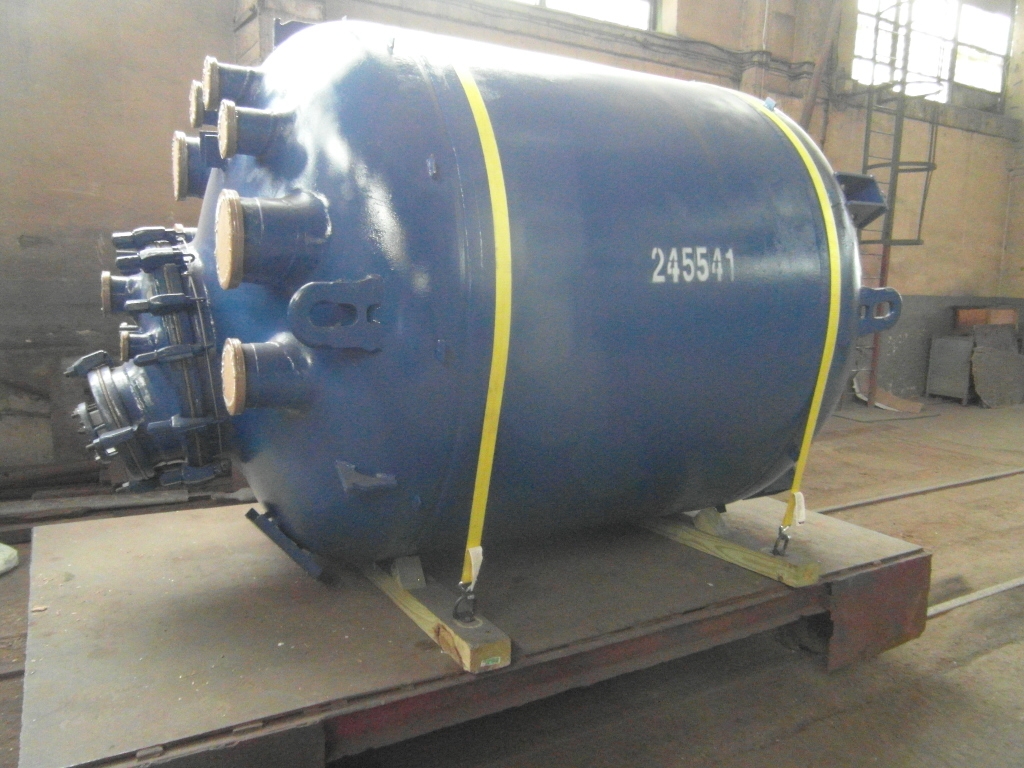

Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541

  • Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541 Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541
  • Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541 Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541
  • Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541 Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541
  • Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541 Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541
  • Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541
  • Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541
  • Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541
  • Glasslined DeDietrich SA 1500 Batch-Type Agitated Reactor - IPP# 245541
Overview
Reactor
Batch Type Body Only
DeDietrich
SA 1500
Re-glassed
Glasslined
5,678 L (1,500 gallons)
Glass Lined
Pressure Vessel
6.89 bar (100 psi)
Yes
260 °C (500 °F)
Jacket/Internal Coil
Carbon Steel
Dimensions
Vertical
1,981 mm (78 in)
1,448 mm (57 in)
Heads
Dish
Glasslined
Dish
Glasslined
Other Specifications
Yes
Legs
Glass Details
Full Fire Polish (FF)
Very Clean (VC)
Additional Information
  • This is a base vessel-No Jacket.
