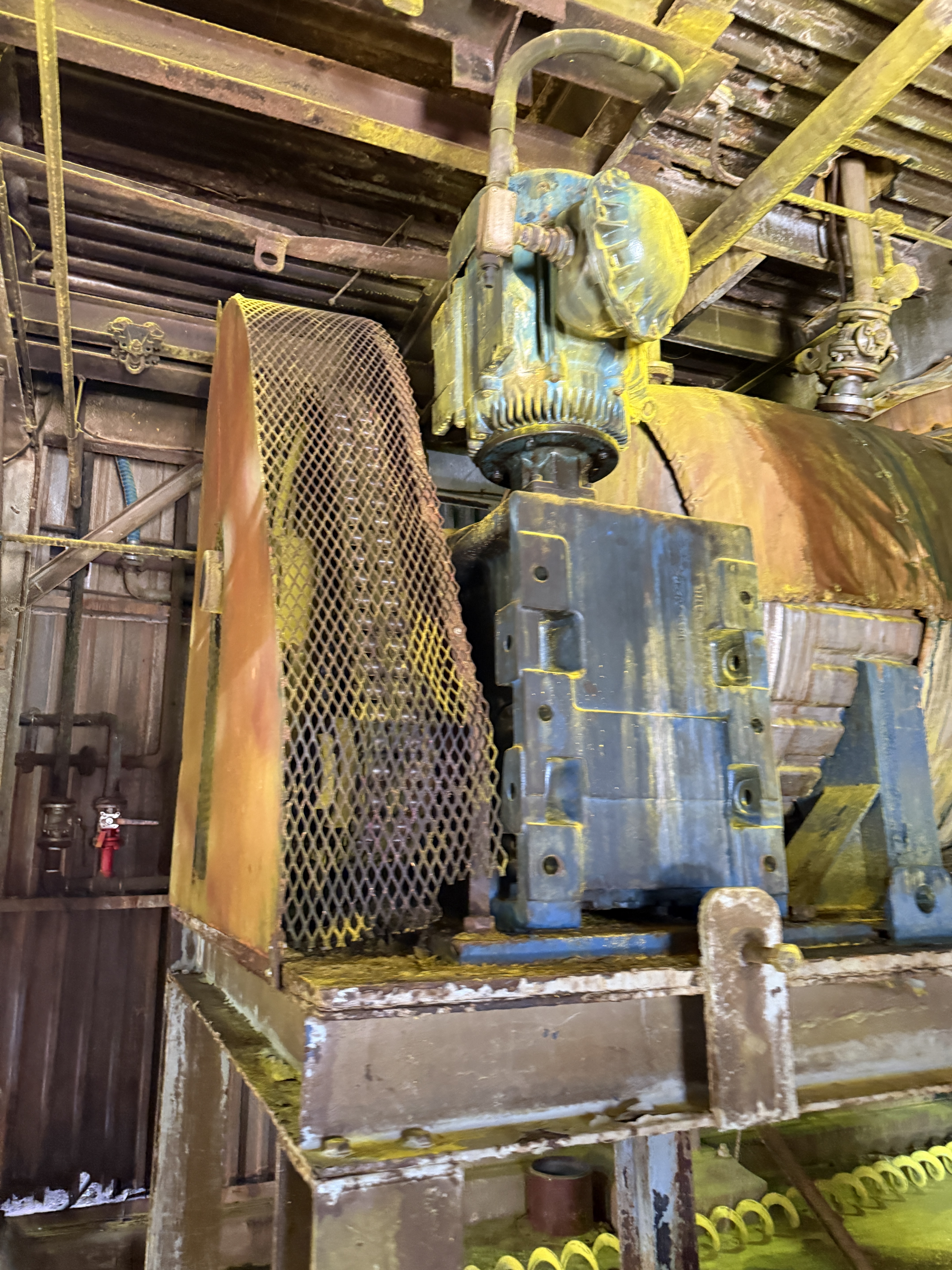

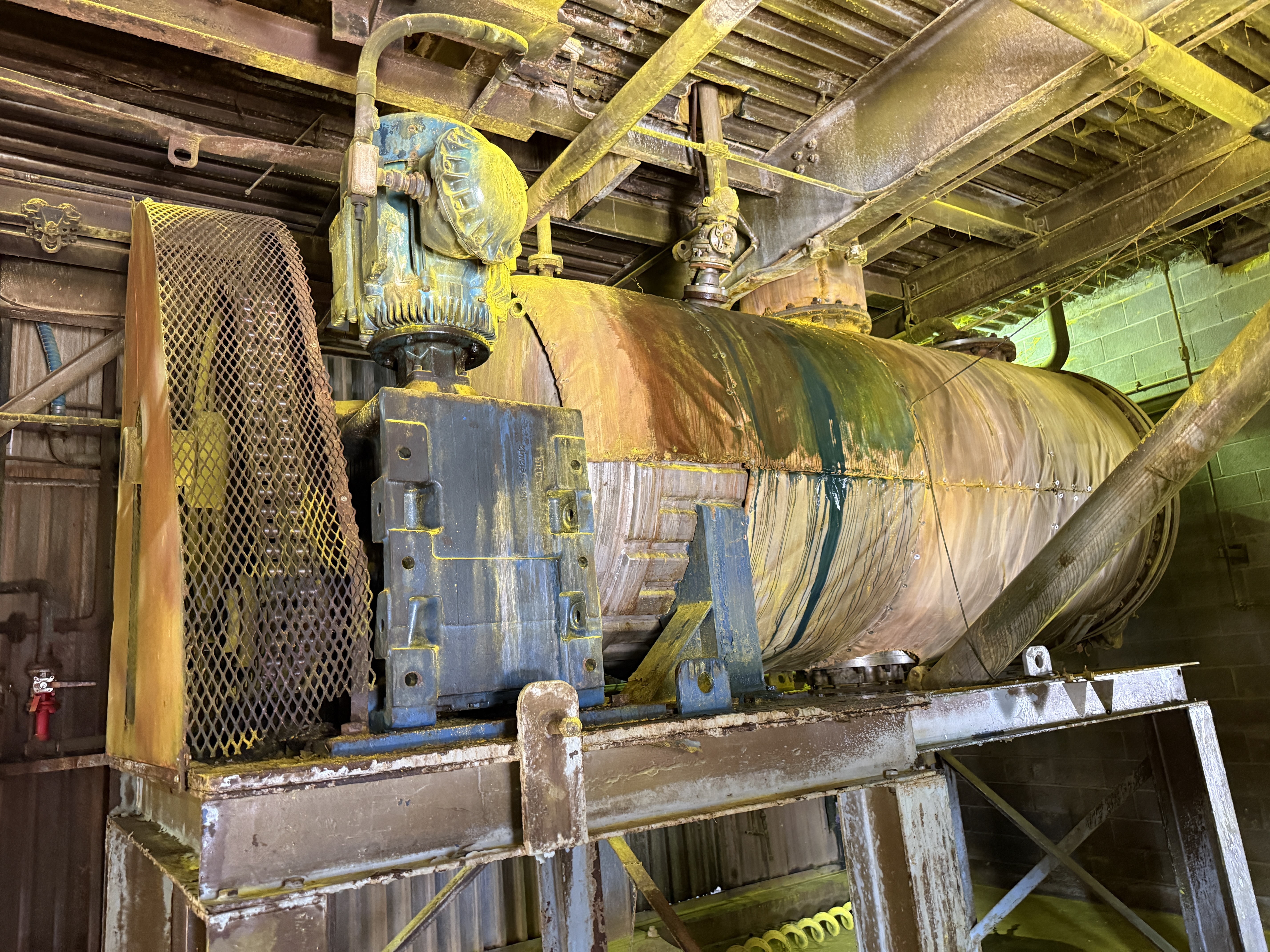

Dryer-Rotary Vacuum - IPP# 248856

Type: Dryer-Rotary Vacuum

Manufacturer: Buss AG Basel Schwein

Condition: Used

Material: Stainless Steel 316

Capacity Design: 2.55 m3 (90 ft3)

Capacity Working: 1.7 m3 (60 ft3)

• Rotary Vacuum Paddle Dryer with heated shaft.
• Vessel rated for Full vacuum internally.
• With 316 stainless steel internals & stainless steel half-pipe coil jacket.
• One head bolted dished, one head welded dished.
• Unit has approx.12" diameter heated shaft with paddle agitator blades.
• Shaft is direct coupled to a gear reducer
• Openings include: (1) 18" Top, (1) 12" x 16" end port with hinged cover, Bottom center discharge.

Diameter: 1,219 mm (48 in). Length: 3,658 mm (144 in). Height: 1,422 mm (56 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 15.1 m² (163 ft²). Orientation: Horizontal. Agitation Seal Type: Packing. Jacket Material: Stainless Steel Other. Jacket Pressure: 4.14 bar (60 psi). Jacket Type: Half Pipe/Limpet.

Type: Dryer-Rotary Vacuum

Manufacturer: Buss AG Basel Schwein

Model: DR-62

Condition: Used

Material: Stainless Steel 316

Capacity Design: 2.83 m3 (100 ft3)

Capacity Working: 2.55 m3 (90 ft3)

Rotary Vacuum Paddle Dryer with heated shaft.
Vessel rated for Full vacuum internal
316SS internals,
SS 1/2 pipe coil jacket.
one head bolted dished, one head welded dished.
Unit has approx. 12" diameter heated shaft with paddle agitator blades.
Shaft is direct coupled to a gear reducer
motor3/60/230/460 volt
Openings inlcude: (1) 18" Top, (1) 12" x 16" end port with hinged cover,
Bottom center discharge.

Diameter: 1,219 mm (48 in). Length: 3,658 mm (144 in). Height: 1,422 mm (56 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 14 m² (151 ft²). Orientation: Horizontal. Jacket Material: Stainless Steel Other. Jacket Pressure: 4.14 bar (60 psi). Jacket Type: Half Pipe/Limpet.

Type: Dryer-Rotary Vacuum

Manufacturer: Berthier

Model: S 542

Condition: Used

Material: Stainless Steel 316

Capacity Design: 8.3 m3 (293 ft3)

Capacity Working: 7.5 m3 (265 ft3)

jacketed vacuum Paddle Dryer with carbon steel jacket
internal pressure -1/0.5bar @ 130 degrees C (8.300liter)
jacket pressure 6 bar @ 200 degree C (280 liter)
shaft cored for steam
18.5kW/3~/50Hz/230-400V/465rpm Motor

Diameter: 1,895 mm (74.6 in). Length: 3,500 mm (138 in). Height: 2,530 mm (99.6 in). Temperature: 130 °C (266 °F). Pressure: 0.5 bar (7.25 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 20.9 m² (225 ft²). Shaft Cored and National Board Stamped: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Stokes

Model: 900-59-125

Condition: Used

Material: Stainless Steel 316

Capacity Design: 7 m3 (247 ft3)

Diameter: 1,219 mm (48 in)

jacketed rotary vacuum dryer
3/50/380 volt
Cleveland 63-55:1 ratio
3.8 HP, 1750 rpm gearbox
shaft cored for steam heating, no national board, rated 50 psi @ 300 degrees F
(1-straight side and 1-each end)
Rotary union joint, outboard bearings. Unit with dust collector. Openings: top (2) 3' x 18 1/2" hinged access covers with counter balanced mechanism, 2-12"; end 1-8"; bottom 1-10" with manual open/close mechanism; jacket 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2".

Length: 6,096 mm (240 in). Temperature: 149 °C (300 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 23.3 m² (251 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.45 bar (50 psi). Jacket Temperature: 149 °C (300 °F).
