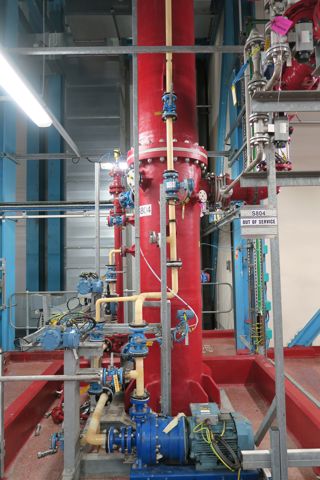

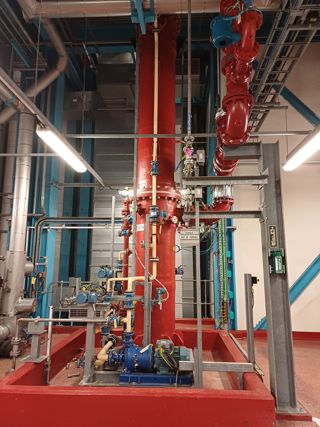

Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731

  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
Overview
Scrubber
Plasticon
Used
Polypropylene
Capacity
138.1 m3/h (81.3 CFM)
Other Specifications
0.1 bar (1.45 psi)
50 °C (122 °F)
Yes
Lanpack
1,650 L (58.3 ft3)
Yes

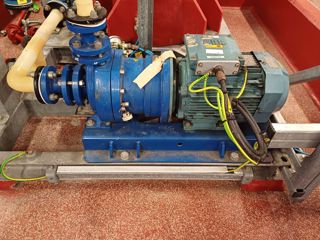

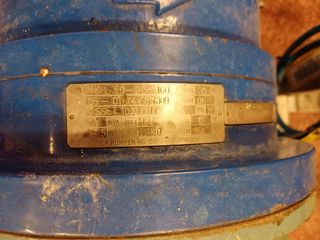

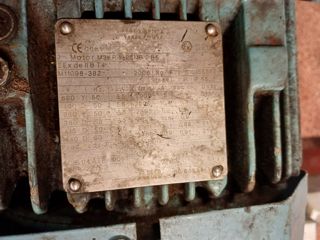

2 x 20m3/hr @ 30m head PFA lined centrifugal pump, manufactured by CP Pumpen Ag, type MKPL 50-32-160, serial #06-01729/55296 & 06-01729/55297, 161mm diameter impellor, 2930 rpm, 10/50 degrees C, driven by 7.5kW, 3/50/415 volt 2919 rpm EEx de IIB T4 ATEX motor, mounted on a baseplate,
Additional Information
  • built to reduce the total NOX to 200mg/m3 of total gas flow as NO2 at fan discharge
  • inlet gas flow 138.1 m3/hr
  • inlet temperature (10 - 25 degrees C) say design normal = 20 degrees C
  • liquor acidification composition 36% CO2 64% N2
  • Azide destruction composition 18% NO2 and 82% N2
  • Nitrate destruction composition 36% NO2 and 64% N2
  • an additional 180m3/hr gas flow into stage 2 tower during purging
  • an additional 66m3/hr minimum of oxidation air is added at stage 1 tower inlet

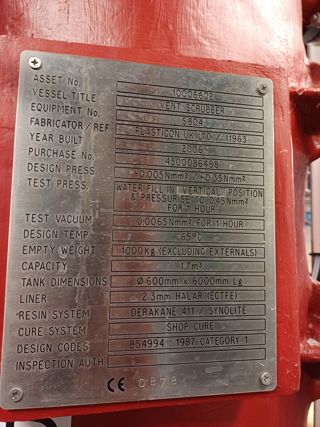

  • design code BS4994: 1987 CAT 1
  • 10780 liter capacity,

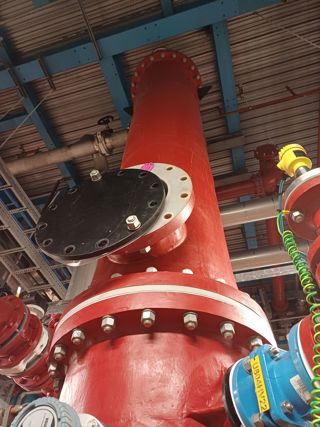

  • (2) 1m diameter x 3477m total height Polypropylene lined packed columns, manufactured by Hat International Ltd, design pressure -0.1 barg @ 50 degrees C, bolt flat top, internal spray nozzles, packing is 2 x 1.65m3 of Lanpac 3.5", 2.1m packing height
  • (1) Polypropylene lined rectangular holding tank, approx 3.8m long x 1.2m wide x 1.2m high, flat top and bottom,
  • (1) 1000 liter Epoxy vinyl Ester resin vertical caustic dosing tank, bolt dished top, weld flat bottom,
  • (1) 220/264liter capacity stainless steel dosing pump, manufactured by ProMinent Fluid Control UK Ltd, serial #2007007687, 7 bar pressure, Ex II 2GD IIC T4 x, driven by approx 0.75kW motor,
