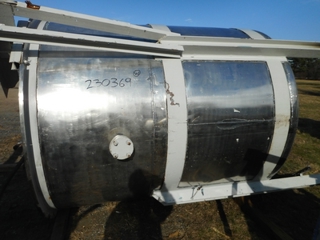

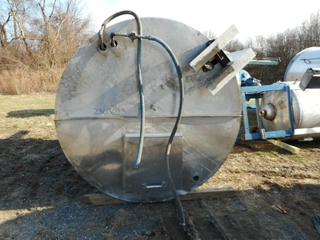

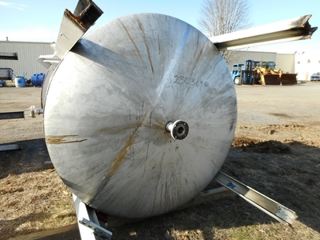

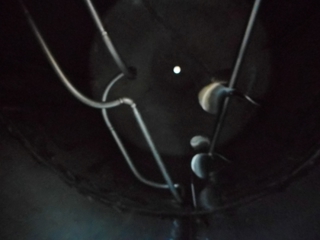

Stainless Steel 316L Tolan Machinery Co, Inc. Tank - IPP# 241136

Type: Tank

Manufacturer: Tolan Machinery Co, Inc.

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 5,700 L (1,500 gallons)

Orientation: Vertical

With 3HP top angle entering clamp mounted Lightning Agitator. (1) 2' center bottom discharge.

Diameter: 1,850 mm (72 in). Straight-side Length: 2,100 mm (82 in). Internal Pressure: 1.01 bar (14.7 psi). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Legs.

Type: Tank

Manufacturer: Tolan Machinery Co, Inc.

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 946 L (250 gallons)

Orientation: Vertical

Diameter: 1,050 mm (42 in). Straight-side Length: 1,050 mm (42 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: -34.4 °C (-30 °F). Does it have Agitation ?: Yes. Support: Sockets for pipe legs.

Type: Tank

Manufacturer: Industrial Process Equipment Corp.

Model: Knock Out

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 283.9 L (75 gallons)

Orientation: Vertical

• Type: knock out pot
• Customer: Nash Kinema Vessel designed for non-lethal and non-corrosive service.

Diameter: 482.6 mm (19 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 204.4 °C (400 °F). Support: Base Mounted.

Type: Tank

Manufacturer: WAFAG

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 160 L (42.3 gallons)

Orientation: Horizontal

• Jacketed receiver 1/2 pipe coil jacket on bottom 1/2 of tank.

Diameter: 450 mm (17.7 in). Straight-side Length: 1,000 mm (39.6 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Other. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes.
