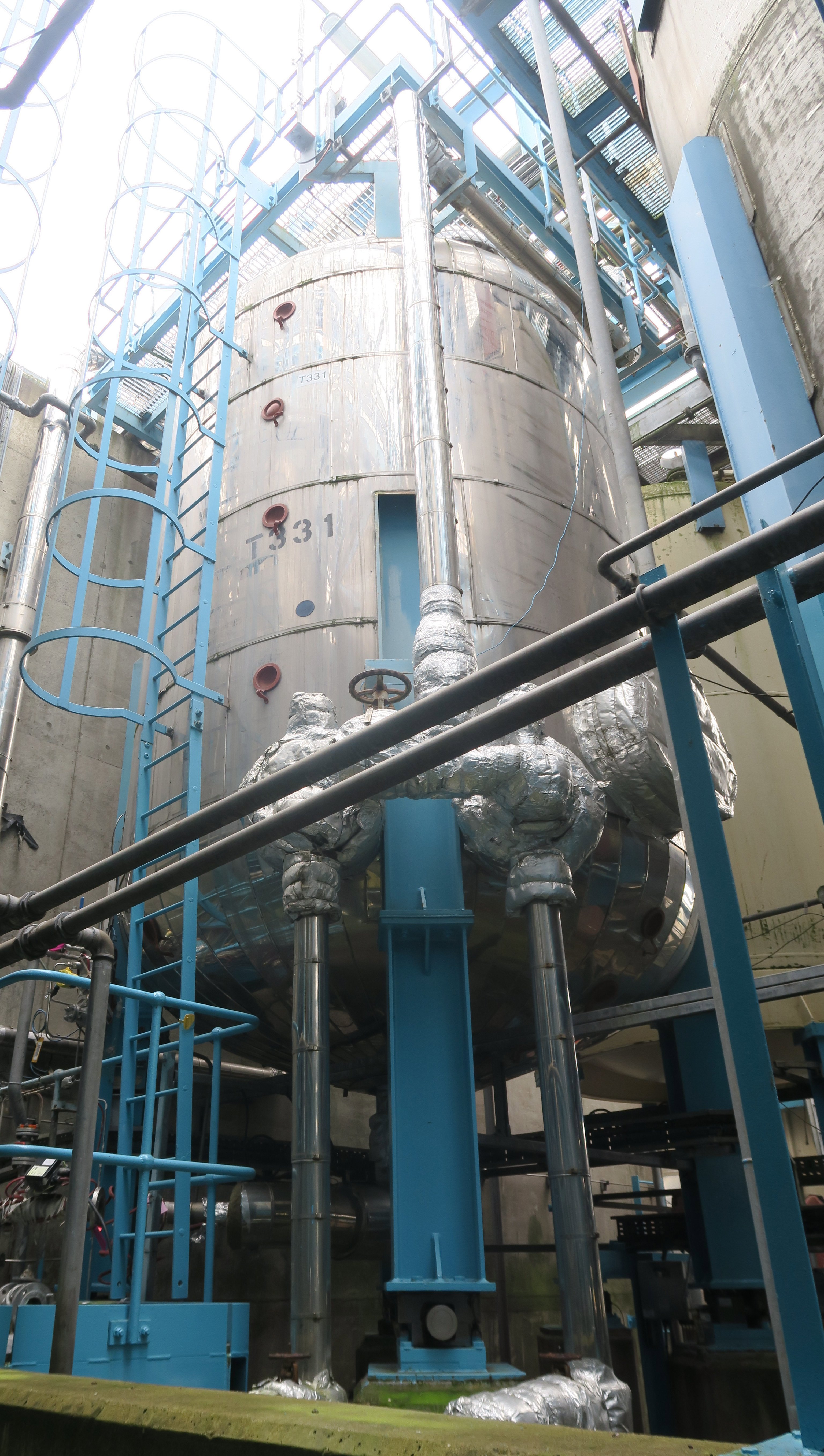

Stainless Steel 316L Robert Sanderson Tank - IPP# 242882

Type: Tank

Manufacturer: Robert Sanderson

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 12,750 L (3,350 gallons)

Orientation: Vertical

• 10000 liter working capacity,
• design pressure 3.5 bar + full vacuum @ -25/170 degrees C (12750 liter),
• EEx de IIB T4 ATEX motor,
• design code: BS5500 CAT 2 1997,

(1) 316 stainless steel centrifugal pump, manufactured by Girdlestone, type 10AS3G, serial #53535, size 50-40-175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, mounted on a baseplate,

Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Industrial Process Equipment Corp.

Model: Knock Out

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 283.9 L (75 gallons)

Orientation: Vertical

• Type: knock out pot
• Customer: Nash Kinema Vessel designed for non-lethal and non-corrosive service.

Diameter: 482.6 mm (19 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 204.4 °C (400 °F). Support: Base Mounted.

Type: Tank

Manufacturer: WAFAG

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 160 L (42.3 gallons)

Orientation: Horizontal

• Jacketed receiver 1/2 pipe coil jacket on bottom 1/2 of tank.

Diameter: 450 mm (17.7 in). Straight-side Length: 1,000 mm (39.6 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Other. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes.

Type: Tank

Manufacturer: Fr. Maurer Ag

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 630 L (166.4 gallons)

Orientation: Horizontal

• Jacketed receiver

Diameter: 700 mm (27.6 in). Straight-side Length: 1,600 mm (62.4 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316L. Jacket Pressure: 4.8 bar (69.6 psi). Jacket Temperature: 200 °C (392 °F).
