Plant Types: Chemical and Specialty Chemical, Oil and Gas, Petrochemical

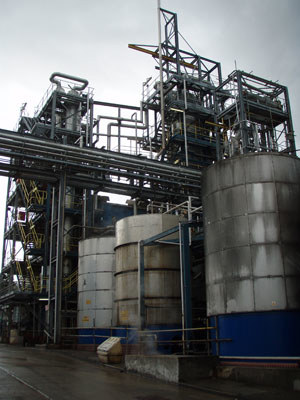

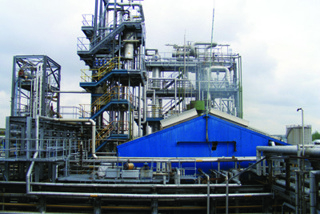

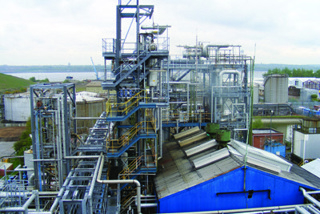

DISTILLATION PLANT

AVAILABLE FOR SALE OR LEASE

Well-maintained distillation and distribution facility with robust process equipment capabilities, utilities, and infrastructure strategically located between the Houston and Beaumont-Port Arthur-Orange, Texas Petrochemical Corridors.

SITE OVERVIEW

FACILITY HIGHLIGHTS

FLEXIBLE DISTILLATION CAPABILITIES

Robust distillation assets to cover a variety of dedicated or toll process requirements.

WELL MAINTAINED

Owned and operated by a major multinational chemical manufacturer until 2026. Formerly used to manufacture specialty phenolics (meta- and para-cresol).

EXTENSIVE EQUIPMENT

Columns, heat exchangers, boilers, fired heaters, tanks, and supporting utilities.

STRATEGIC LOCATION

Situated in the Gulf Coast chemical corridor with excellent logistics and access to markets.

PROPERTY MAP LABELS

• Tract I — 1.805 Acres
• Tract II — .483 Acre
• Tract III — 1.805 Acres
• Tract IV — 0.56 Acre

MAJOR EQUIPMENT INVENTORY

The following is a complete inventory of the major process equipment included in this Winnie, Texas facility.

DISTILLATION & PROCESS COLUMNS

HEAT EXCHANGERS & COOLERS

FIRED HEATERS

BOILERS

MAJOR EQUIPMENT INVENTORY

The following is a complete inventory of the major process equipment included in this Winnie, Texas facility.

HEAT EXCHANGERS & COOLERS (CONTINUED)

COMPRESSORS

FILTERS

AIR RECEIVER

STORAGE TANKS

Plant Types: Chemical and Specialty Chemical, Petrochemical

Subtypes: Formaldehyde Plant

Capacity: 105mm lbs/yr at 40%-45% (capable of 37-51%)

Raw Materials: Methanol, Oxygen

Formaldehyde Plant (Reichhold Design using metal oxide catalyst).

Available for operation in-place (Allentown, PA USA) or relocation globally.

Process Description:

The Formaldehyde plant (P501) is designed to produce formaldehyde by the catalytic conversion of methanol and oxygen controlled recycle gas. Formaldehyde is produced by the direct oxidation of methanol from the Methanol Storage Tank and Piping (P502). Emissions from the methanol storage tank and piping, during truck unloading, are captured by the Methanol Vapor Recovery System (C502). Emissions not captured by the vapor recovery system are fugitive emissions (Z550). The catalytic conversion reaction is carried out with the aid of a catalyst, which consists of molybdenum and iron oxides. The process gas is passed through the catalyst, contained in a multiple tube unit called the converter. It both heats the air-methanol mixture to the reaction temperature in the upper part of the catalyst tube and removes the heat of the reaction in the lower part. The formalin gases, which leave the converter, are cooled in an after-cooler where low-pressure steam is produced. The cooled gases enter an absorber where the formaldehyde is absorbed into water to produce up to a 53.0% Formaldehyde solution. In order to reach desired production rates, it is necessary to operate the plant under recycle conditions. Part of the gas mixture leaving the absorber stack is returned to a recycle tank where it is mixed with fresh air, at a controlled rate, to maintain oxygen content of 10 — 10.5% by volume. The remaining unused gas mixture goes to the Natural Gas fired (FML541) Catalytic Oxidizer (C501) where it is preheated and oxidized, in the presence of a catalyst, to harmless byproducts. These byproducts are released to the atmosphere through the Formaldehyde Incinerator Stack (5501).

Notes: Shut down in 2024. Documentation is incomplete.

Plant Types: Chemical and Specialty Chemical

Subtypes: Sodium Meta Bi-Sulfite Plant

Capacity: 15000 metric tons/yr

Raw Materials: Sulfur, Soda Ash

NEW From Cancelled Project!

Design Capacity:

• Sodium Metabisulfite Food Grade 15,000 MT/year
• Magnesium sulfate heptahydrate (MgSO4•7H2O) ≥95% purity ~1800 MT/year by product

Production Process Description

Process Characteristics

Using “excess air + solid sulfur” incineration process, the obtained sulfur dioxide gas concentration is about 12%~15%. Control the reasonable sulfur incineration temperature to ensure complete combustion of sulfur.

Using our proprietary technology for solid sulfur feed system, so that the sulfur incinerator temperature is stable, the sublimation sulfur is less in the flue gas. The plant is designed with negative pressure air blowing system, which has good operating environment, and sulfur yield is high.

Using automatic continuous discharging centrifuge, which is a continuous automatic operation, is safe and reliable, saving manpower.

The low concentration sulfuric acid waste liquid is used for production of Magnesium Sulfate products, so the plant has no waste liquid effluent discharge.

Perfect design of exhaust gas treatment. In the waste gas, SO2 concentration is less than 50mg/Nm3（SO2≤50mg/Nm3）.

Process Description

Air Compression and purification section

The air is filtration by air filter, and then is feed into air compressor, the air is compressed by air compressor and is feed into sulfur incinerator, the air burning with solid sulfur and obtain sulfur dioxide gas (SO2).

Sulfur incineration section

The solid sulfur is fed into sulfur incinerator by solid sulfur feeder, the solid sulfur is mixed with air and burning in the sulfur incinerator, and obtain sulfur dioxide gas (SO2), and release a lot of heat at the same time.

S + O2 = SO2 + Q

A part of sulfur dioxide reaction with oxygen and get sulfur trioxide.

2SO2 + O2 = 2SO3 -Q

Sulfur dioxide gas purification section

After burning, the hot flue gas is enter the flue gas buffer tank, and then is enter the cooling pipe, using circulating water to cooling the flue gas, the flue gas is cooling to 50~60℃ and then is feed into flue gas scrubber, through bubble washing to remove SO3 of flue gas. After the flue gas scrubber, using stage of separator to separation and removal of entrained droplets of flue gas. The scrubbing obtained dilute sulfuric acid is collected and used to produce Magnesium Sulfate by-product. The purified sulfur dioxide gas is sent (through pipeline) to sodium Metabisulfite synthesis section.

SO3 + H2O = H2SO4

Soda ash solution batching and sodium Metabisulfite synthesis section

Put solid soda ash (Na2CO3) into the soda ash batching kettle of sodium Metabisulfite synthesis section, add water and mother liquor (the filter liquor) of sodium Metabisulfite centrifuge and mixed into suspension, and then pumping the suspension into sodium Metabisulfite synthesis reactors, and feeds clean sulfur dioxide gas successively into the first stage, second stage and third stage synthesis reactors, after synthesis reaction, get sodium Metabisulfite suspension in the first stage synthesis reactor. The reaction tail gas is discharged from the third stage synthesis reactor, and is lead into the scrubbing tower for treatment.

Na2CO3 + 2SO2 = Na2S2O5 + CO2

Centrifuge & drying process

The Sodium Metabisulfite suspension is discharged from the first stage synthesis reactor and stored into slurry tank, and then from the slurry tank feed into centrifugal, through centrifugal separation and get wet solid Sodium Metabisulfite, which is content 3~5% water, feed the wet Sodium Metabisulfite into hot air dryer (airflow drier), and through cyclone separators, get Sodium Metabisulfite products. The filtrate is collected into the acid mother liquor tank, reused for soda ash solution batching kettle. The drying use hot air comes from the waste heat recovery jacket of sulfur incinerator. After drying, the tail gas is send into tail gas absorption column.

Tail gas treatment section

The tail gas countercurrent contact with soda ash solution, the sulfur dioxide gas in the tail gas was absorbed by soda ash solution, the tail gas was cleaned and emptying **(SO2≤50mg/Nm3)**. The absorption solution reused for soda ash solution batching.

Liquid waste treatment section

In the flue gas scrubber of sulfite dioxide purification section, the sulfite trioxide is absorbed by water and get concentration of 50~60% dilute sulfuric acid liquid waste, which is used to produce Magnesium sulfate heptahydrate by-products.

MgO + H2SO4 + 6H2O = MgSO4·7H2O

Plant Types: Chemical and Specialty Chemical

Subtypes: Fermentation Plant

Capacity: 40 mmgpy

Solid Separations:

Saccharified mash is then sent to the sugar clarification system. Paddle screens and centrifuges are used to filter out spent grain solids and wash sugar from the spent grains in a 3-stage counter current wash. Liquid sugar is pumped to 121,000-gallon SS storage tanks and solids are sent to rotary drum dyer for final drying.

Fermentation begins with bacterial propagation through a sanitary seed train consisting of two 44 gallon seed tanks, two 2000 gallon seed tanks and finally a 28,500 gallon seed tank before being mixed with liquid sugar in four 285,000 gallon fermenters. During fermentation broth is continuously stripped from the fermenters and passed through an Alfa Laval ultra filtration skid separating the biologics from the fermentation broth which are sent back to fermenter. Filtrate is pumped to the distillation unit where Butanol and Acetone are distilled off through a series of distillation columns and passed through a 3-effect evaporation system before heading to final product storage

Other notable features include an on-site wastewater treatment facility rated for 157,000 gallons per day and full product testing and microbiological laboratory.

Other potential uses included: high protein feed products, renewable biochemicals, single cell proteins, sustainable aviation fuel, food grade organic acids and industrial/GNS alcohols.

Plant Types: Chemical and Specialty Chemical, Pharmaceutical, Fertilizer and Agrochemical

Subtypes: API

Capacity: ~1,200m3 Total Reactor Capacity

190 Acre API Manufacturing Plant ComplexGrimsby, England, UK

This world-class, fully integrated API manufacturing site, formerly operated by Novartis, includes over 1,200m3 of total reactor vessel capacity across three distinct production buildings, available for sale or lease as a whole site or individual buildings for operation in-place. The facility could be utilized for pharmaceutical and animal health API manufacturing or repurposed for specialty/fine chemical manufacturing, flavors and fragrances, or agrochemicals.

Take the 360° Tour:

Building 110, Former Novartis Site, Grimsby

Building 150, Former Novartis Site, Grimsby

VIDEO: https://www.youtube.com/watch?v=AUWUHnAyWos&list=PLRlhdb05DXKR4eyHsLOkB6NzTyh2R4YCE

The site is located adjacent to the river Humber and between the Immingham and Grimsby port facilities, less than 5 minutes from downtown Grimsby, 25 minutes from Humberside Airport, 2.5 hours from Manchester Airport, 3.5 hours from London Heathrow.

Inside the fenceline is approximately 100 acres, with significant development land and infrastructure available inside the fence. There is an additional approximately 90 acres of agricultural land outside the fenceline.

Facility has the capabilities to perform various chemical synthesis, including hydrogenation, Grignard/Friedel-Crafts Reactions, Azide, and Tin Chemistries.

Building 110: Multi-product, Multi-purpose facility (ca. 1993)

• Total Reactor Capacity: 140m3
• Hydrogenation, Crystallization, Centrifugation, Nutsche Filters, Short-Path Distillation, Milling/Blending, Solvent Recovery
• Overhead manifolds and flex piping for production flexibility
• Glass Lined, Hastelloy, and Stainless Steel Equipment

Building 120: Mixed High Volume, Multi-Purpose Facility (ca. 1994/2007)

• Total Reactor Capacity: ~450m3
• 3 dedicated, 3 multi-purpose lines-Hydrogenation, Crystallization, Sublimation, Nutsche Filters, Paddle Dryers, Milling/Blending, Solvent Recovery
• Glass Lined, Hastelloy, and Stainless Steel Equipment

Building 150: High Volume, Multi-Product Facility (ca. 2004/2007)

• 4 Dedicated Process Trains
• Total Reactor Capacity: ~550m3
• Hydrogenation, Crystallization, Centrifugation, Drying, Milling/Blending, Solvent Recovery
• Glass Lined, Hastelloy, and Stainless Steel Equipment

Each building has its own dedicated solvent storage and recovery, in-process lab spaces, workshops, and offices.

Site Utilities:

• 2400m3/day Wastewater (Effluent) Treatment Facility
• 2x4.2MVA grid electricity
• 8000m3/h compressed air
• 3000m3/h nitrogen (by pipeline)
• 4x8MW cooling water capacity
• Towns Water potable supply & 400m3/day borehole (well) water for process cooling
• Previously, there was a CHP plant which has been removed and steam boilers will need to be added to support operations.

The production buildings are supported by the following non-production infrastructure:

• Security Facility
• Administrative Office Building
• 4600m2 (50,000ft2) Engineering Workshop and Offices to support major projects, MRO stores, fabrication, equipment and instrument maintenance, etc.
• 3700m2 (40,000ft2) Lab/R&D Space with sample retain storage facility
• Restaurant/Canteen Building
• Medical Facility/Employee Welfare
• Sports Club and Fields
• Capital Good Stores
• Changeover Warehouses

Warehousing:

• Raw Materials & Intermediate Storage: 3000 pallets
• Solvent (flammable & hazardous) Warehouse: 1930 pallets
• Packaging Storage: 500 pallets
• Finished Goods Storage: 750 pallets
• Cold Storage (-8 deg. C): 320 pallets
• Classified area for sampling / repacking of raw materials: 40 pallets
• Waste Storage: 1200 pallets

The facility was not used in production of of plant/animal extracts, fermentation, penicilin, beta-lactams, steroids, hormonals, or cytoxic compounds.

Plant Types: Fertilizer and Agrochemical, Chemical and Specialty Chemical

Subtypes: Nitric Acid Plant (HNO3)

Capacity: 550 STPD

Capacity:  550 short tons per day

Pressure:  Single Medium Pressure 65-70 psig

% of Nitric:  61%

Spare Parts: spare 8000hp motor / Spare compressor rotating assembly /Blade carrier and various compressor spare parts on site.

Plant Types: Chemical and Specialty Chemical

Subtypes: Sorbitan Plant

Capacity: 9,500 metric tons/year

• Finished sorbitan ester manufacturing capacity is approximately 9,500 metric tons/year.  This ester plant was constructed in the 1980's and shut down in 2009.

• There are no technology licensing issues.

• Esterification process control systems and programming are completely up-to-date and are for sale with the facility.  They are Siemens PCS7 and Fisher-Provox systems.

• Some spare parts for critical equipment are available with the sale.

• Documentation is available and is primarily electronic.

  Click Here to View a Brief Overview on the Sorbitan Plant

Plant Types: Chemical and Specialty Chemical

Subtypes: Phenol Plant

Capacity: 16 mt/hr

This dual-distillation column system was designed to separate and purify up to 16 mt/hr of phenol from a complex mixture of hydrocarbons and water.  The system consists of two distillation columns with reboilers, recirculation pumps, and multiple overhead condensers with vacuum jets.  The previous service was for the recovery phenol from a stream which was 63% phenol in water, Bisphenol-A, isomers, and tars.

Subsytem from the Complete Bisphenol-A (BPA) Plant, stock #600363

Plant Types: Chemical and Specialty Chemical

Subtypes: Methyl Amines Plant

Capacity: 46,000 metric tons per year

• This is the largest unit in a highly integrated facility that sits on 57 acres of land, two-thirds of which are undeveloped.  The facility produces Methyl Amines for use in Higher Amines and Amine Derivatives.

• The Methyl Amines plant has a capacity of 46,000 metric tons per year mixed amines production.

The following products are produced from the reaction of methanol and ammonia:

• Monomethylamine (MMA)

• Dimethylamine (DMA)

• Trimethylamine (TMA)

Plant Types: Chemical and Specialty Chemical

Subtypes: Melamine Plant

Capacity: 51 ktpa

Raw Materials: Urea

In melamine synthesis, urea is converted to melamine at approx. 400 °c and approx. 2 bar at a Si02 I Al203 catalyst in a synthesis line. As a by-product, ammonia and carbon dioxide are produced in stoichiometric quantities in the process gas.

Hydrogen cyanide as well as multinuclear condensation products of melamine and (partially) hydrolyzed melamine derivatives are also produced in small quantities as secondary components. After separating the melamine from the process gas, it is fed via catalytic decomposers to minimize the minor components. The process gas is then fed to the process gas separation plant in U 024. In addition, a partial flow in the process gas processing can be processed into ammonium nitrate solution and delivered to external factories such as the field fertilizer factory or the nitric acid factory. These plants are not part of the melamine factory, but the exhaust gas flow is generated and must be supplied.

Liquid ammonia (approx. 11 bar) from the gas separation plant is supplied to the external urea factory, fed into the plant network or fed back into the melamine synthesis. The C02-containing residual gases from the process gas processing plant U 028 and the process gas separation plant U 024 are emitted via the outlets
