2.6 m² (28 ft²) Carbon Steel Shell and Tube Heat Exchanger For Sale - IPP# 205691

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas

Condition: Used

Orientation: Vertical

Shell Pressure: 12.1 bar (175 psi)

Tubes rated -20f @ FV/150 psi, Shell rated -20f @ FV/175 psi

Shell Temperature: 190.6 °C (375 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Vacuum: Yes.

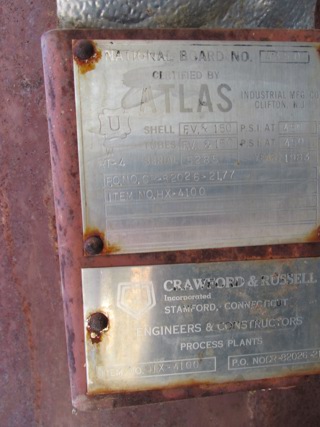

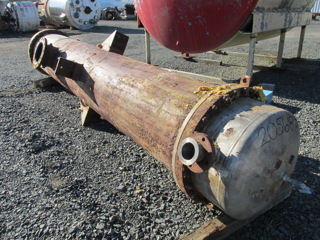

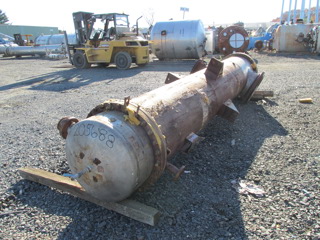

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas

Condition: Used

Heat Transfer Surface Area: 63.8 m² (687 ft²)

Orientation: Vertical

Alloy 20 Heads/Carpenter 20 Tubes/ Alloy 20 tube sheet/ CS shell, TEMA Type N.E.M Shell has (4) 3/8" thick baffles.

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tubesheet Material: Alloy 20. Vacuum: Yes. Shell Diameter: 660.4 mm (26 in). Head Material: Alloy 20. Length: 4,318 mm (170 in). Tube Type: Straight Tube. Tube Number: 268. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,010 mm (118.5 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Openings: Top head (1) 20"; Shell - (1) 2", (1) 8"; Bottom Head - (1) 3" - Vent and drain: Two 1/2" vent & drain.

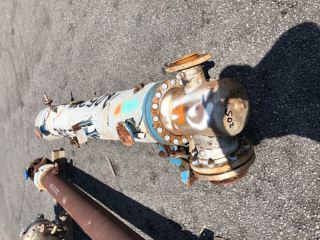

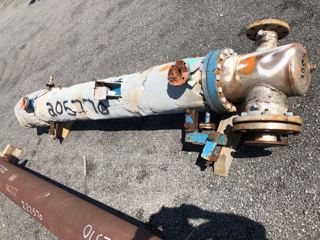

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 10.9 m² (117 ft²)

Orientation: Vertical

TEMA type BEM

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 273.1 mm (10.8 in). Head Material: Stainless Steel 316. Length: 2,413 mm (95 in). Tube Type: Straight Tube. Tube Number: 76. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,413 mm (95 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzles: Two 8" nozzles, Two 2" nozzles, One 4" vent, Two 0.75" drains .

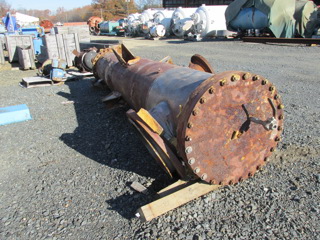

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Heatran

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 1,050 m² (11,300 ft²)

Orientation: Horizontal

• TEMA type: DED

Shell Pressure: 179.3 bar (2,600 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Carbon Steel. Tube Pressure: 179.3 bar (2,600 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,041 mm (41 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 1,850. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 11,582 mm (456 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: (2) 16" - Tube nozzles: (2) 16".
